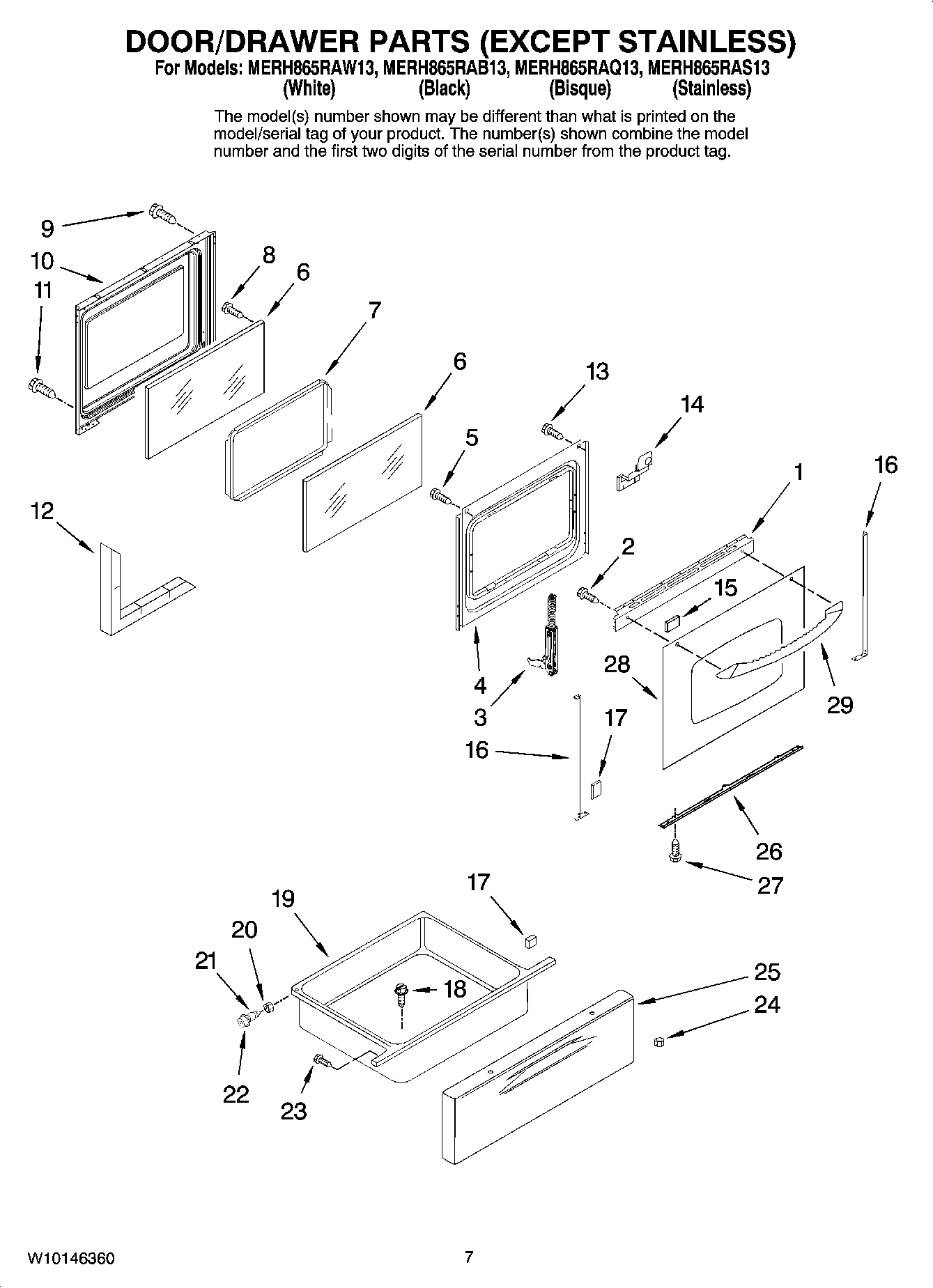

MERH865RAS13 04 – DOOR/DRAWER PARTS (EXCEPT STAINLESS)

Products

PositionProduct
1MAY W10144691
1MAY W10144690
1Trim, Door Top (Black)
2WP98008545 Whirlpool Screw
2WP98008544 Whirlpool Screw Assembly
2WP74009541 Whirlpool Screw Assembly
374010546 Whirlpool Range Oven Door Hinge
4Retainer, Side
674003645 Whirlpool Range Oven Door Inner Glass
7FRAME, GLASS
8MAY Y7061899
9WP74006515 Whirlpool Washer Screw
10MAY 74008926
11MAY Y7061895
12INSULATION, OVEN DOOR
13WPY706189 Whirlpool Stove Screw
14BRACKET, DOOR HANDLE (LT)
14BRACKET, DOOR HANDLE (RT)
15WP74004224 Whirlpool Tape
16MAY 74010560
16TRIM, SIDE (BSQ)
16MAY 74010561
17WP74009025 Whirlpool Double Sided Tape
17WP74009014 Whirlpool Double Tape
18WP7101P072-60 Whirlpool Screw
19DRAWER, STORAGE
20WP488130 Whirlpool Air Conditioner Nut
21WP74005546 Whirlpool RU Spacer
22SHAFT, STORAGE DRAWER ROLLER
23SCREW
24WPW10131078 Whirlpool Nut Assembly
25MAY 74008756
25Panel, Drawer (Black)
25Panel, Drawer (White)
26TRIM, BOTTOM (BSQ)
26WP3608F092-71 Whirlpool Bottom Trim
26MAY 74008745
27SCREW (10-24X5/16-NI)
28Glass, Door (Black (Order Item 15 When Replacing Door Glass))
28GLASS, DOOR (BSQ)
28Glass, Door (White)
29HANDLE, DOOR (BSQ)
2974011777 Whirlpool Range Oven Door Handle
29WP74011675 Whirlpool Door Handle
