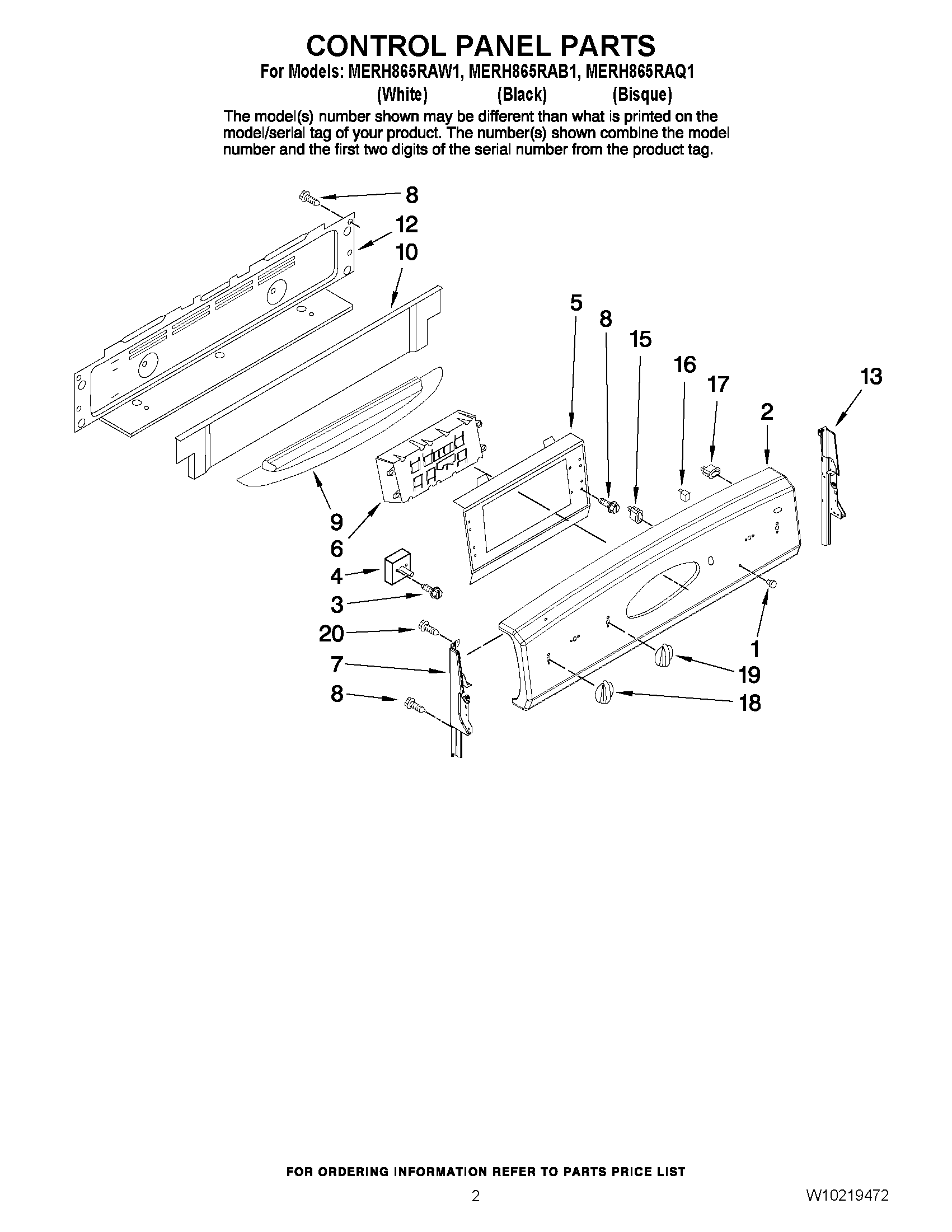

MERH865RAW1 02 – CONTROL PANEL PARTSadmin2025-04-26T08:54:58+00:00MERH865RAW1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY 3196068 |
| 2 | MAY 2602D363-88 |
| 2 | MAY 2602D363-81 |
| 2 | MAY 2602D363-09 |
| 3 | SCREW |
| 4 | MAY 7450P094-60 |
| 4 | Switch, Infinte (6`` (RR/LR)(2)) |
| 4 | SWITCH, INFINITE (LEFT REAR & RIGHT REAR) |
| 4 | SWITCH, INFINITE (LR,RR (2)) |
| 5 | MAY 3801F844-51 |
| 6 | MAY W10141433 |
| 6 | Control W/Overlay (Bisque) |
| 6 | MAY W10141425 |
| 7 | MAY 3807F703-70 |
| 7 | MAY 3807F703-71 |
| 7 | End Cap, Left (Bisque) |
| 8 | MAY 4159450 |
| 9 | Shield, Heat Visor (Bisque) |
| 9 | MAY 3604F382-09 |
| 9 | MAY 3604F382-81 |
| 10 | MAY 3604F381-19 |
| 12 | MAY 4005F803-51 |
| 13 | MAY 3807F702-70 |
| 13 | MAY 3807F702-71 |
| 13 | End Cap, Right (Bisque) |
| 15 | MAY 7403P756-60 |
| 15 | MAY 7403P757-60 |
| 15 | MAY 7403P758-60 |
| 16 | MAY 7407P136-60 |
| 17 | SWITCH, ROCKER (WHITE) |
| 17 | Switch, Rocker |
| 17 | SWITCH, ROCKER (BISQUE) |
| 18 | Knob (4) (Bisque/Chrome) |
| 18 | Knob (4) (Black/Chrome) |
| 19 | MAY 7737P355-60 |
| 19 | MAY 7737P390-60 |
| 19 | Knob, Warm (1) (White/Chrome) |
| 20 | Screw (2) (Bisque) |
| 20 | Screw (2) (Black) |
| 20 | Screw (2) (White) |
