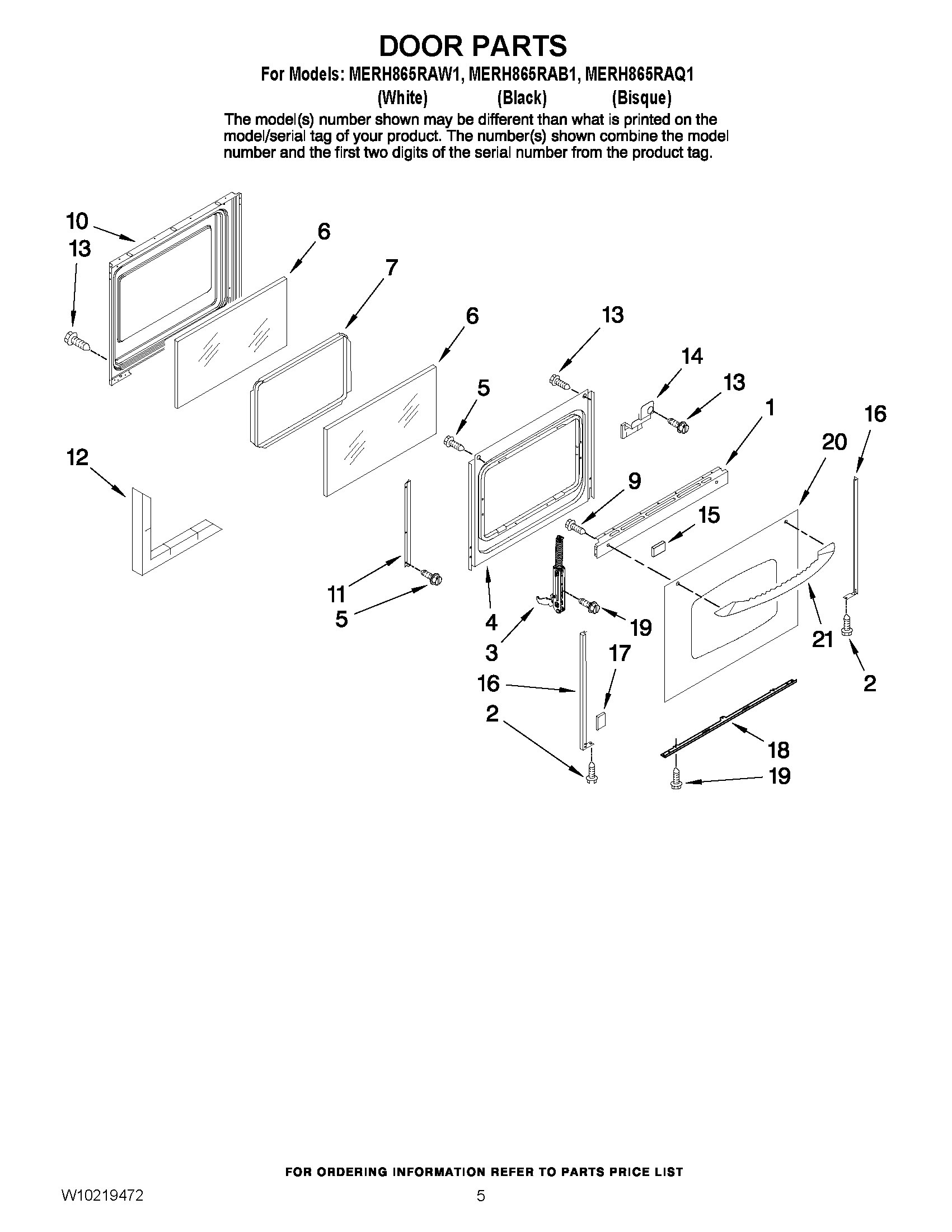

MERH865RAW1 04 – DOOR PARTS
Written by
in
MERH865RAW1 04 – DOOR PARTS
Products
Position
Product
1
MAY 3608F110-70
1
MAY 3608F140-71
1
MAY 3608F140-78
2
Screw (2) (Black)
2
SCREW, HANDLE (BISQUE)
2
Screw, Handle (White)
3
MAY 7106P124-60
4
Retainer, Side
6
Glass, Inner
9
MAY 7101P681-60
10
MAY 2402W297-19
11
BRACKET, INNER GLASS
12
MAY 7002P246-60
13
SCREW
14
MAY 3801P857-45
14
MAY 3801P858-45
15
Tape (White)
16
MAY 3608F126-70
16
MAY 3608F126-71
16
Trim, Door Side (Bisque)
17
MAY 8270P193-60
17
Tape, Double Sided (White)
18
TRIM, DOOR BOTTOM (BISQUE)
18
MAY 3608F092-71
18
MAY 3608F092-70
19
SCREW (10-24X5/16-NI)
20
GLASS, DOOR (WHITE)
20
MAY 7902P782-60
20
MAY 7902P791-60
21
MAY 7701P522-60
21
MAY 7701P523-60
21
MAY 7701P524-60
←
