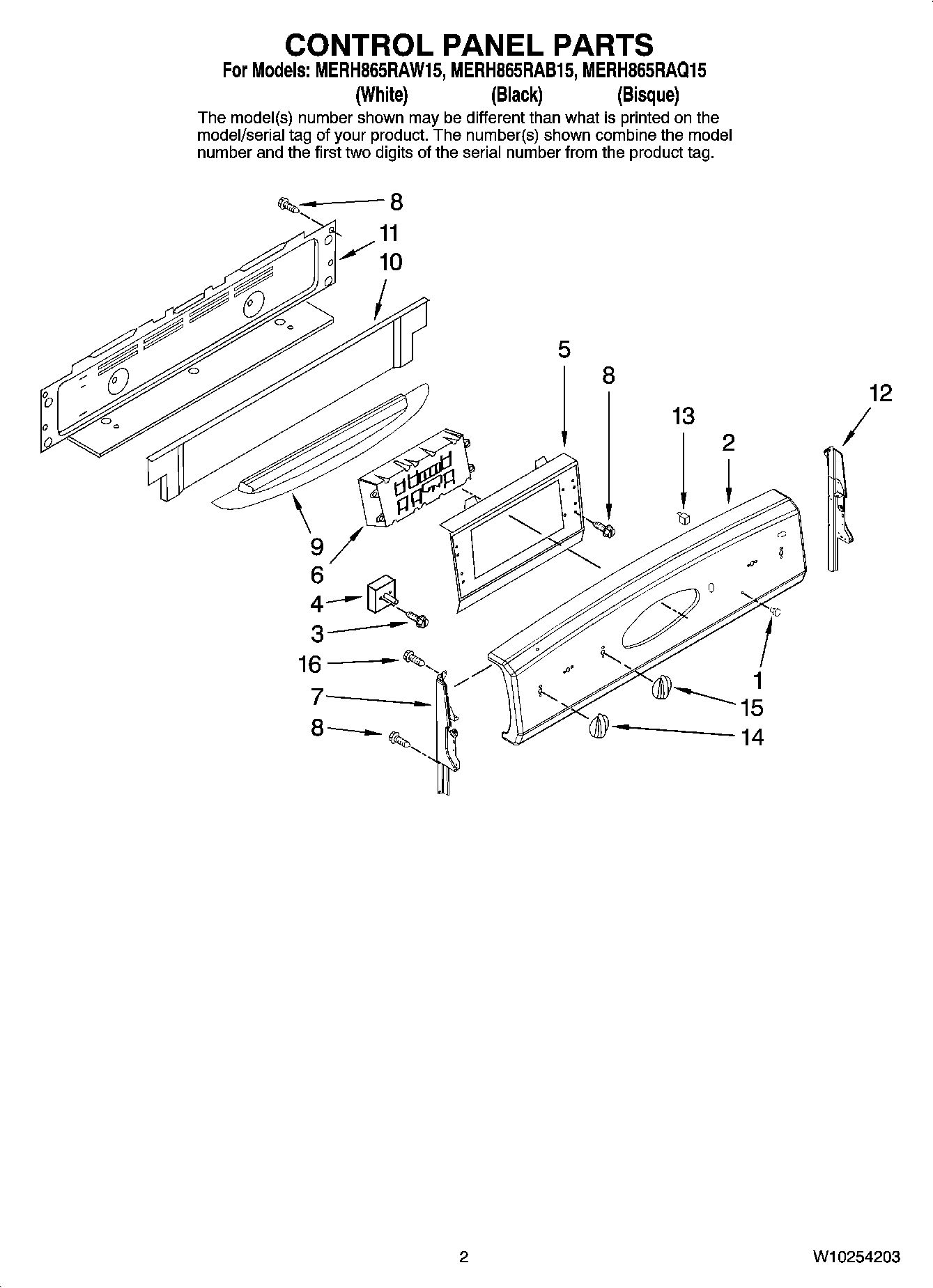

MERH865RAW15 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WP7730P011-60 Whirlpool Indicator Lens
2	MAY W10129435
2	MAY W10129625
2	MAY W10129626
3	SCREW
4	Switch, Infinte (Dual (RF) (1))
4	WP74008940 Whirlpool Infinite Switch
4	WP7403P239-60 Whirlpool Oven Switch
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	BRACKET, CLOCK
6	Control W/Overlay (Bisque)
6	MAY W10141425
6	MAY W10141433
7	END CAP (LT-BSQ)
7	End Cap (Left Black)
7	End Cap (Left White)
8	WP74003976 Whirlpool Screw
9	MAY 74009202
9	MAY 74009203
9	SHIELD, HEAT VISOR (BSQ)
10	MAY 74009444
11	COVER, REAR WIRE
12	End Cap (Right White)
12	END CAP (RT-BSQ)
12	End Cap (Right Black)
13	WP74004153 Whirlpool Indicator Light
14	MAY 74009189
14	W11197495 Whirlpool Knob
15	MAY 74011358
15	MAY W10144686
15	MAY W10144687
16	Screw (2) (White)
16	WP98008545 Whirlpool Screw
16	Screw (2) (Bisque)
