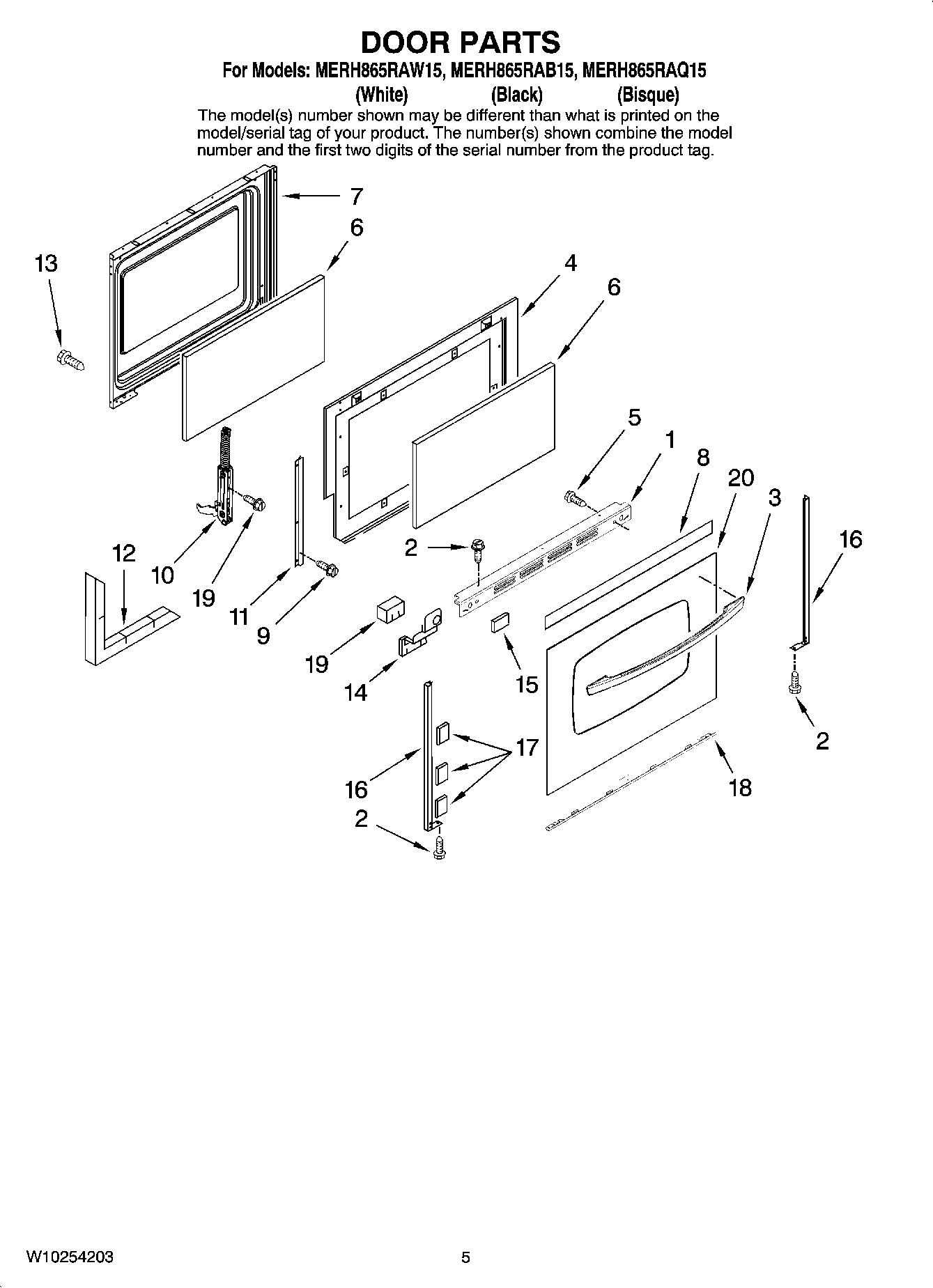

MERH865RAW15 04 – DOOR PARTS

MERH865RAW15 04 – DOOR PARTS

Written by

in

MERH865RAW15 04 – DOOR PARTS

Products

PositionProduct
1MAY 3608F140-70
1MAY W10144690
1MAY 3608F140-78
2WP74009541 Whirlpool Screw Assembly
2WP98008544 Whirlpool Screw Assembly
2WP98008545 Whirlpool Screw
3HANDLE, DOOR (BSQ)
3WP74011675 Whirlpool Door Handle
374011777 Whirlpool Range Oven Door Handle
4Retainer, Side
5WP74006515 Whirlpool Washer Screw
674003645 Whirlpool Range Oven Door Inner Glass
7MAY 74008926
8MAY 4870F005-60
9SCREW, 8 X 1/2
1074010546 Whirlpool Range Oven Door Hinge
113801F886-51 Whirlpool Mounting Bracket
12INSULATION, OVEN DOOR
13WPY706189 Whirlpool Stove Screw
14BRACKET, DOOR HANDLE (RT)
14BRACKET, DOOR HANDLE (LT)
15WP74004224 Whirlpool Tape
16MAY 74010561
16TRIM, SIDE (BSQ)
16MAY 74010560
17WP74009025 Whirlpool Double Sided Tape
17WP74009014 Whirlpool Double Tape
18WP3608F092-71 Whirlpool Bottom Trim
18TRIM, BOTTOM (BSQ)
18TRIM, BOTTOM (BLK)
19SCREW (10-24X5/16-NI)
20Glass, Door (White)
20Glass, Door (Bisque)
20Glass, Door (Black (Order Item 15 When Replacing Door Glass))
