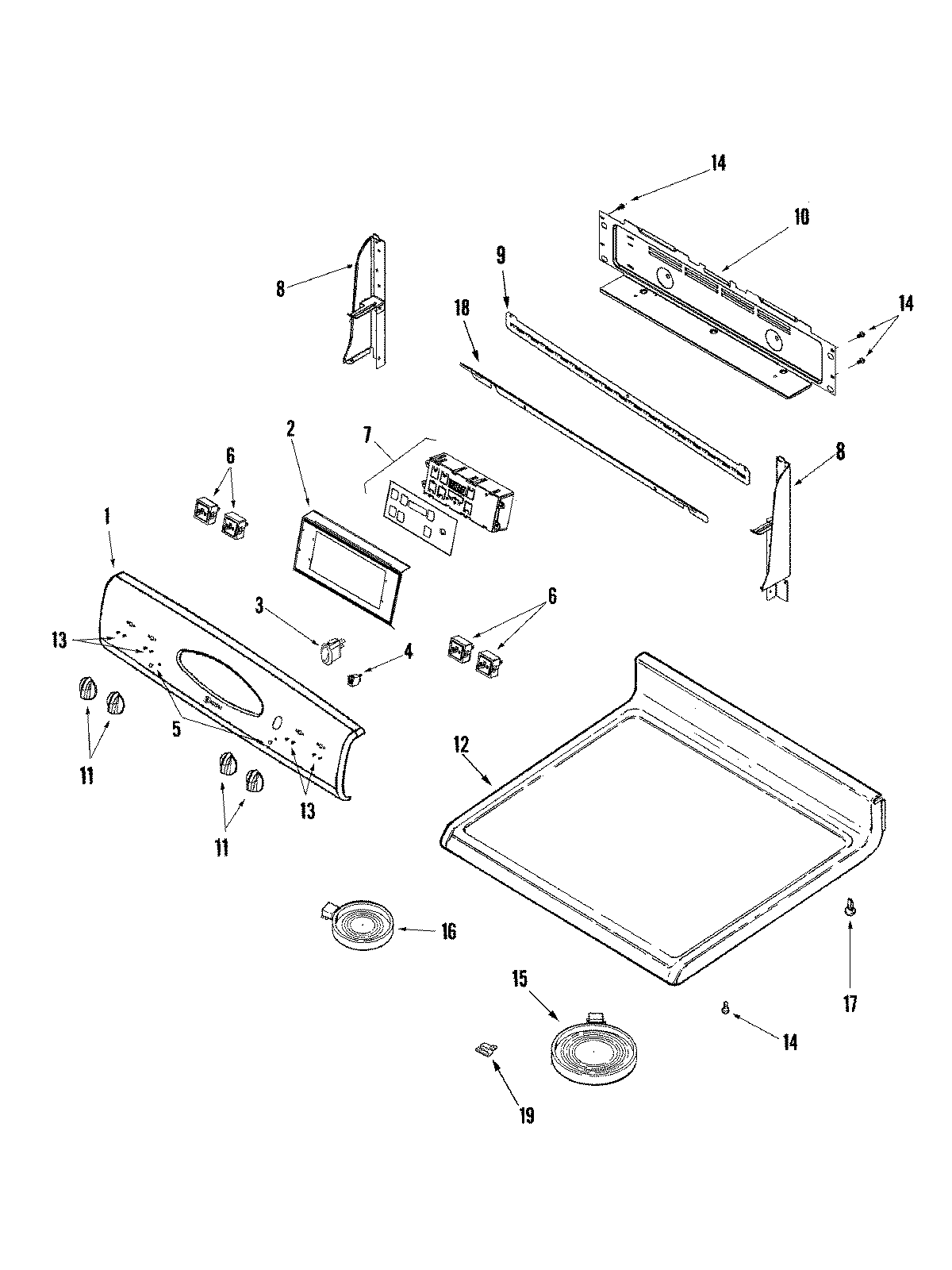

MERL752BAB 02 – CONTROL PANEL/TOP ASSEMBLY

MERL752BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MERL752BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011095
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6MAY 74011102
75701M760-60 Whirlpool Electronic Control Board
8WP98008545 Whirlpool Screw
8MAY 74010201
8MAY 74010202
9MAY 74009701
10COVER, REAR WIRE
12MAY 74011103
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009978
18WP90767 Whirlpool Screw
198004P093-60 Whirlpool Support C
