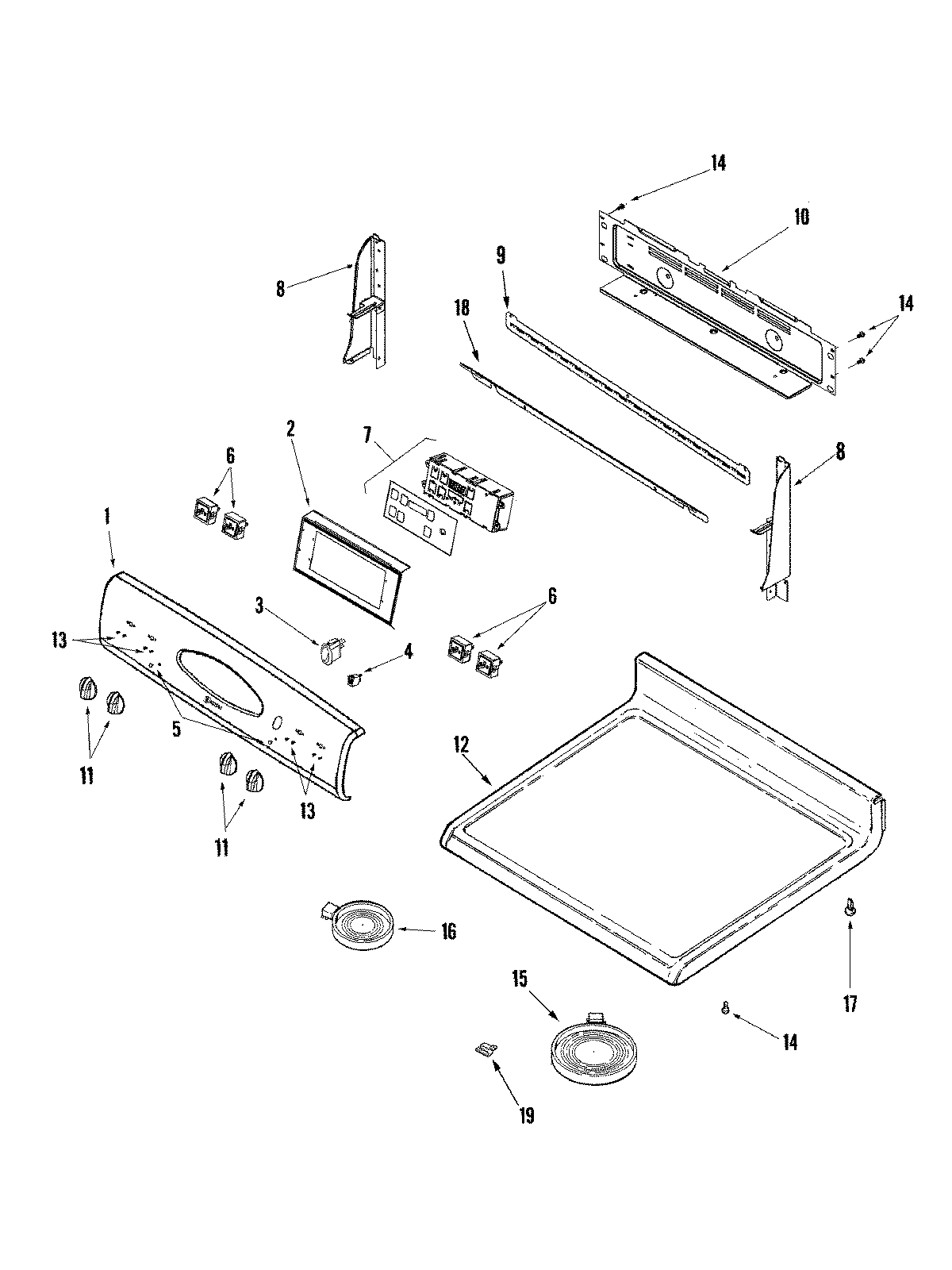

MERL752BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MERL752BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MERL752BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011097
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6MAY 74011102
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
75701M760-60 Whirlpool Electronic Control Board
8MAY 74010712
8MAY 74010714
8WP74009541 Whirlpool Screw Assembly
9MAY 74009701
10COVER, REAR WIRE
11MAY 74009189
12MAY 74011105
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009978
18WP90767 Whirlpool Screw
198004P093-60 Whirlpool Support C
