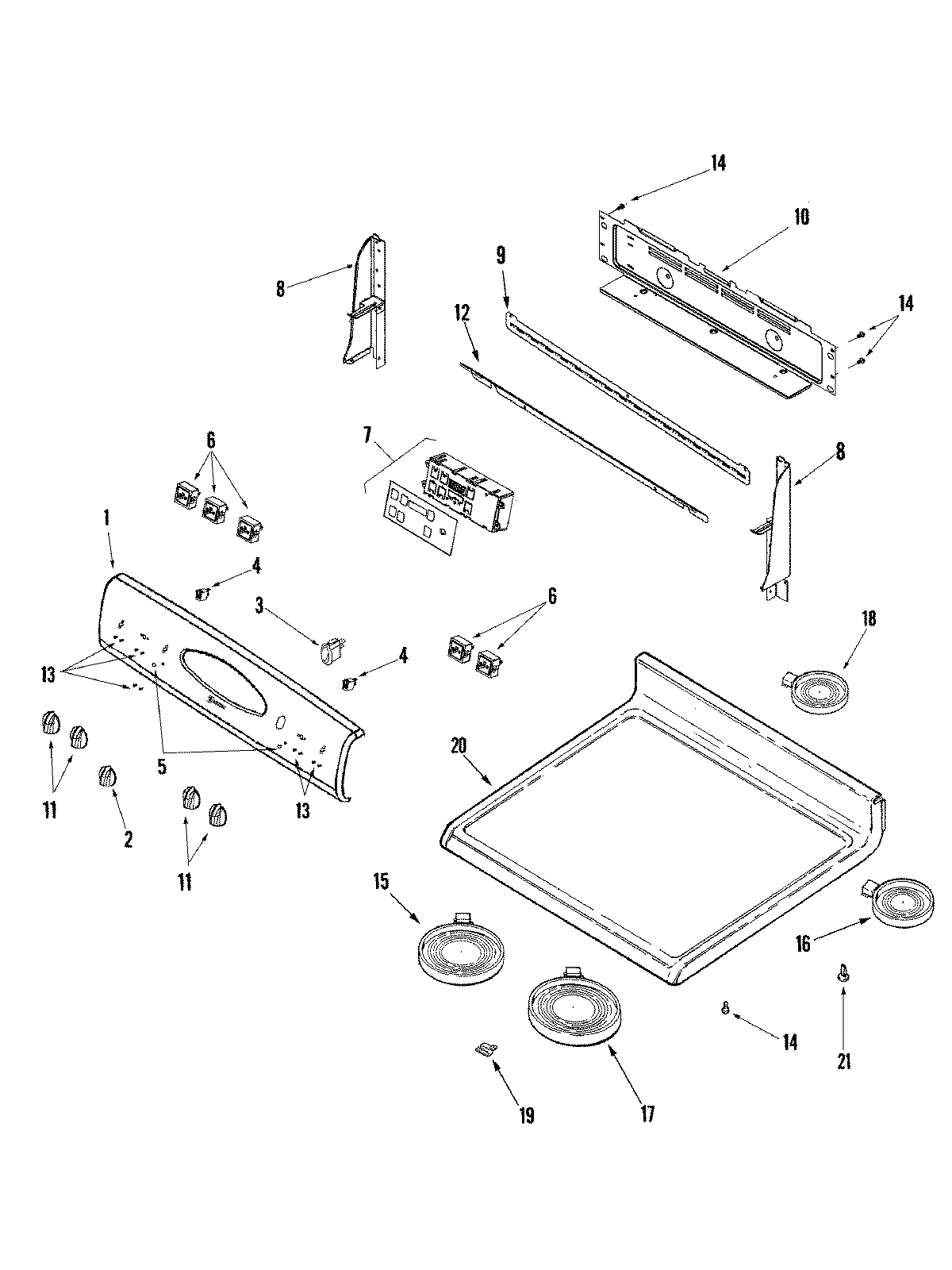

MERL753BAS 02 – CONTROL PANEL/TOP ASSEMBLY

MERL753BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MERL753BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011354
2MAY 74011358
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6MAY 74006589
6MAY 74011102
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
75701M760-60 Whirlpool Electronic Control Board
8MAY 74010201
8WP74003976 Whirlpool Screw
8MAY 74010202
8WP98008545 Whirlpool Screw
9MAY 74009701
10COVER, REAR WIRE
12WP90767 Whirlpool Screw
12MAY 74009978
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74009082
18MAY 74008571
198004P093-60 Whirlpool Support C
20MAY 74011359
21W11189172 Whirlpool Glide Drawer
