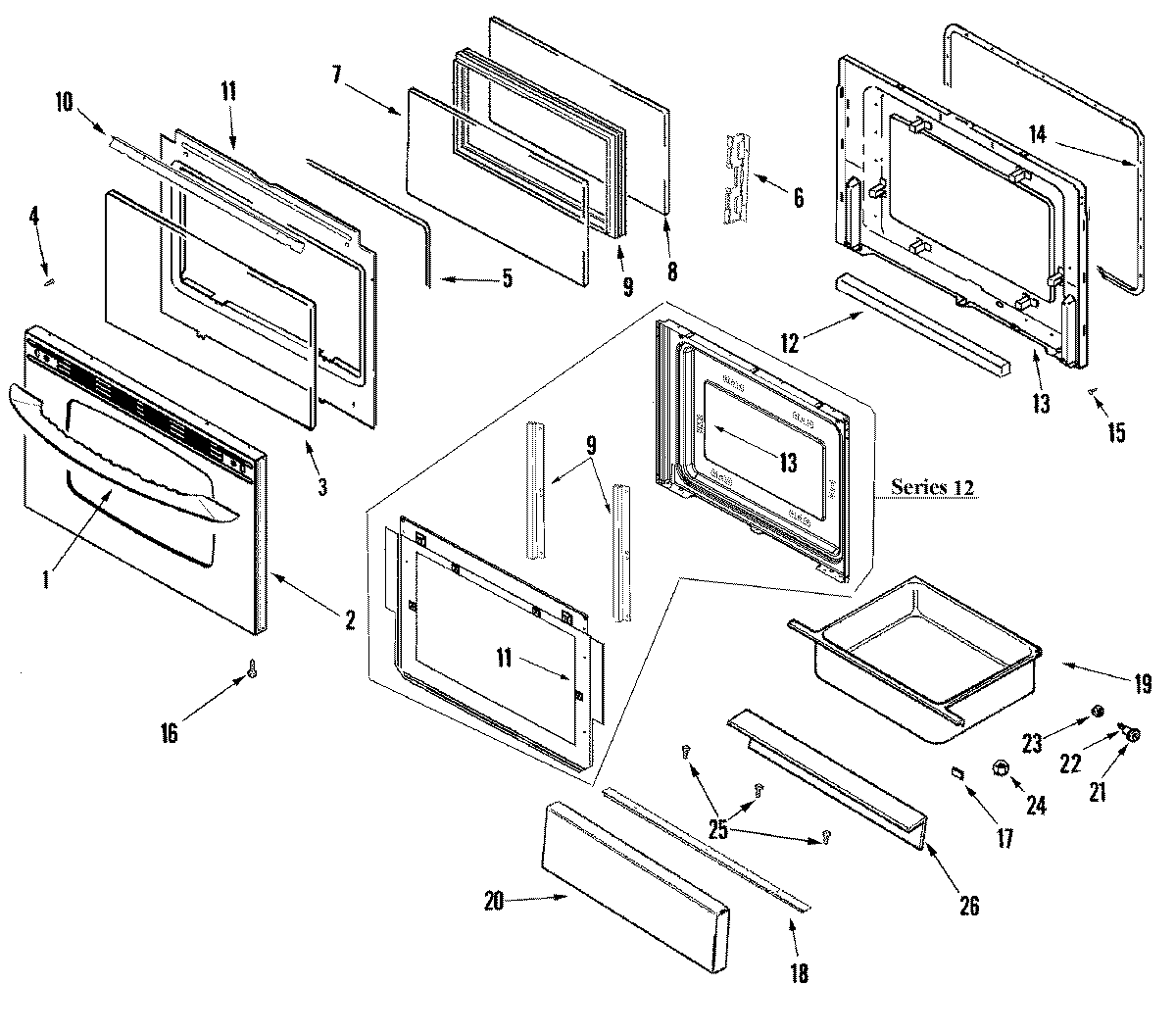

MERL753BAS 03 – DOOR/DRAWER (STL)admin2025-04-26T08:54:46+00:00MERL753BAS 03 – DOOR/DRAWER (STL)
Products
| Position | Product |
|---|
| 1 | 74011777 Whirlpool Range Oven Door Handle |
| 2 | MAY 74010232 |
| 2 | NUT, SNAP (ROUND-BLK) |
| 2 | MAY 74010233 |
| 3 | MAY 74010042 |
| 4 | WP74006515 Whirlpool Washer Screw |
| 4 | MAY 74011772 |
| 5 | WP74009029 Whirlpool Door Gasket |
| 6 | MAY 74010041 |
| 7 | GLASS, DOOR (INNER/COATED) |
| 8 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 9 | 3801F886-51 Whirlpool Mounting Bracket |
| 9 | SCREW, 8 X 1/2 |
| 9 | FRAME, GLASS |
| 10 | MAY 74010040 |
| 11 | MAY 74009502 |
| 11 | 3601F373-51 Whirlpool Baffle |
| 12 | INSULATION, OVEN DOOR |
| 13 | LINING, DOOR |
| 13 | MAY 74003642 |
| 14 | GASKT-DOOR OVEN |
| 17 | WP74005546 Whirlpool RU Spacer |
| 18 | HANDLE, DRAWER (STL) |
| 19 | SCREW |
| 19 | SPACER, RUBBER (BLK-SQUARE) |
| 19 | MAY 74008337 |
| 20 | MAY 74009842 |
| 21 | WP74004078 Whirlpool Door Roller |
| 22 | SHAFT, STORAGE DRAWER ROLLER |
| 23 | WP488130 Whirlpool Air Conditioner Nut |
| 24 | WPW10131078 Whirlpool Nut Assembly |
| 26 | LINING, DRAWER PANEL |
