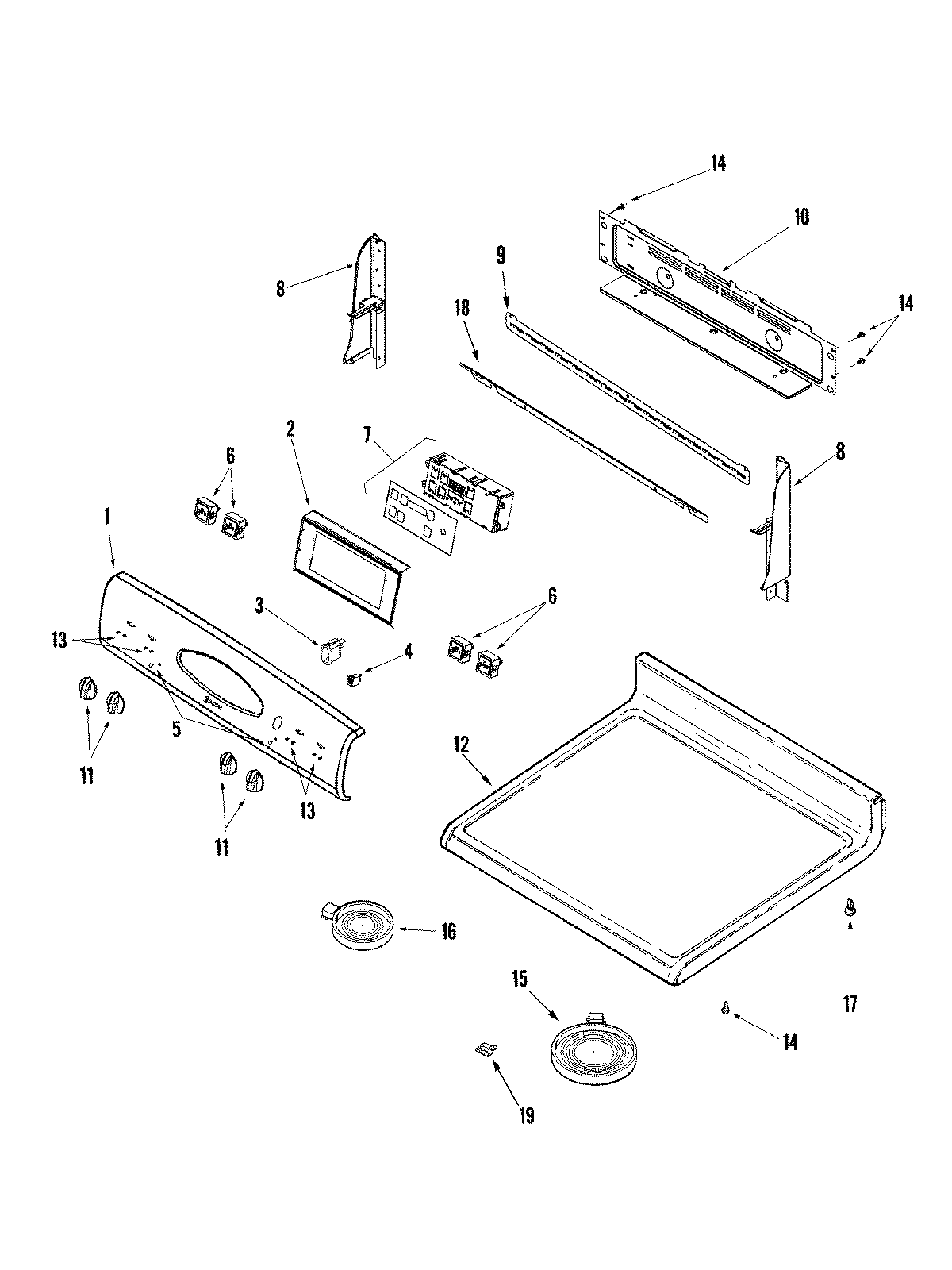

MERM752BAS 02 – CONTROL PANEL/TOP ASSEMBLY

MERM752BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MERM752BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009073
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
75701M760-60 Whirlpool Electronic Control Board
8WP98008545 Whirlpool Screw
8MAY 74010202
8MAY 74010201
9MAY 74009701
10COVER, REAR WIRE
12MAY 74011060
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009978
18WP90767 Whirlpool Screw
198004P093-60 Whirlpool Support C
