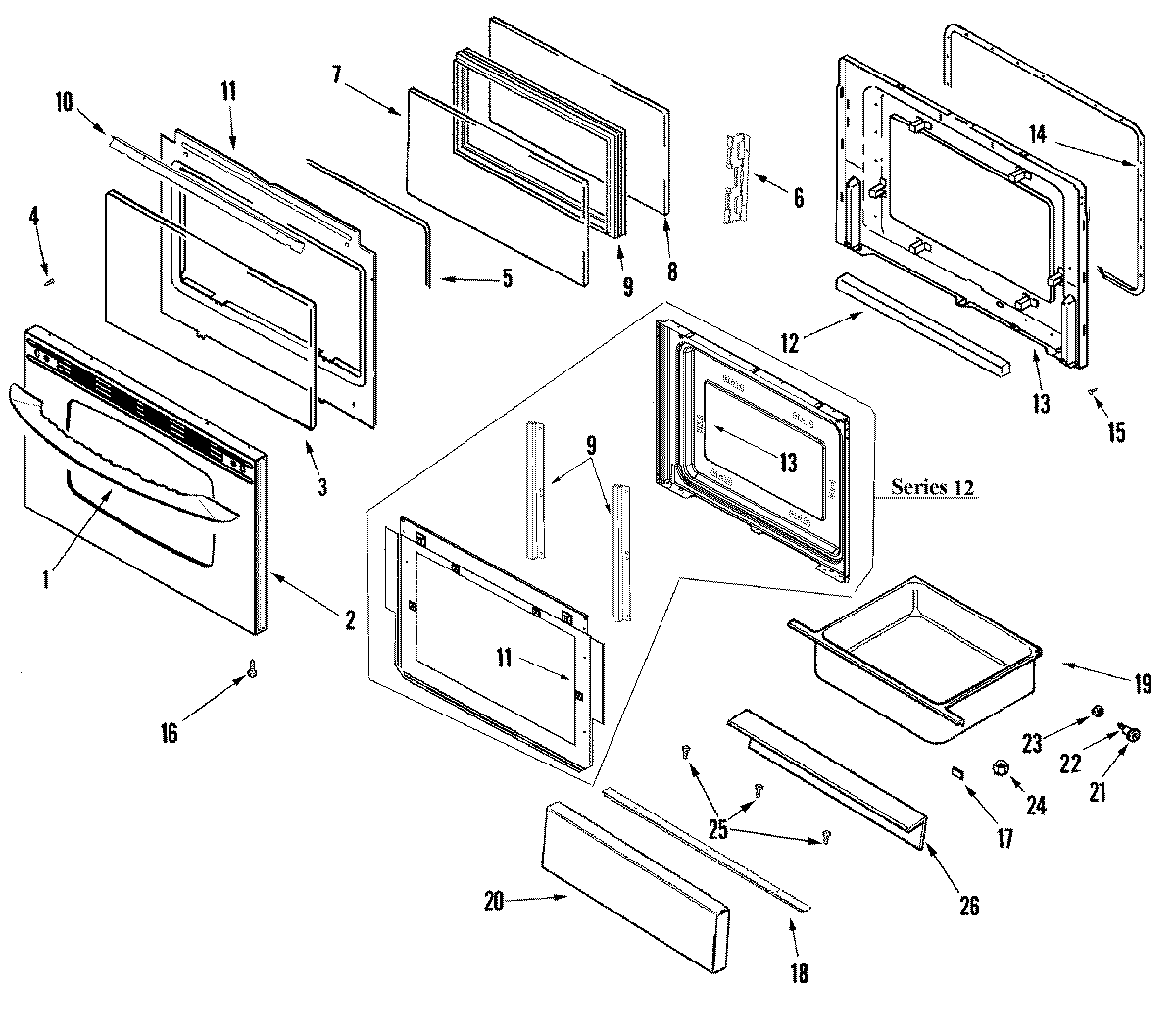

MERM752BAS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74010232
2NUT, SNAP (ROUND-BLK)
2MAY 74010233
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
4MAY 74011772
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
93801F886-51 Whirlpool Mounting Bracket
9SCREW, 8 X 1/2
9FRAME, GLASS
10MAY 74010040
11MAY 74009502
113601F373-51 Whirlpool Baffle
12INSULATION, OVEN DOOR
13LINING, DOOR
13MAY 74003642
14GASKT-DOOR OVEN
17WP74005546 Whirlpool RU Spacer
18HANDLE, DRAWER (STL)
19SCREW
19SPACER, RUBBER (BLK-SQUARE)
19MAY 74008337
20MAY 74009842
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
