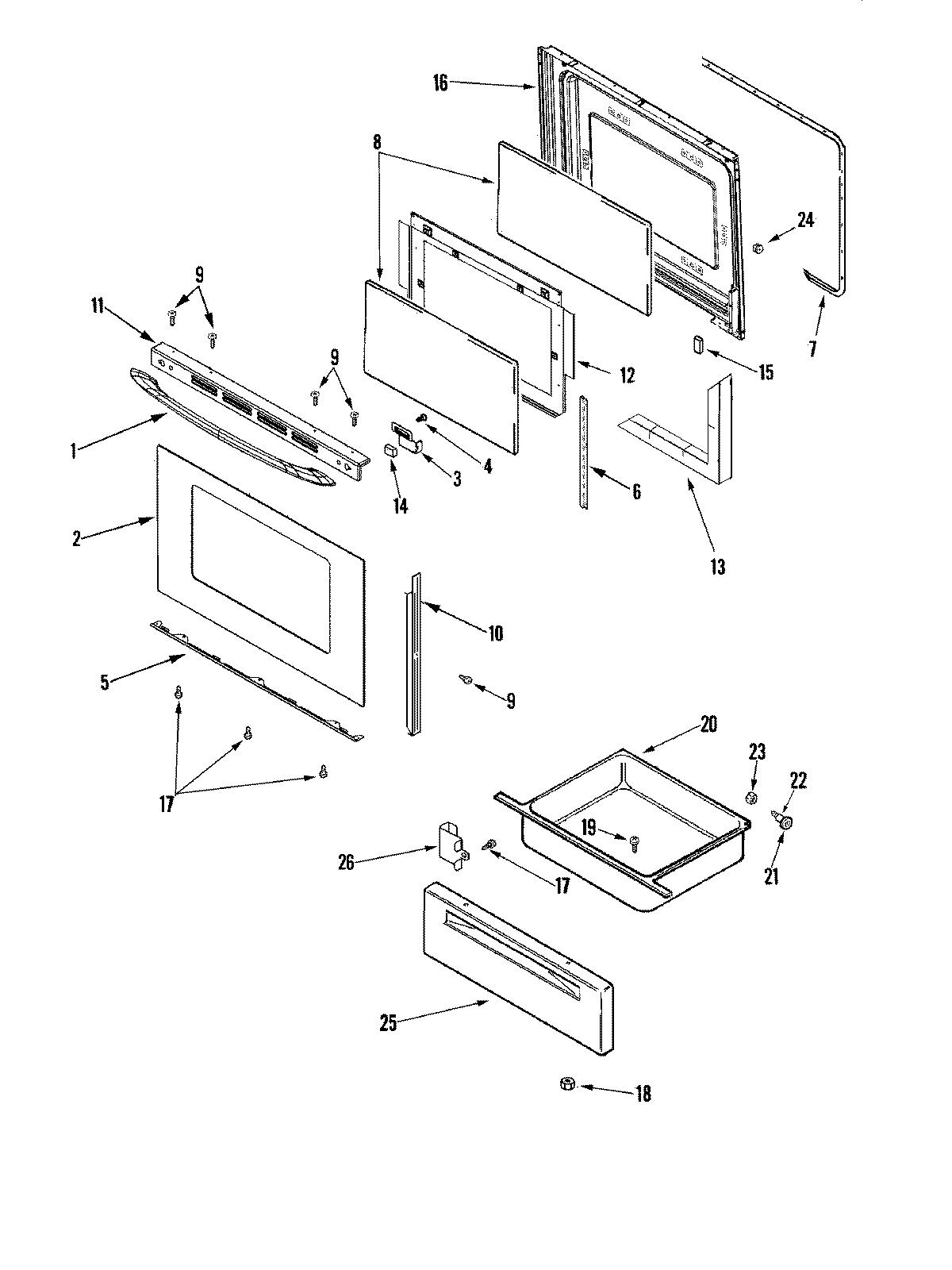

MERS751BAB 03 – DOOR/DRAWER

MERS751BAB 03 – DOOR/DRAWER

Written by

in

MERS751BAB 03 – DOOR/DRAWER

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 12002395
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
63801F886-51 Whirlpool Mounting Bracket
7GASKT-DOOR OVEN
874003645 Whirlpool Range Oven Door Inner Glass
9WP98008545 Whirlpool Screw
10WP3608F116-70 Whirlpool Door Trim
10WP3608F117-70 Whirlpool Door Trim
10WP74004224 Whirlpool Tape
11MAY 74009689
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14SPACER, RUBBER (BLK-SQUARE)
15WP74005546 Whirlpool RU Spacer
16LINING, DOOR
17SCREW, 8 X 1/2
18WPW10131078 Whirlpool Nut Assembly
19SCREW
20MAY 74008337
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24NUT, SNAP (ROUND-BLK)
25MAY 74009685
26MAY 74010896
