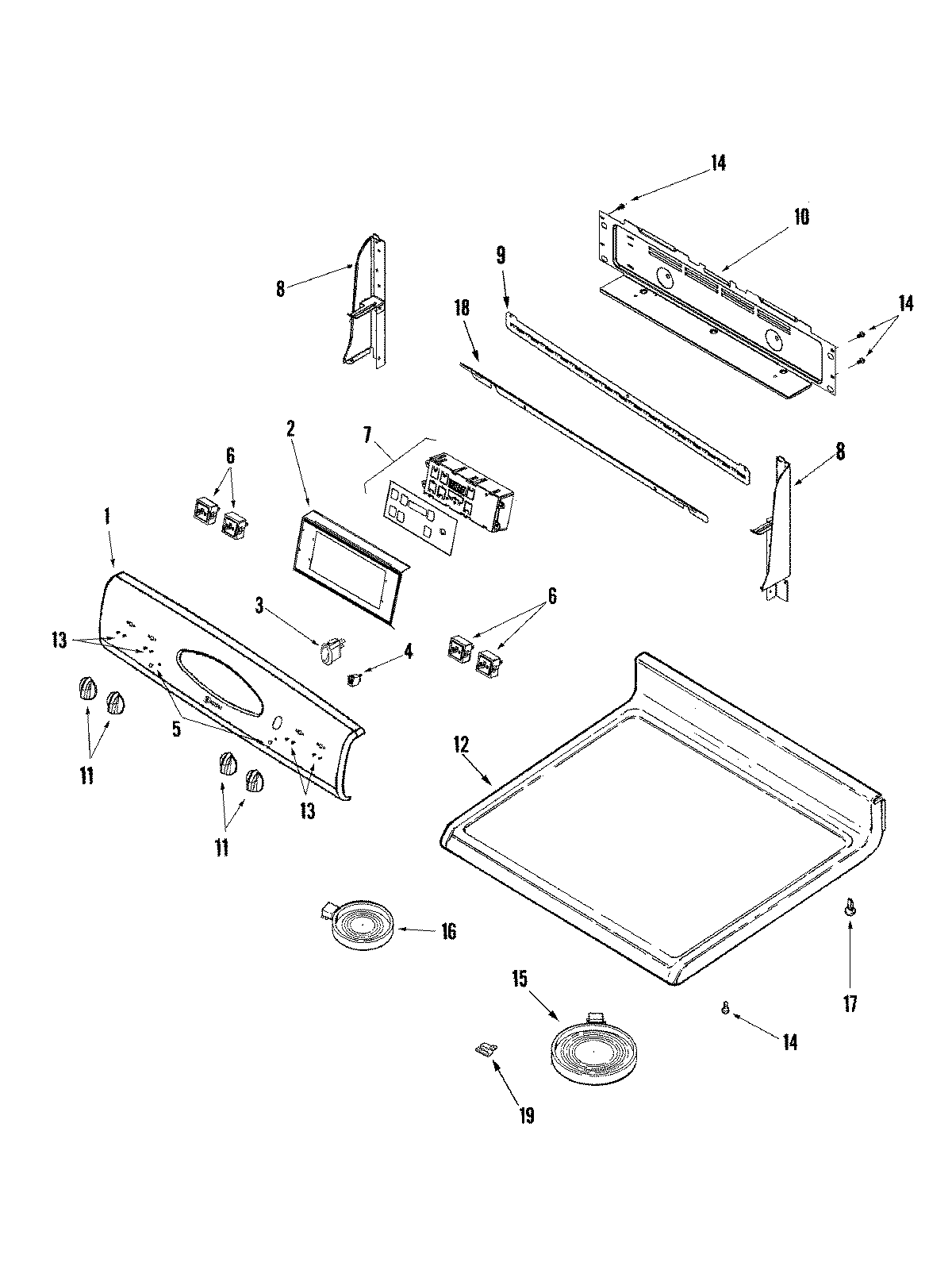

MERS751BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009072
2	BRACKET, CLOCK
3	7403P984-60 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	MAY 74010714
8	WP74009541 Whirlpool Screw Assembly
8	MAY 74010712
9	MAY 74009701
10	COVER, REAR WIRE
11	MAY 74009189
12	MAY 74011062
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009978
19	8004P093-60 Whirlpool Support C
