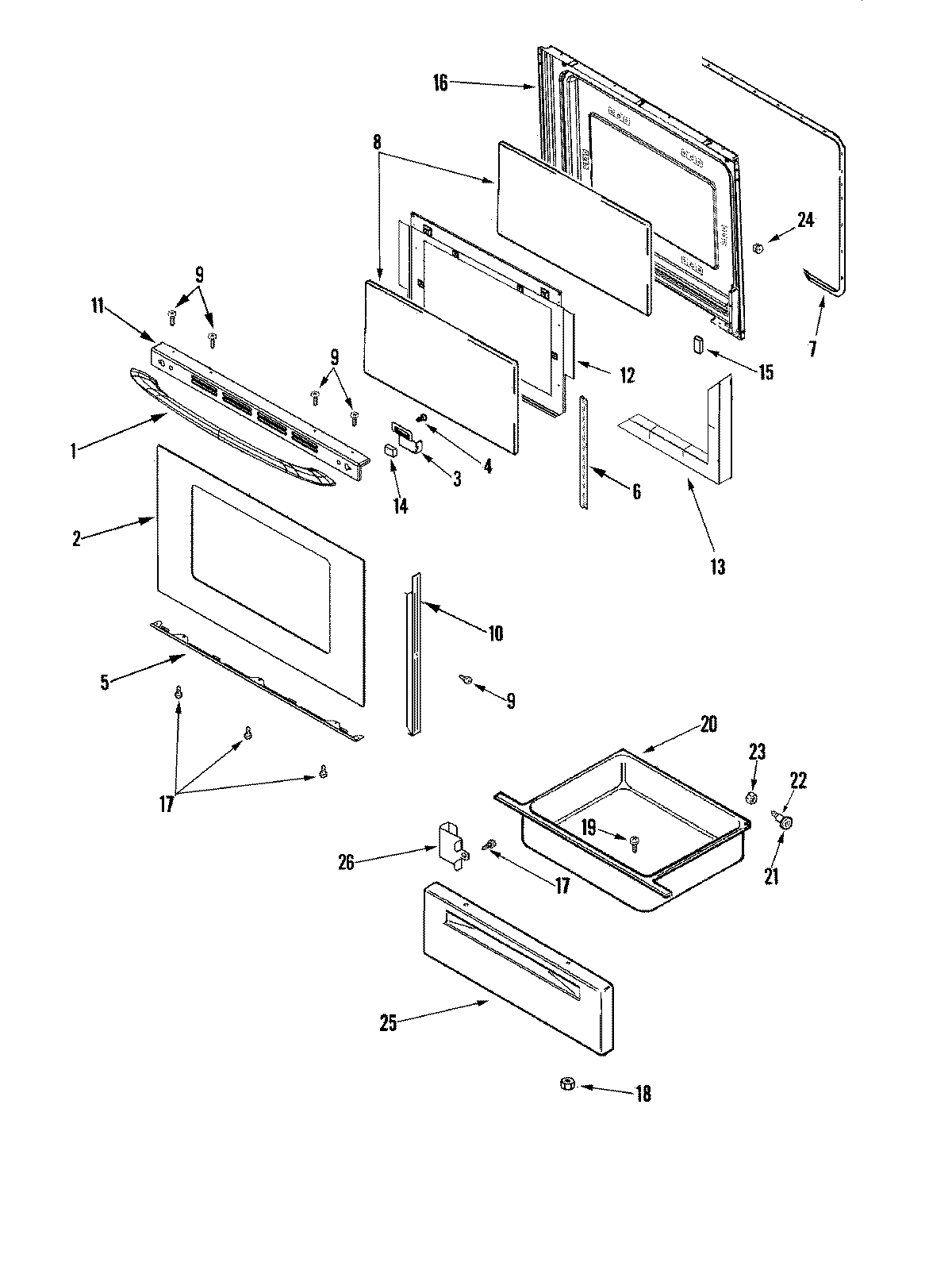

MERS751BAQ 03 – DOOR/DRAWER

Products

Position	Product
1	HANDLE, DOOR (BSQ)
2	12002397 Whirlpool Oven Door Glass Kit (Bisque)
3	3801F831-45 Whirlpool Bracket Assembly
3	3801F832-45 Whirlpool Bracket
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BSQ)
6	3801F886-51 Whirlpool Mounting Bracket
7	GASKT-DOOR OVEN
8	74003645 Whirlpool Range Oven Door Inner Glass
9	WP74009541 Whirlpool Screw Assembly
10	WP74004224 Whirlpool Tape
10	TRIM, DOOR (BSQ-RT)
10	TRIM, DOOR (BSQ-LT)
11	MAY 74009691
12	3601F373-51 Whirlpool Baffle
13	INSULATION, OVEN DOOR
14	SPACER, RUBBER (BLK-SQUARE)
15	WP74005546 Whirlpool RU Spacer
16	LINING, DOOR
17	SCREW, 8 X 1/2
18	WPW10131078 Whirlpool Nut Assembly
19	SCREW
20	MAY 74008337
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
24	NUT, SNAP (ROUND-BLK)
25	MAY 74005055
26	MAY 74010896
