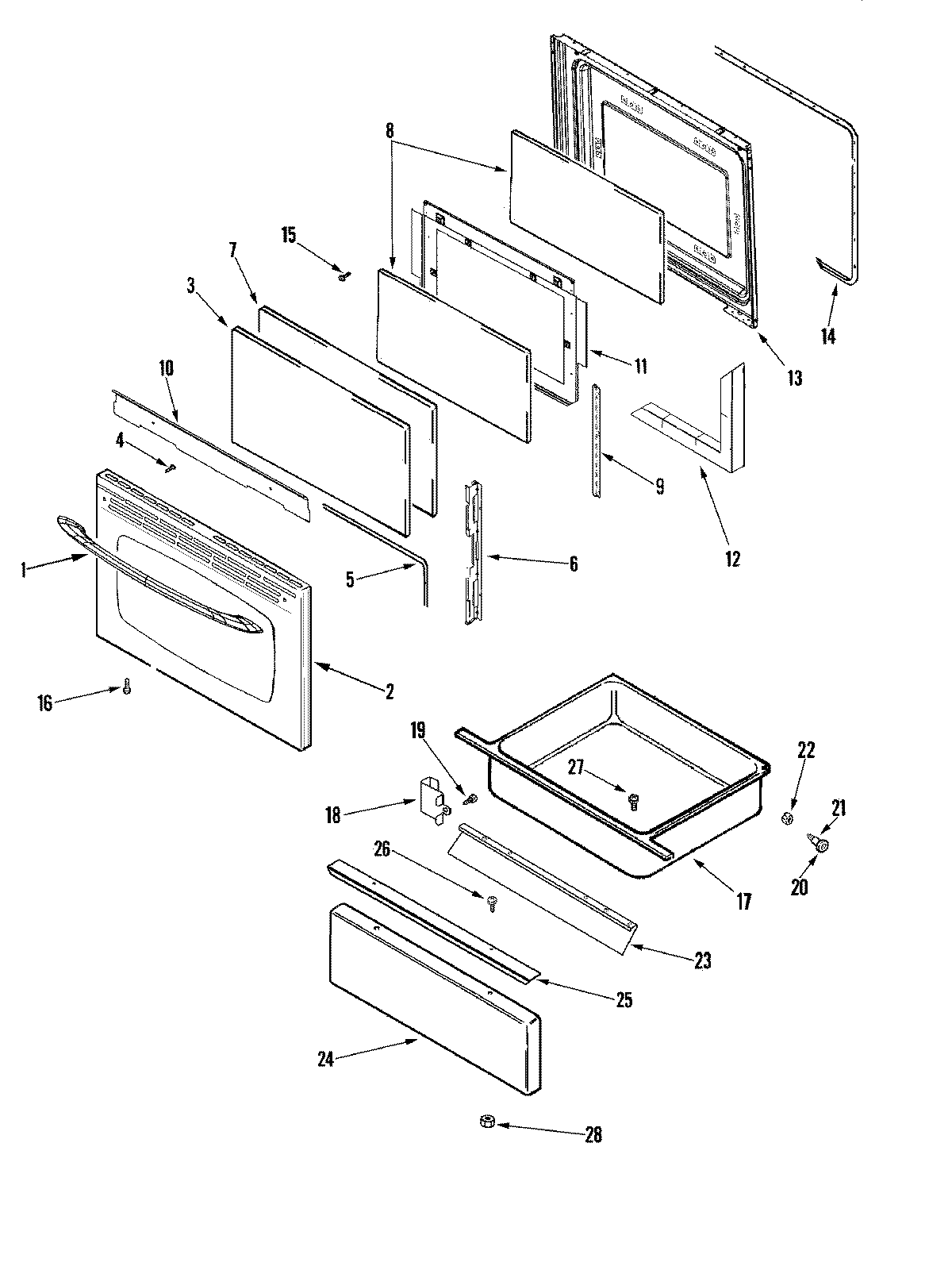

MERS751BAS 03 – DOOR/DRAWER (STL)

Products

Position	Product
1	WP7701P526-60 Whirlpool Door Handle
2	MAY 7760M186-60
2	NUT, SNAP (ROUND-BLK)
3	MAY 74010042
4	MAY 74011772
5	WP74009029 Whirlpool Door Gasket
6	MAY 74010041
7	GLASS, DOOR (INNER/COATED)
8	74003645 Whirlpool Range Oven Door Inner Glass
9	3801F886-51 Whirlpool Mounting Bracket
10	MAY 74011921
11	3601F373-51 Whirlpool Baffle
12	INSULATION, OVEN DOOR
13	LINING, DOOR
14	GASKT-DOOR OVEN
16	SCREW
17	DRAWER, STORAGE
18	MAY 74010896
19	SCREW, 8 X 1/2
20	WP74004078 Whirlpool Door Roller
21	SHAFT, STORAGE DRAWER ROLLER
22	WP488130 Whirlpool Air Conditioner Nut
23	LINING, DRAWER PANEL
24	MAY 74009842
25	HANDLE, DRAWER (STL)
27	WP7101P072-60 Whirlpool Screw
28	WPW10131078 Whirlpool Nut Assembly
