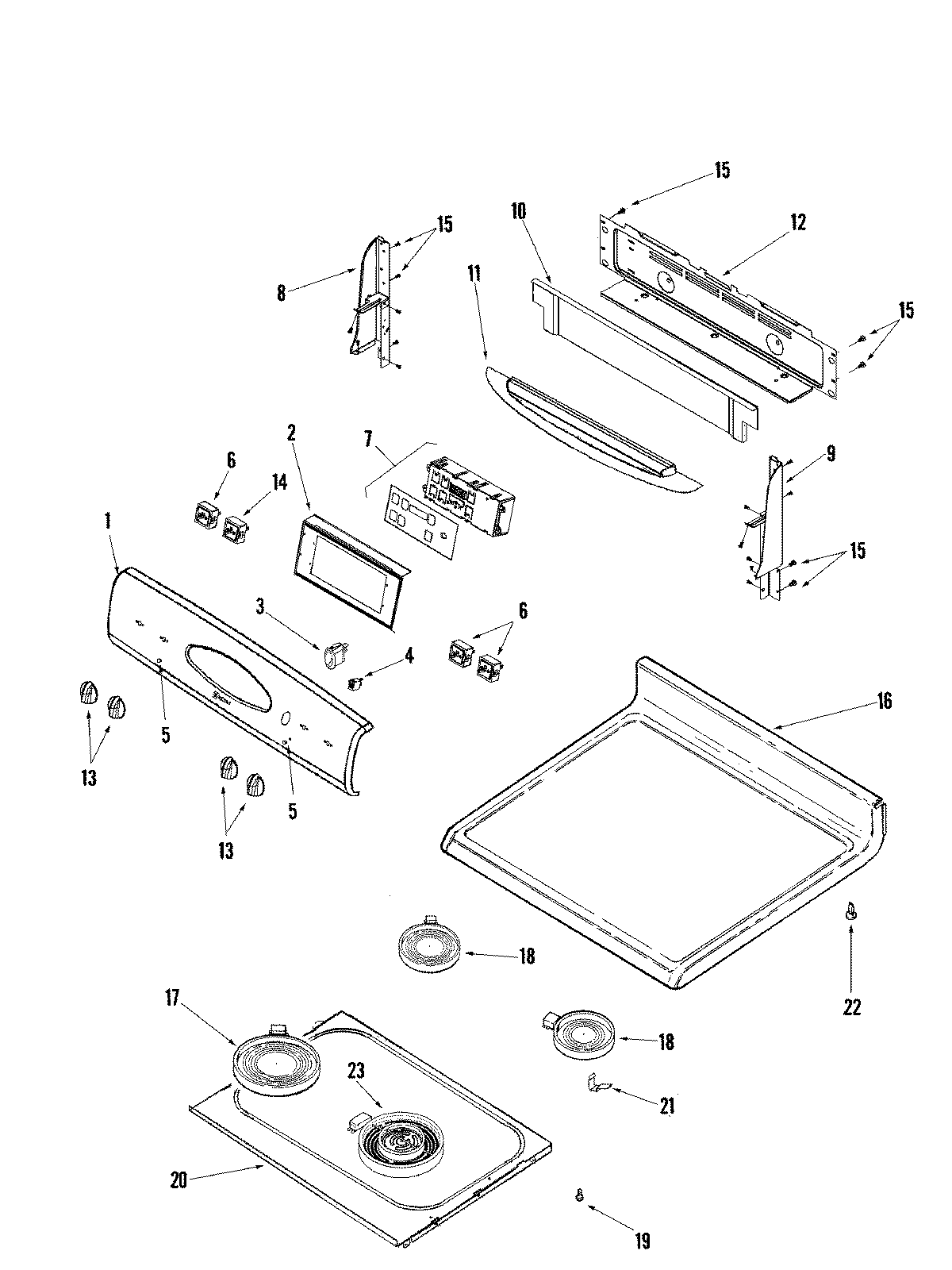

MERS755RAB 03 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
MERS755RAB 03 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74011066
2
BRACKET, CLOCK
3
7403P985-60 Whirlpool Rocker Switch (Black)
4
WP74004153 Whirlpool Indicator Light
5
WP7730P011-60 Whirlpool Indicator Lens
6
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6
SCREW
6
WP7403P239-60 Whirlpool Oven Switch
7
WP5701M719-60 Whirlpool Electronic Control Board
8
End Cap (Right Black)
9
End Cap (Left Black)
10
MAY 74009444
11
MAY 74009202
12
MAY 74008836
12
MAY 74010983
13
MAY 74008945
14
WP74008940 Whirlpool Infinite Switch
15
SCREW
16
MAY 74011164
17
W10823696 Whirlpool Radiant Surface Element
18
W10823711 Whirlpool Surface Element Left Front and Right Rear
20
MAY 74008900
21
74007134 Whirlpool Oven Spring Element Support
22
74008761 Whirlpool Spacer Snap-In
23
MAY 74009082
←
