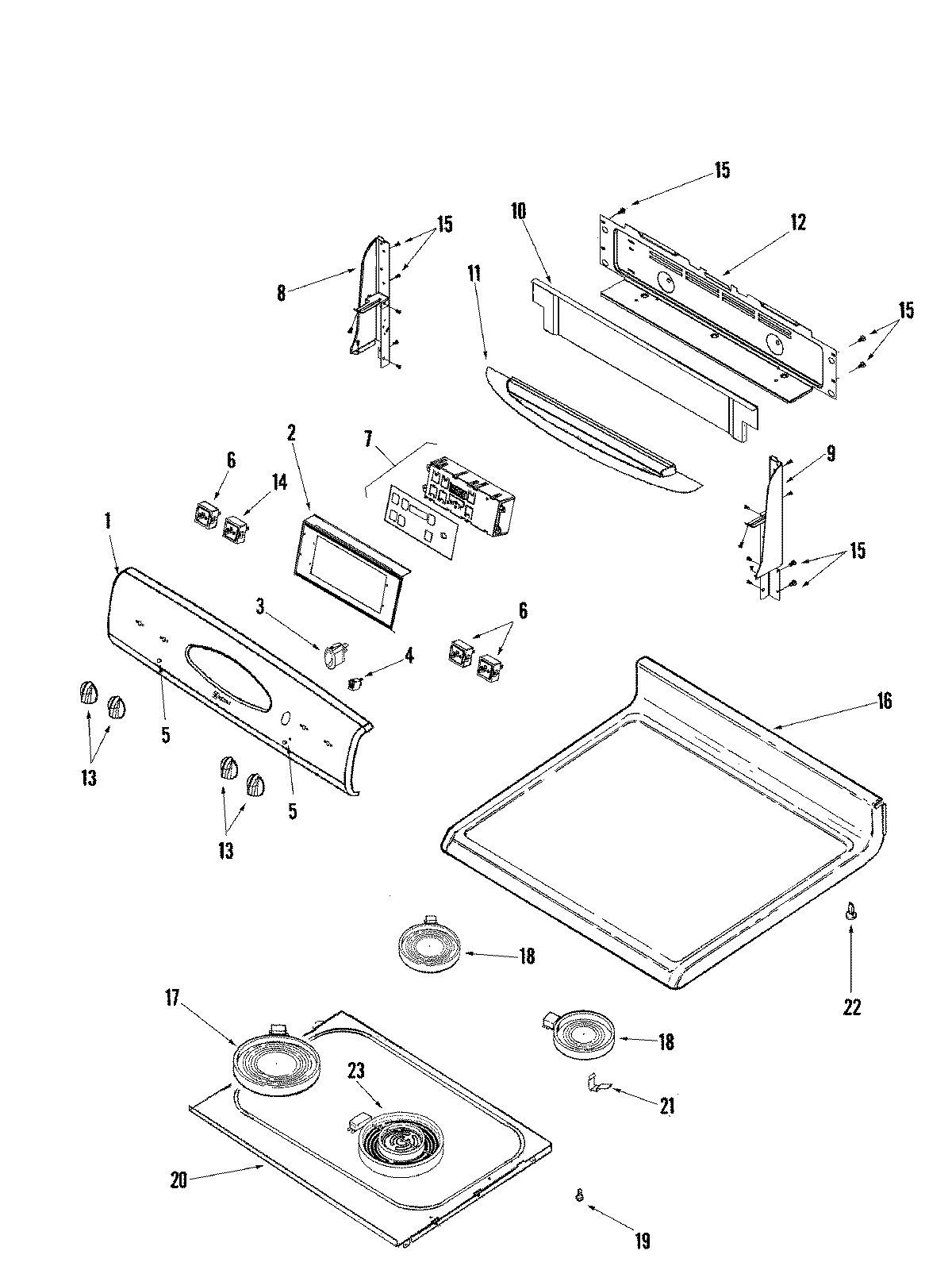

MERS755RAQ 03 – CONTROL PANEL/TOP ASSEMBLY

MERS755RAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MERS755RAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011068
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
6SCREW
7MAY 74009212
8END CAP (RT-BSQ)
9END CAP (LT-BSQ)
10MAY 74009444
11SHIELD, HEAT VISOR (BSQ)
12MAY 74008836
12MAY 74010983
1374008946 Whirlpool Oven Bisque Knob
14WP74008940 Whirlpool Infinite Switch
15SCREW
16MAY 74011166
17W10823696 Whirlpool Radiant Surface Element
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23MAY 74009082
