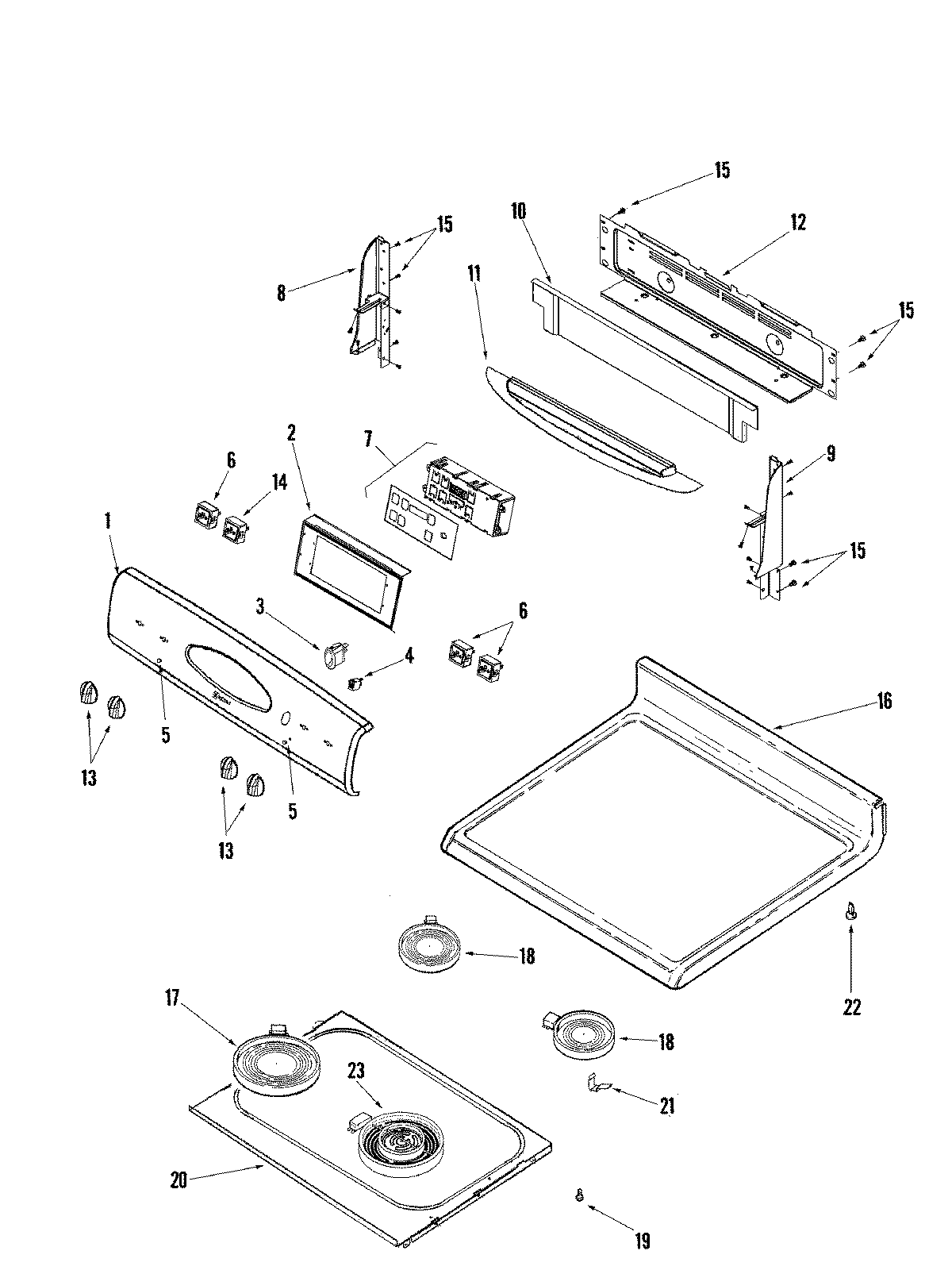

MERS755RAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011067
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
6SCREW
7WP5701M717-60 Whirlpool Electronic Control Board
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009444
11MAY 74009203
12MAY 74008836
12MAY 74010983
13WP74008947 Whirlpool Knob White
14WP74008940 Whirlpool Infinite Switch
15SCREW
16MAY 74011165
17W10823696 Whirlpool Radiant Surface Element
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23MAY 74009082
