MES5552BAB 02 – CONTROL PANEL/TOP ASY (MES5552)

MES5552BAB 02 – CONTROL PANEL/TOP ASY (MES5552)

Written by

in

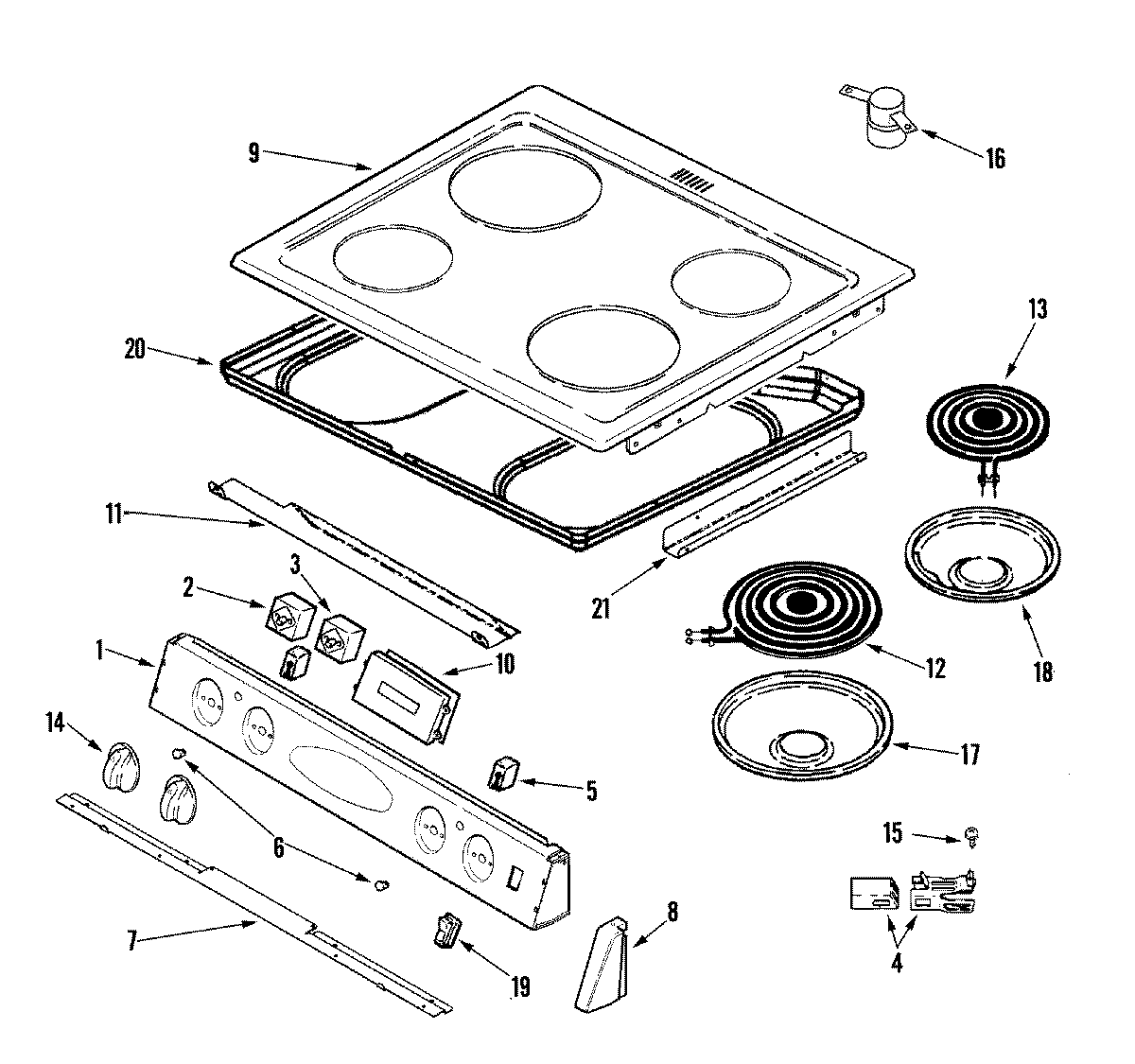

MES5552BAB 02 – CONTROL PANEL/TOP ASY (MES5552)

Products

PositionProduct
1MAY 74011078
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3SCREW
3WP7403P239-60 Whirlpool Oven Switch
412001676 Whirlpool Range Surface Burner Receptacle Kit
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (BLK-LT)
8CAP, END (BLK-RT)
92002M200-09 Whirlpool Cooktop
10W10769823 Whirlpool Oven Electronic Control Board + Core
11SHIELD, CONTROL
12WPW10345410 Whirlpool Surface Element
13WPW10259868 Whirlpool Surface Heating Element
14MAY 74008945
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
17MAY Y04100393
17DRIP BOWL 8" W/HOLE CHROME
18WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
197403P985-60 Whirlpool Rocker Switch (Black)
20MAY 74006046
21MAY 74010894
