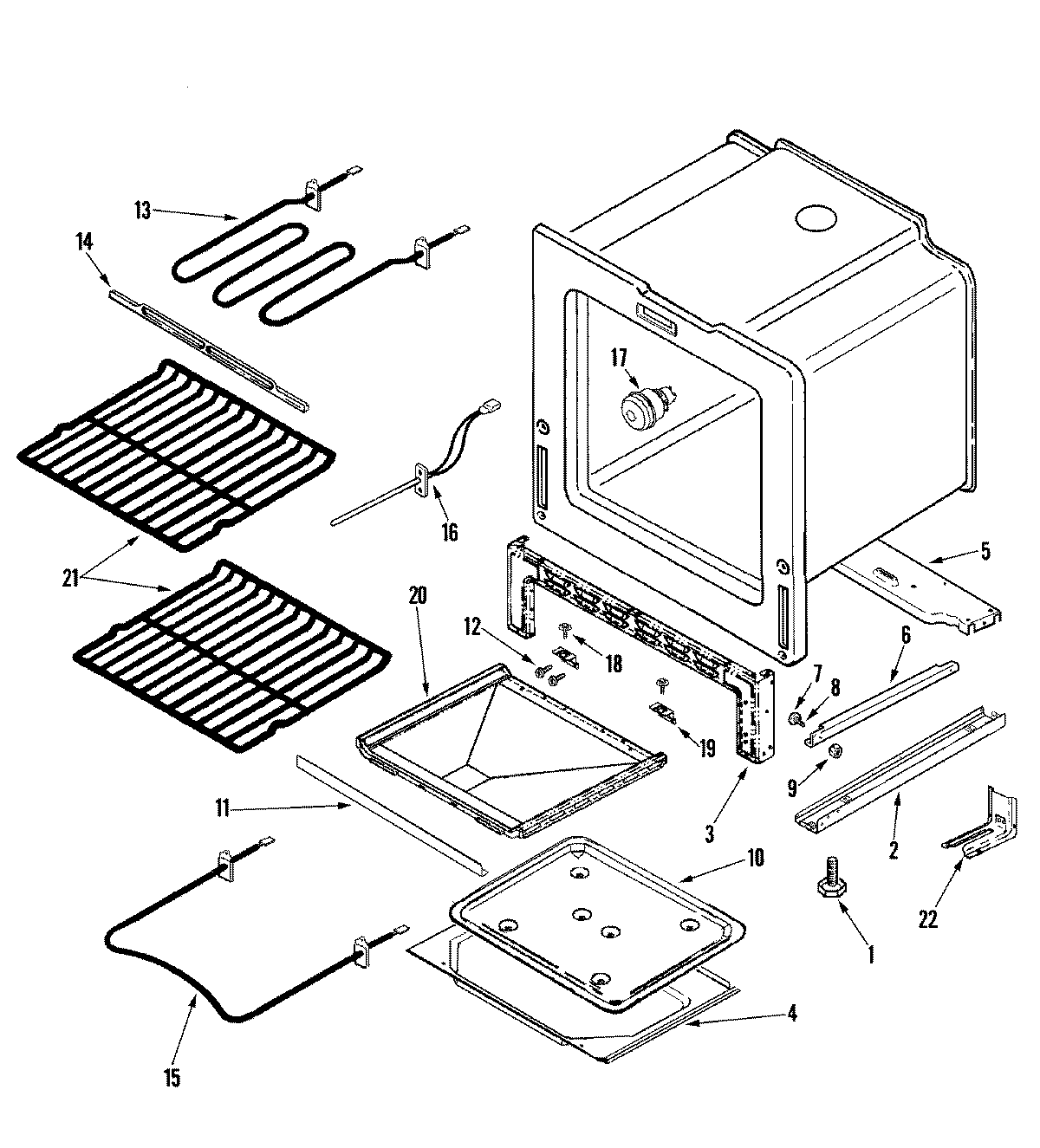

MES5552BAB 04 – OVEN/BASE

Products

PositionProduct
1WP74010805 Whirlpool Screw
24020W035-80 Whirlpool Bottom PE
3PEDESTAL, FRONT
4RETAINER, INSULATION (BOTTOM)
5SUPPORT, VALVE REGULATOR
6RUNNER, DRAWER
7WP74004078 Whirlpool Door Roller
8SHAFT, STORAGE DRAWER ROLLER
974005230 Whirlpool Oven Lock Nut (8-32)
10MAY 74010806
11MAY 74010807
12WP74003976 Whirlpool Screw
13WP7406P218-60 Whirlpool Broil Element
14SUPPORT, BROIL ELEMENT
15WPW10310274 Whirlpool Bake Element
1612001656 Whirlpool Range Oven Temperature Sensor
17LAMP ASSEMBLY
17RANGE ONLY 40W 120V APPL BULB
19MAY 74010812
20MAY 74010853
21WPW10282492 Whirlpool Oven Rack
22WP3801F656-51 Whirlpool Range Anti-Tip Bracket
22WP7101P485-60 Whirlpool Anchor Tip
