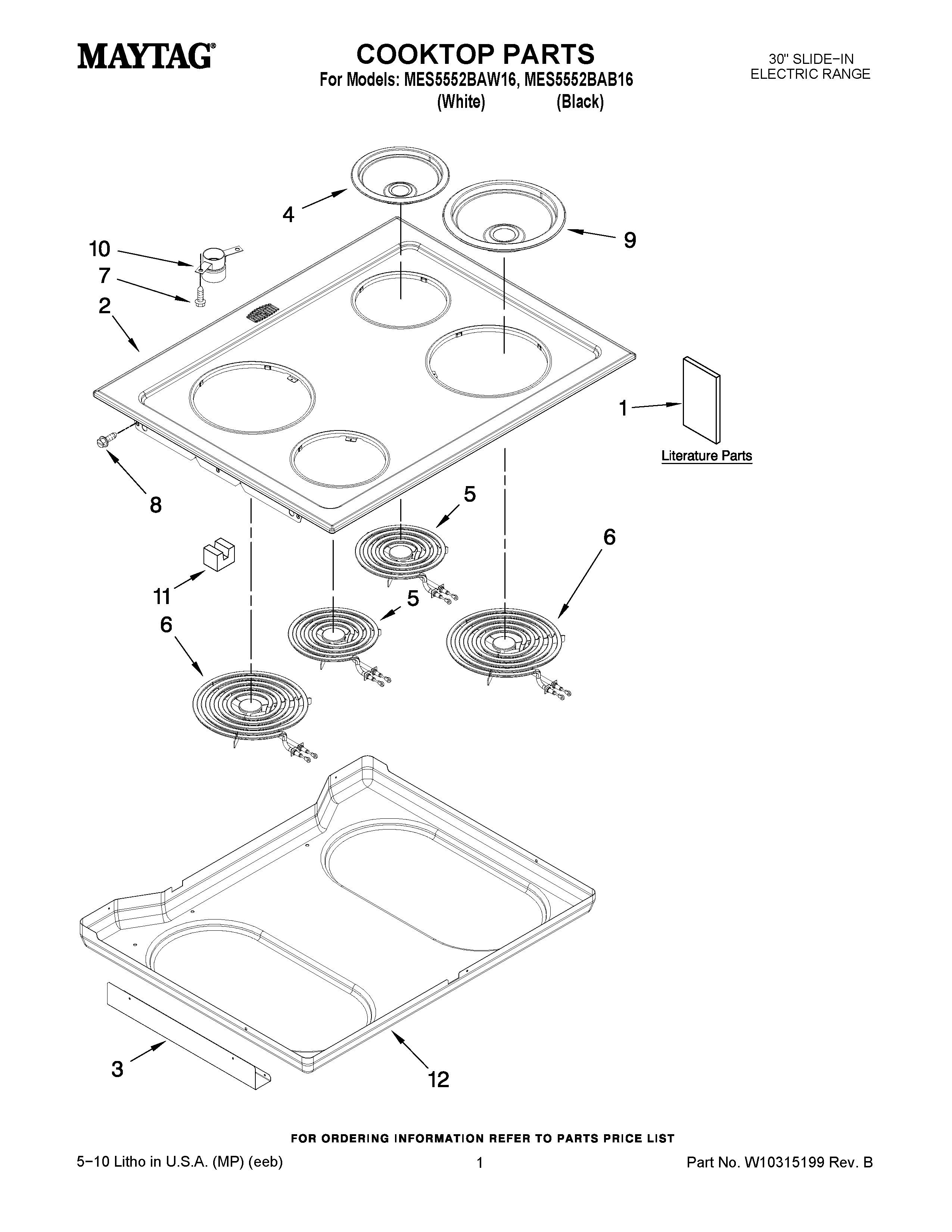

MES5552BAB16 01 – COOKTOP PARTS

MES5552BAB16 01 – COOKTOP PARTS

Written by

in

MES5552BAB16 01 – COOKTOP PARTS

Products

PositionProduct
1MAY 8113P767-60
1TIPS, SAFE COOKING (ENGLISH)
1INSTALLATION INSTRUCTIONS
1MAY 8119P154-60
2COOKTOP (BLACK)
2MAY W10204444
3MAY 3801F881-51
4PAN, REFLECTOR SMALL
5ELEMENT (LF,RR)
6ELEMENT (LR,RF)
7SCREW (8BX3/8-NI)
8MAY 7101P426- 60
9PAN, REFLECTOR LARGE
10MAY W10233479
11MAY 8255P412-60
12BURNER BOX
