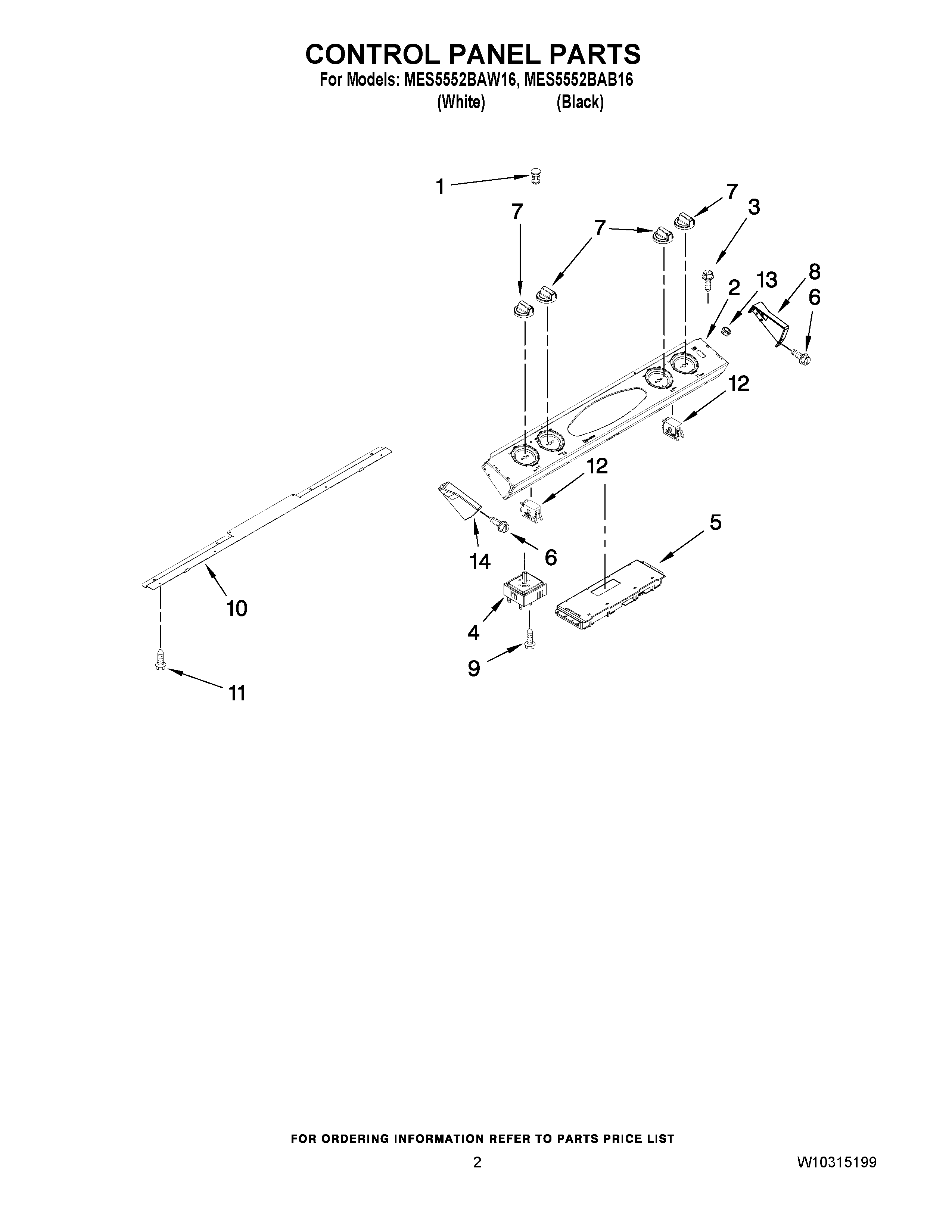

MES5552BAB16 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WP7730P011-60 Whirlpool Indicator Lens
2	MAY 2614D133-09
2	MAY 2614D133-81
3	WP59002061 Whirlpool Microwave Screw
4	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
4	Switch, Infinte (6“ (RR/LR)(2))
5	CONTROL W/OVERLAY (BLACK)
5	CONTROL W/OVERLAY (WHITE)
6	MAY 7101P636-60
6	Screw (2) (Black)
7	KNOBS (WHITE (4))
7	KNOBS (BLACK (4))
8	CAP, END (RIGHT) (BLACK)
8	TRIM, END CAP (WHITE, RIGHT)
9	SCREW
10	MAY 3807F601-51
11	MAY 7101P426- 60
12	MAY 7407P136-60
13	Switch, Rocker
13	SWITCH, ROCKER (WHITE)
14	TRIM, END CAP (WHITE, LEFT)
14	CAP, END (LEFT) (BLACK)
