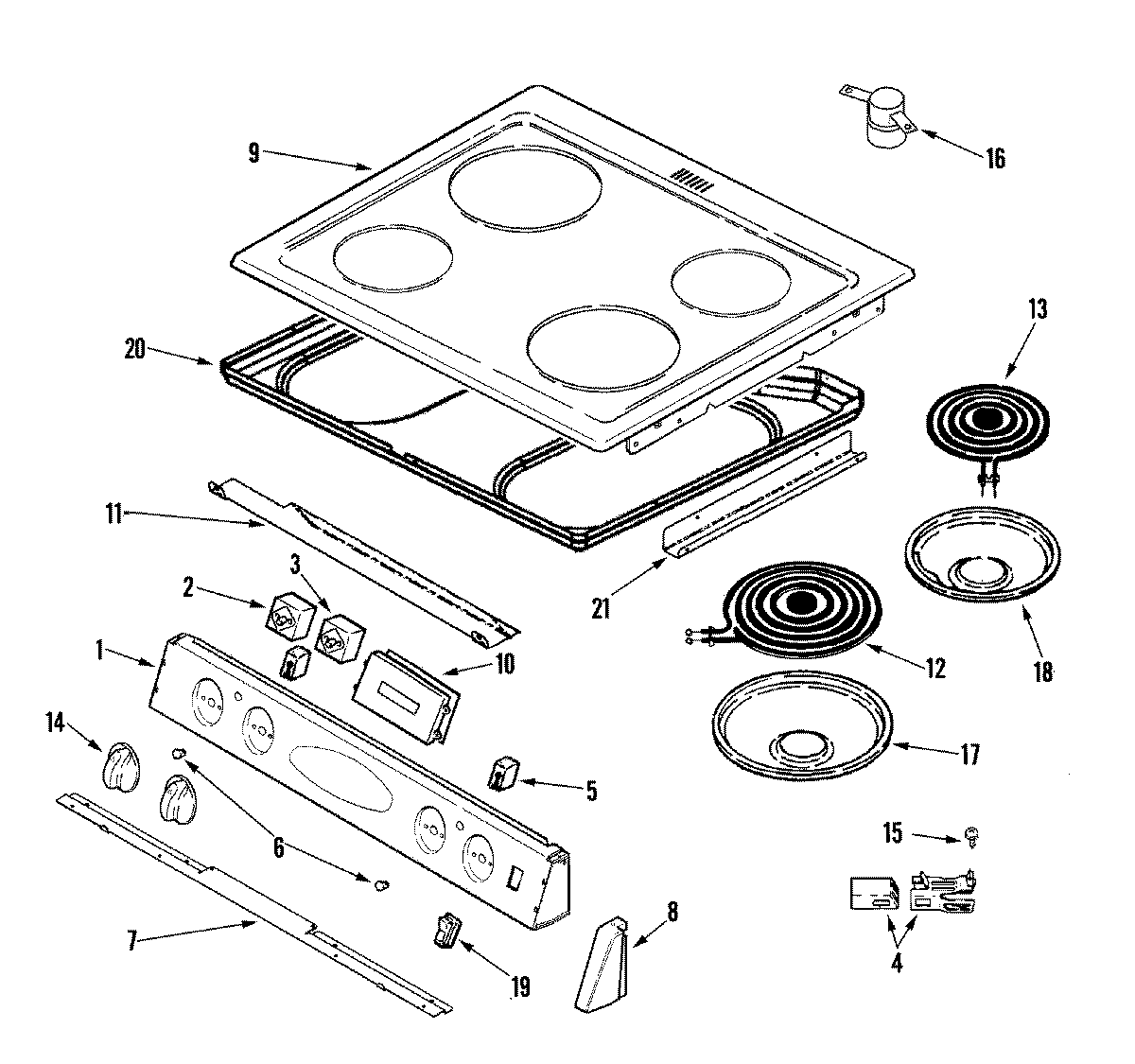

MES5552BAW 02 – CONTROL PANEL/TOP ASY (MES5552)

MES5552BAW 02 – CONTROL PANEL/TOP ASY (MES5552)

Written by

in

MES5552BAW 02 – CONTROL PANEL/TOP ASY (MES5552)

Products

PositionProduct
1MAY 74011079
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
3SCREW
412001676 Whirlpool Range Surface Burner Receptacle Kit
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (WHT-LT)
8CAP, END (WHT-RT)
92002M200-81 Whirlpool Cooktop
10CLOCK/OVERLAY (WHT)
11SHIELD, CONTROL
12WPW10345410 Whirlpool Surface Element
13WPW10259868 Whirlpool Surface Heating Element
14WP74008947 Whirlpool Knob White
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
17DRIP BOWL 8" W/HOLE CHROME
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
19WP74010226 Whirlpool RO Switch
20MAY 74006046
21MAY 74010894
