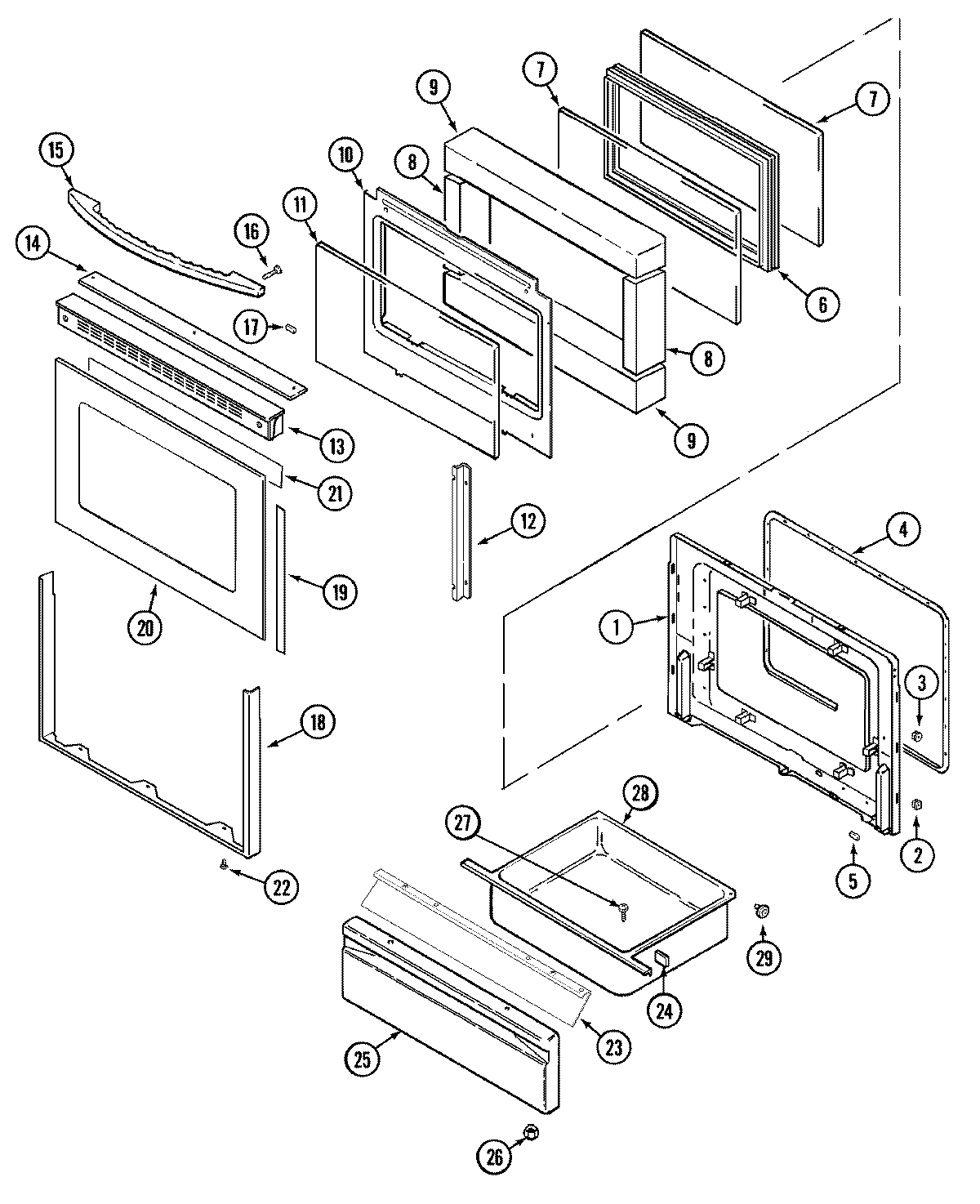

MES5570AAW 02 – DOOR/DRAWER

MES5570AAW 02 – DOOR/DRAWER

Written by

in

MES5570AAW 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003653 Whirlpool Door Trim
14MAY 7728P094-60
14MAY 74001278
15MAY 74003620
16WP179051 Whirlpool Screw
17MAY 71002092
18WP98008544 Whirlpool Screw Assembly
18MAY 74004325
19WP74004224 Whirlpool Tape
20MAY 74003671
21TAPE, FOIL 29“ X 2“
22SCREW
23LINING, DRAWER PANEL
24MAY 8010P085-60
25PANEL, DRAWER (WHT)
26WPW10131078 Whirlpool Nut Assembly
27WP7101P072-60 Whirlpool Screw
28MAY 71003042
29WP488130 Whirlpool Air Conditioner Nut
29MAY 74003566
