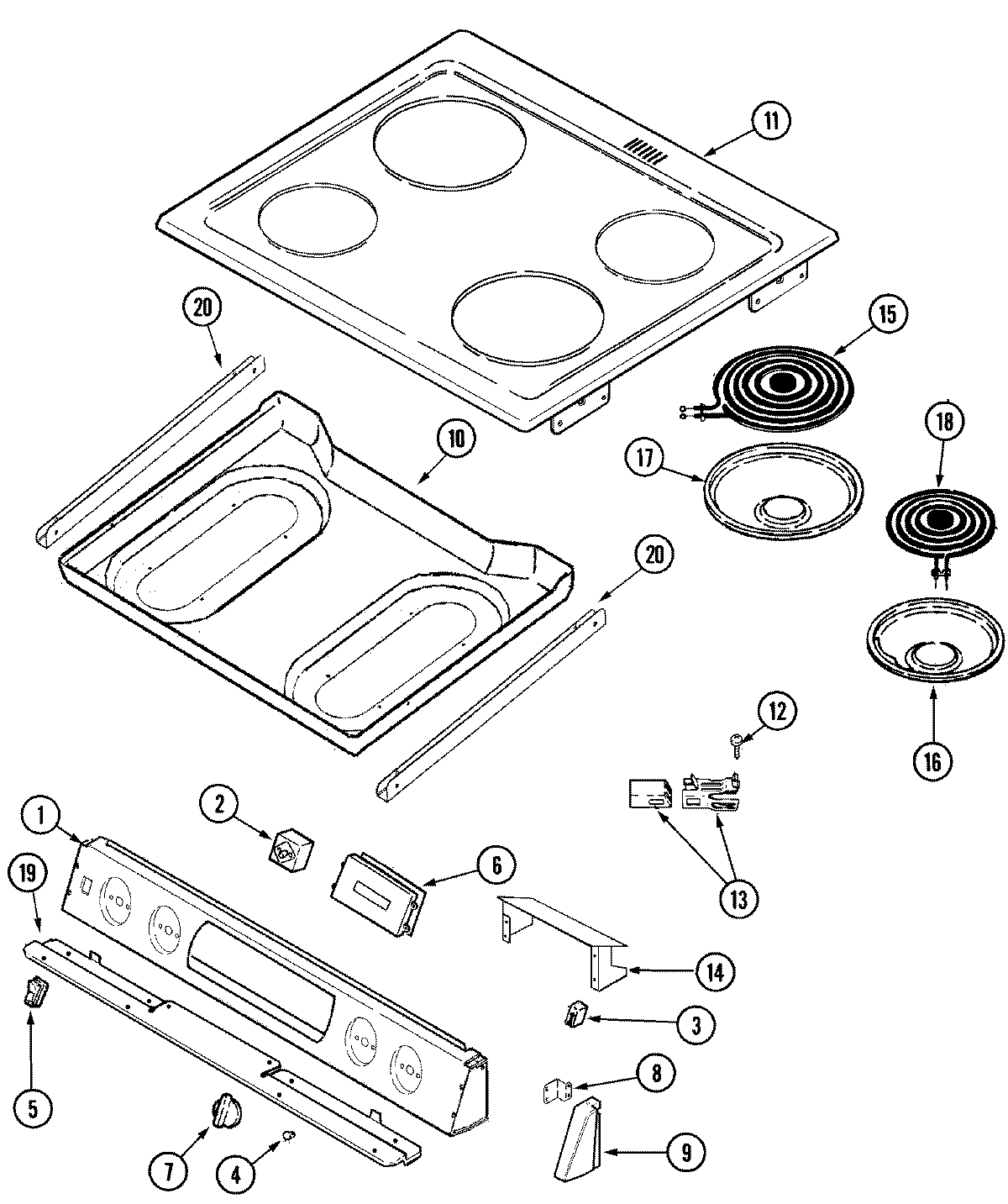

MES5570AAW 04 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74004355
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008717 Whirlpool White Rocker Switch
6	MAY 74007369
6	MAY 74009307
6	MAY 74004329
7	WP74003611 Whirlpool Oven White Knob
8	MAY 74004186
8	MAY 74005671
9	MAY 74004814
9	MAY 74004817
9	MAY 74004598
9	MAY 74004319
9	MAY 74004320
9	MAY 74004597
9	WP98008544 Whirlpool Screw Assembly
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 74006046
10	MAY 74004251
10	MAY 7103P125-60
11	MAY 74004248
11	MAY 74007600
12	MAY 7118P013-60
13	MAY 1430306K
14	MAY 74004316
15	MAY 74004089
15	WPW10345410 Whirlpool Surface Element
16	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18	WPW10259868 Whirlpool Surface Heating Element
18	MAY 74004090
19	SCREW (8BX3/8-NI)
19	MAY 74004185
20	MAY 74005822
20	SCREW
21	WP74003482 Whirlpool Auxiliary Relay
21	MAY 12001323
21	MAY 74009285
21	MAY 74004786
21	MAY 74005674
21	MAY 74004335
22	MAY 74004346
22	MAY 71002782
23	MAY 16010161
