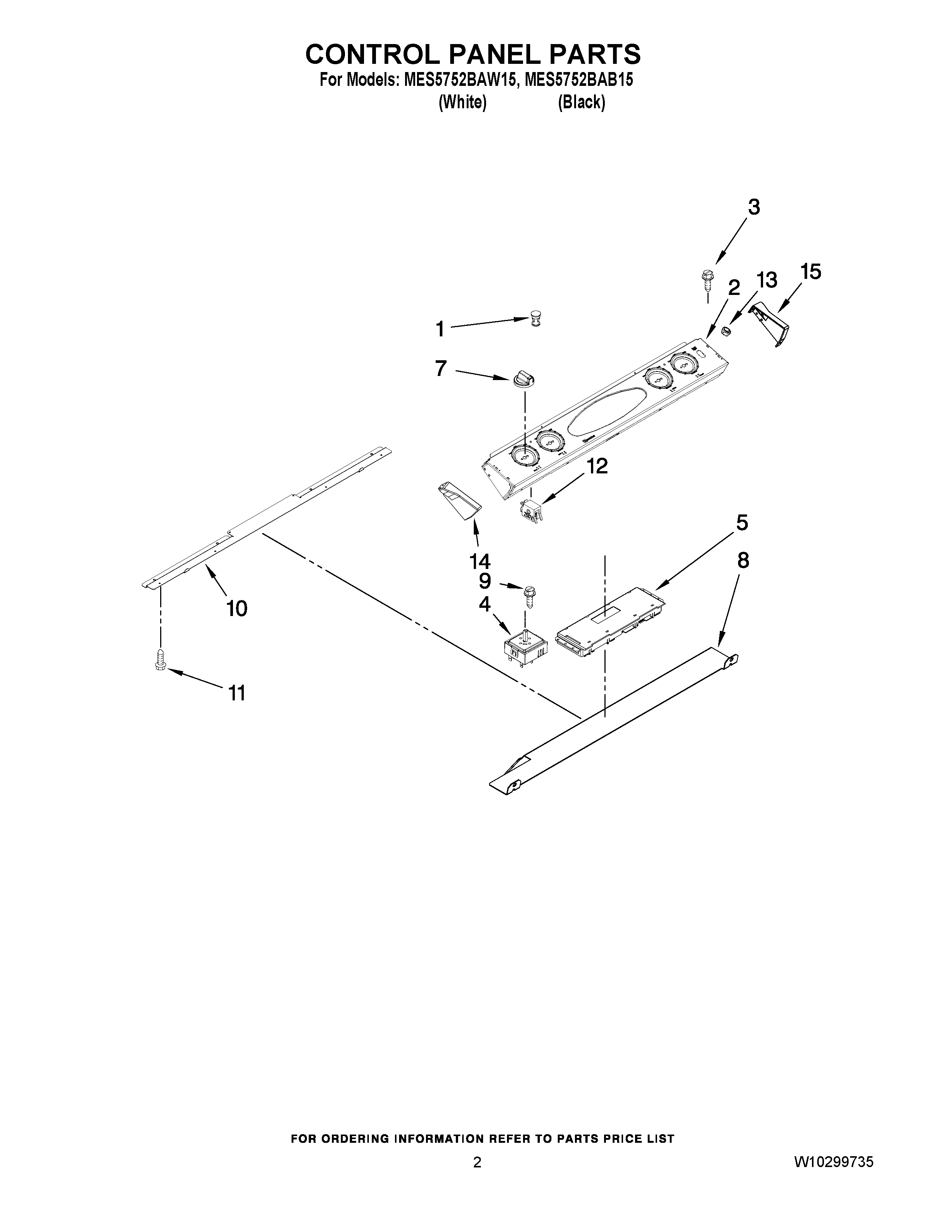

MES5752BAB15 02 – CONTROL PANEL PARTSadmin2025-04-26T08:54:56+00:00MES5752BAB15 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | WP7730P011-60 Whirlpool Indicator Lens |
| 2 | MAY 2614D149-81 |
| 2 | MAY 2614D149-09 |
| 3 | WP59002061 Whirlpool Microwave Screw |
| 4 | SWITCH, INFINITE (LEFT REAR & RIGHT REAR) |
| 4 | Switch, Infinte (6`` (RR/LR)(2)) |
| 5 | CONTROL W/OVERLAY (BLACK) |
| 5 | CONTROL W/OVERLAY (WHITE) |
| 7 | KNOBS (WHITE (4)) |
| 7 | KNOBS (BLACK (4)) |
| 8 | MAY 3604F421-51 |
| 9 | SCREW |
| 10 | MAY 3807F601-51 |
| 11 | MAY W10179558 |
| 12 | MAY 7407P136-60 |
| 13 | Switch, Rocker |
| 13 | SWITCH, ROCKER (WHITE) |
| 14 | CAP, END (LEFT) (BLACK) |
| 14 | TRIM, END CAP (WHITE, LEFT) |
| 15 | CAP, END (RIGHT) (BLACK) |
| 15 | TRIM, END CAP (WHITE, RIGHT) |
