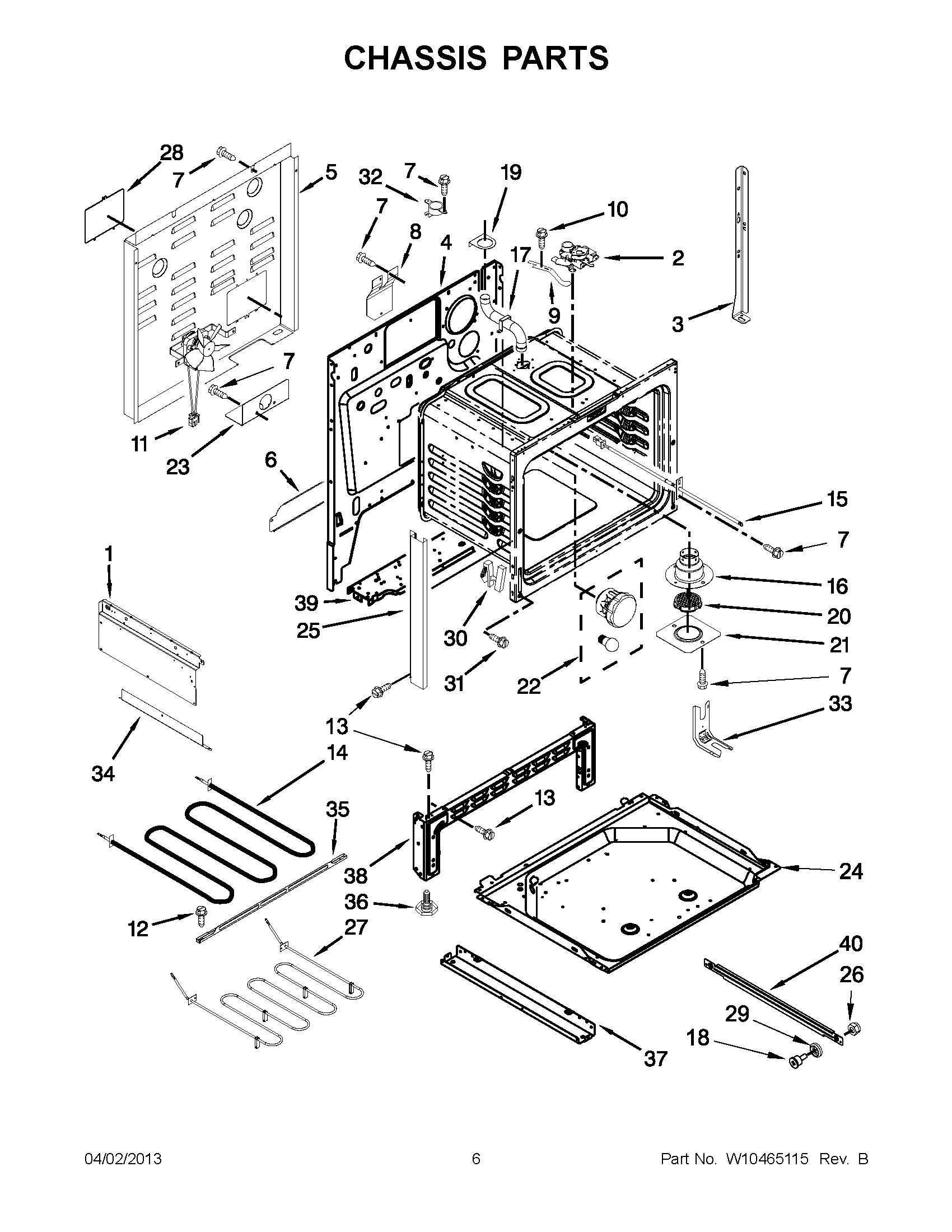

MES5752BAB16 03 – CHASSIS PARTSadmin2025-04-26T08:54:47+00:00MES5752BAB16 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P445-60 |
| NI | MAY 7002P456-60 |
| NI | MAY 7002P471-60 |
| NI | INSULATION (RETAINER, WRAP) |
| 1 | MAY 2618F206-51 |
| 1 | MAY 2618F201-51 |
| 2 | MAY 8002P093-60 |
| 3 | MAY 3807F732-51 |
| 4 | BACK, MAIN |
| 5 | COVER, MAIN WIRE |
| 6 | MAY 3826F066-51 |
| 7 | MAY 7101P426- 60 |
| 8 | MAY 7003P101-60 |
| 9 | LEVER LATCH (WHITE) |
| 9 | LEVER LATCH (BLACK) |
| 10 | Screw (Black) (2) |
| 11 | MAY W10317679 |
| 12 | MAY 7101P626-60 |
| 13 | MAY 7101P434-60 |
| 14 | MAY W10314687 |
| 15 | MAY 7430P042-60 |
| 16 | MAY 8026P096-60 |
| 17 | MAY 8026P085-60 |
| 18 | MAY 7118P032-60 |
| 19 | MAY 3605F345-51 |
| 20 | SCREEN, SMOKE ELM. |
| 21 | MAY 3605F344-45 |
| 22 | MAY 7407P182-60 |
| 23 | BRACKET, POWER SUPPLY |
| 24 | MAY 3804F231-51 |
| 25 | MAY 3608F138-71 |
| 25 | TRIM, SIDE (BLACK (2)) |
| 26 | MAY 7103P190-60 |
| 27 | MAY W10310274 |
| 28 | COVER, TERMINAL |
| 29 | MAY W10272883 |
| 30 | MAY 7106P141-60 |
| 31 | MAY 7101P336-60 |
| 32 | SWITCH, HI-LIMIT |
| 33 | BRACKET, ANTI-TIP |
| 34 | MAY 3826F064-51 |
| 35 | MAY 3807F494-45 |
| 36 | LEG, LEVELING |
| 37 | MAY 4020W035-80 |
| 38 | PEDESTAL, FRONT |
| 39 | SUPPORT |
| 40 | RUNNER, DRAWER (2) |
