MES5752BAW 02 – CONTROL PANEL/TOP ASY (MES5752)

MES5752BAW 02 – CONTROL PANEL/TOP ASY (MES5752)

Written by

in

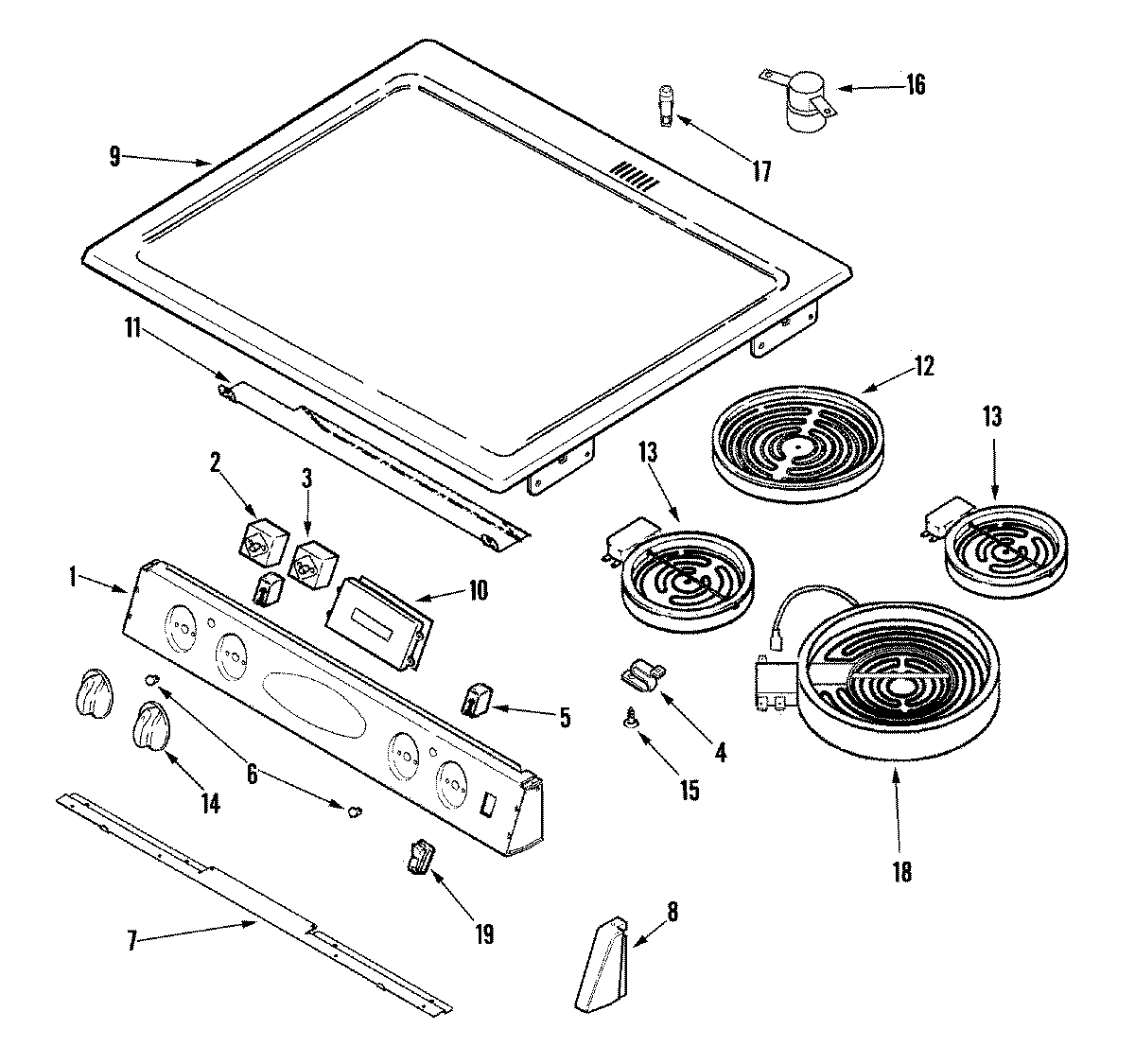

MES5752BAW 02 – CONTROL PANEL/TOP ASY (MES5752)

Products

PositionProduct
1MAY 74011083
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
3SCREW
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (WHT-LT)
8CAP, END (WHT-RT)
9MAY 74010668
10CLOCK/OVERLAY (WHT)
11SHIELD, CONTROL
12W10823696 Whirlpool Radiant Surface Element
13W10823711 Whirlpool Surface Element Left Front and Right Rear
14WP74008947 Whirlpool Knob White
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
177407P193-60 Whirlpool Light Indicator
18MAY 74009082
19WP74010226 Whirlpool RO Switch
