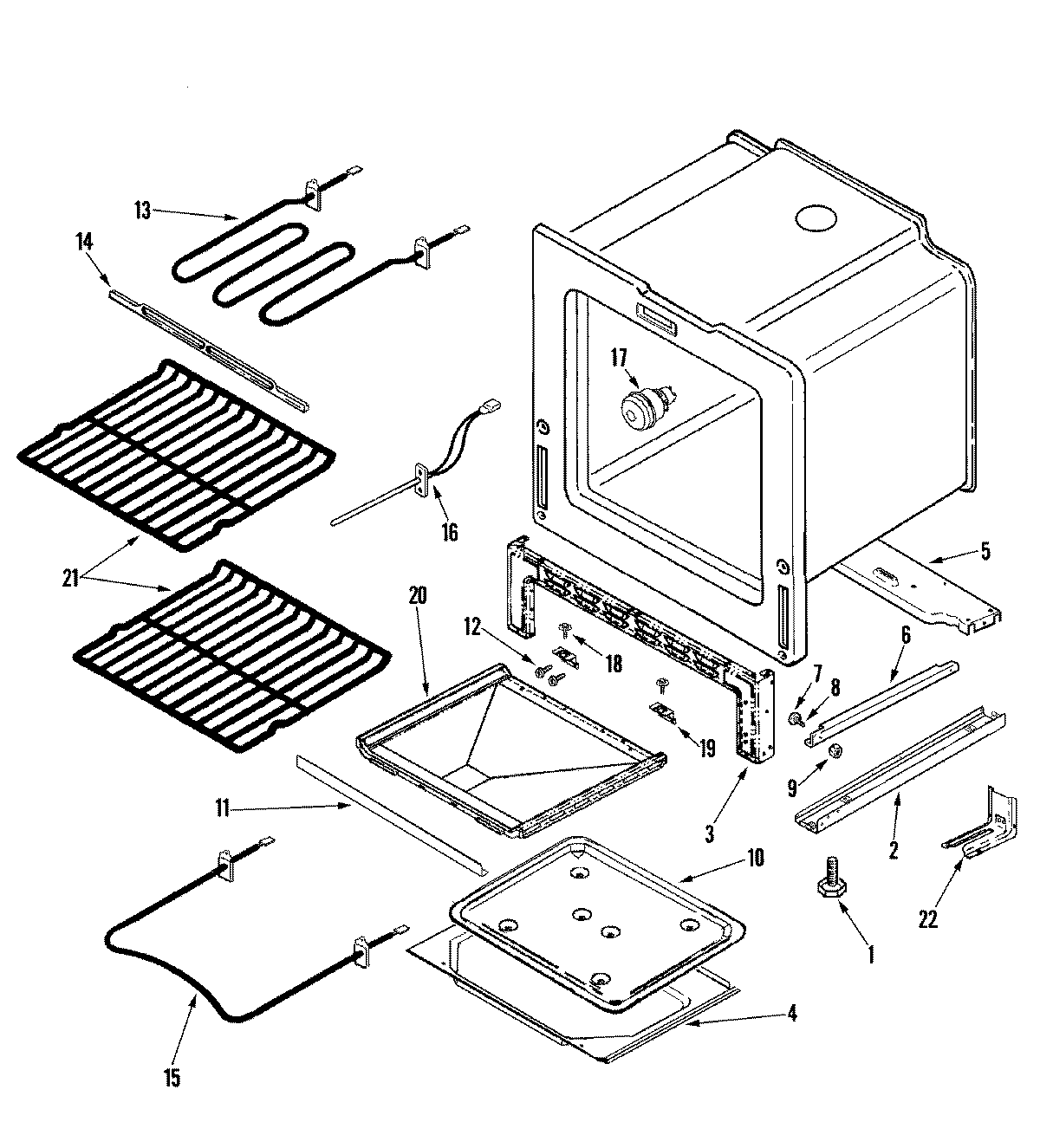

MES5752BAW 04 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	RETAINER, INSULATION (BOTTOM)
5	SUPPORT, VALVE REGULATOR
6	RUNNER, DRAWER
7	WP74004078 Whirlpool Door Roller
8	SHAFT, STORAGE DRAWER ROLLER
9	74005230 Whirlpool Oven Lock Nut (8-32)
10	MAY 74010806
11	MAY 74010807
12	WP74003976 Whirlpool Screw
13	WP7406P218-60 Whirlpool Broil Element
14	SUPPORT, BROIL ELEMENT
15	WPW10310274 Whirlpool Bake Element
16	12001656 Whirlpool Range Oven Temperature Sensor
17	LAMP ASSEMBLY
17	RANGE ONLY 40W 120V APPL BULB
19	MAY 74010812
20	MAY 74010853
21	WPW10282492 Whirlpool Oven Rack
22	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
22	WP7101P485-60 Whirlpool Anchor Tip
