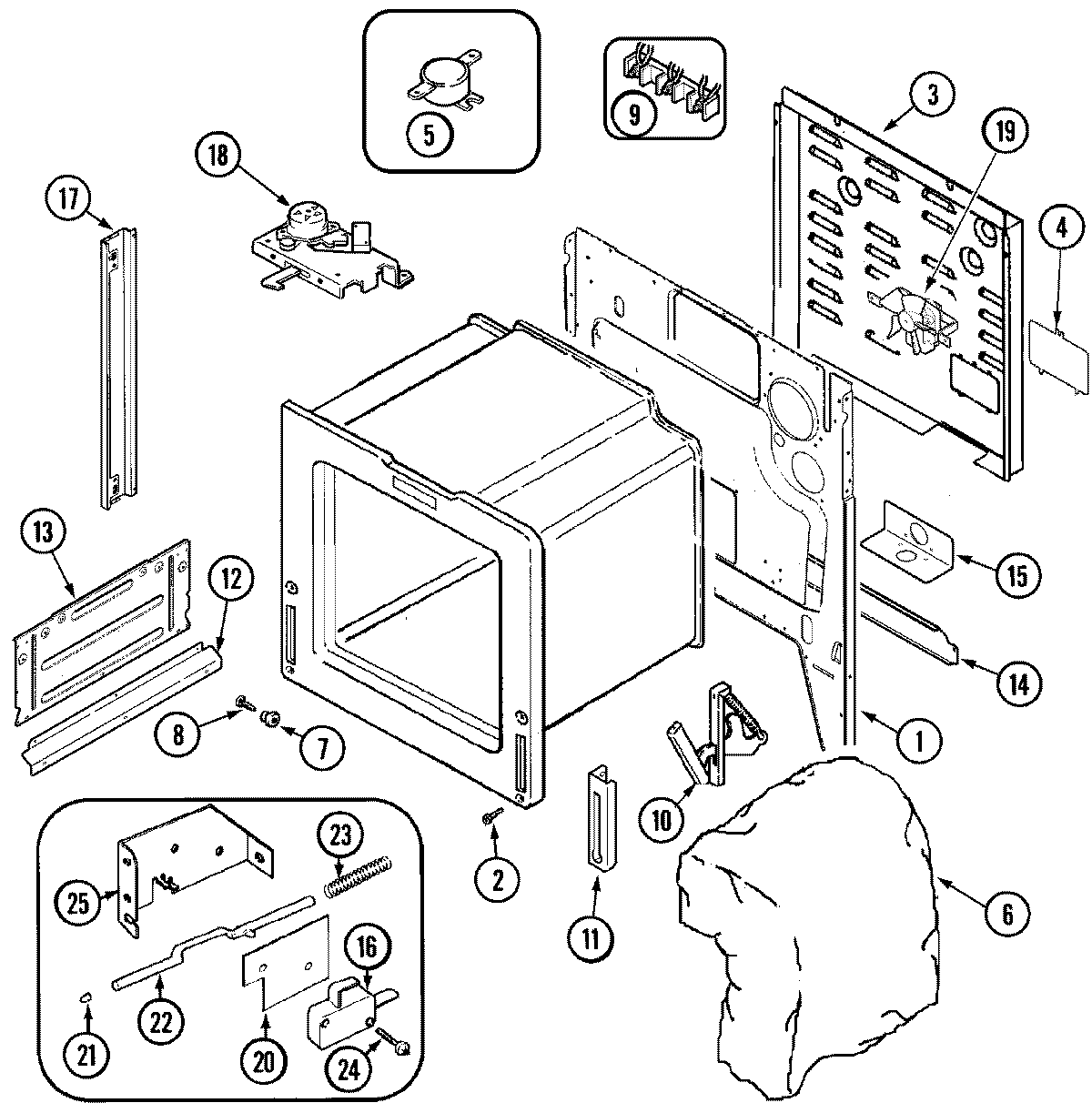

MES5770AAA 01 – BODY

Products

Position	Product
1	MAY 74004174
2	SCREW (10-24X5/16-NI)
3	MAY 74004183
3	MAY 74005265
4	MAY 74004184
4	COVER, TERMINAL BLOCK
5	WP71001844 Whirlpool Thermostat
6	MAY 74003381
6	WP74010942 Whirlpool Insulation
6	MAY 74003503
7	MAY 8004P024-60
8	MAY 74001449
8	W11693756 Whirlpool Screw Assembly
9	MAY 74002305
9	MAY 74002306
9	MAY 74002230
9	WPW10245259 Whirlpool Terminal Block
10	HINGE-OVEN DOOR
11	MAY 74004173
12	MAY 74004176
13	MAY 74004177
14	MAY 74004175
15	W10190166 Whirlpool Service Bracket
16	MAY 74001802
17	MAY 74004217
18	MAY 74004327
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19	SCREW
19	MAY 71001851
19	MAY 74004947
20	MAY 74001872
21	MAY 74001631
22	ROD, DOOR LIGHT SWITCH
24	MAY 7101P330-60
25	BRACKET, SWITCH ACTUATOR
