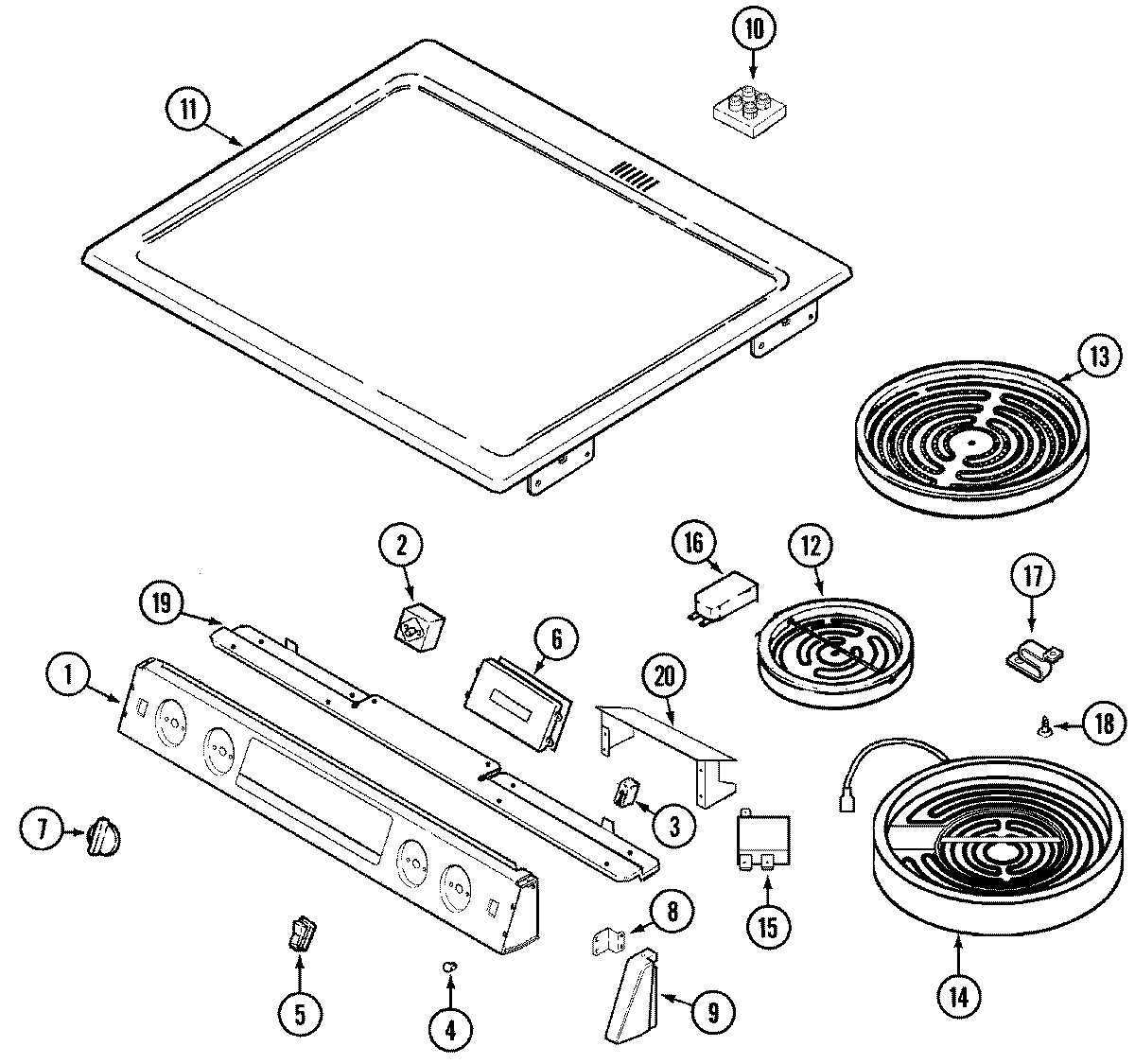

MES5770AAB 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74004336
2	WP7403P239-60 Whirlpool Oven Switch
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	SCREW
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 7403P102-60
6	MAY 74009306
6	MAY 74007369
6	MAY 74004332
7	KNOB (BLK)
8	MAY 74005671
8	MAY 74004186
8	SCREW
9	MAY 74004813
9	MAY 74004596
9	MAY 74004321
9	MAY 74004595
9	MAY 74004816
9	MAY 74004322
10	MAY 74009458
10	MAY 74004181
11	MAY 74004342
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
13	W10823707 Whirlpool Range Radiant Surface Element 8"
13	MAY 74008569
13	W10823697 Whirlpool Surface Element
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
14	W10823703 Whirlpool Surface Element
15	MAY 74002667
16	MAY 74002652
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
20	MAY 74004316
