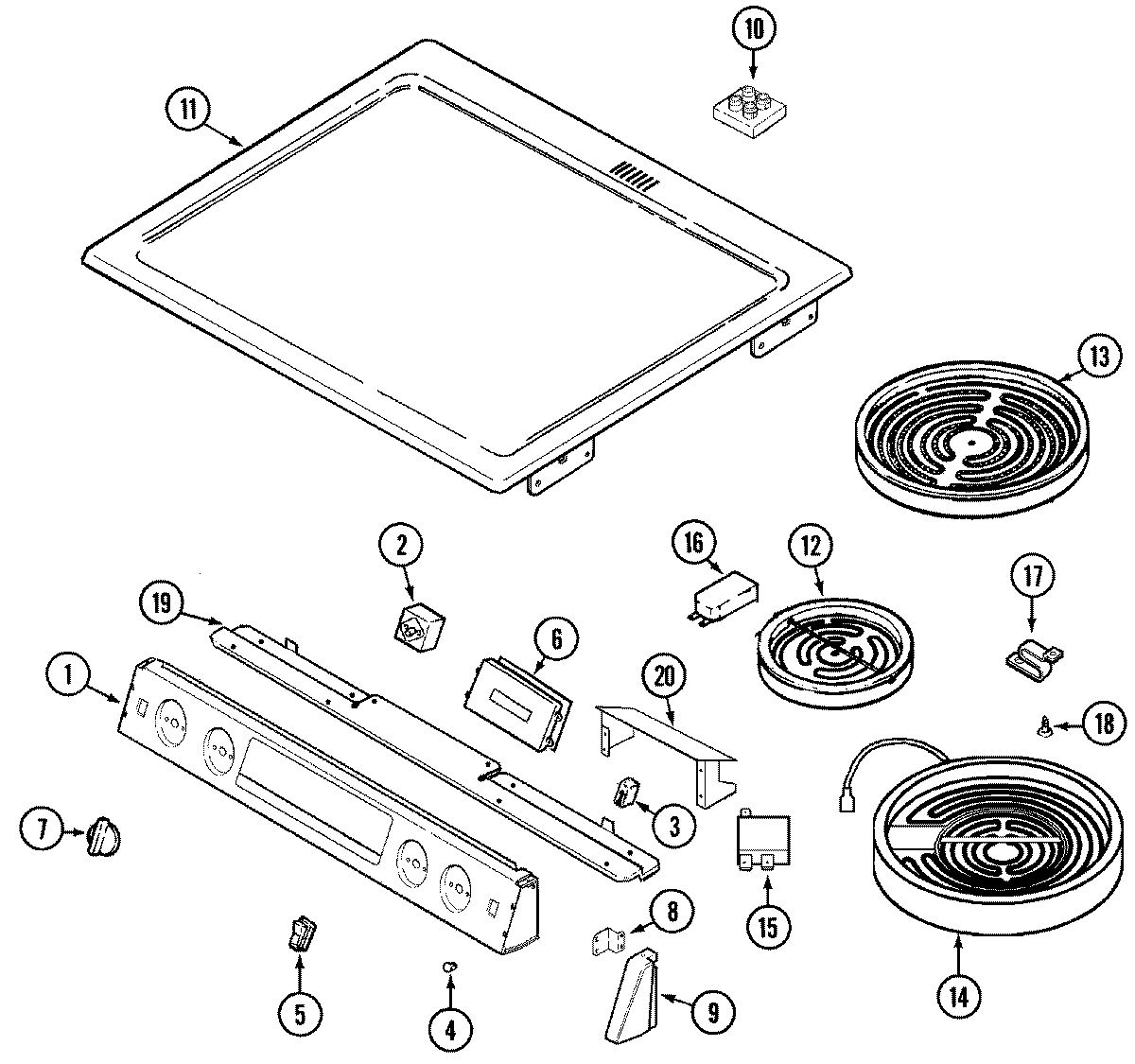

MES5770AAC 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74006308
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 7403P102-60
6	MAY 74004332
6	MAY 74009306
6	MAY 74007369
7	KNOB (BLK)
8	SCREW
8	MAY 74005671
9	MAY 74004816
9	MAY 74004813
10	MAY 74009458
10	MAY 74004181
11	MAY 74006307
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
13	MAY 74008569
13	W10823697 Whirlpool Surface Element
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
20	MAY 74004316
