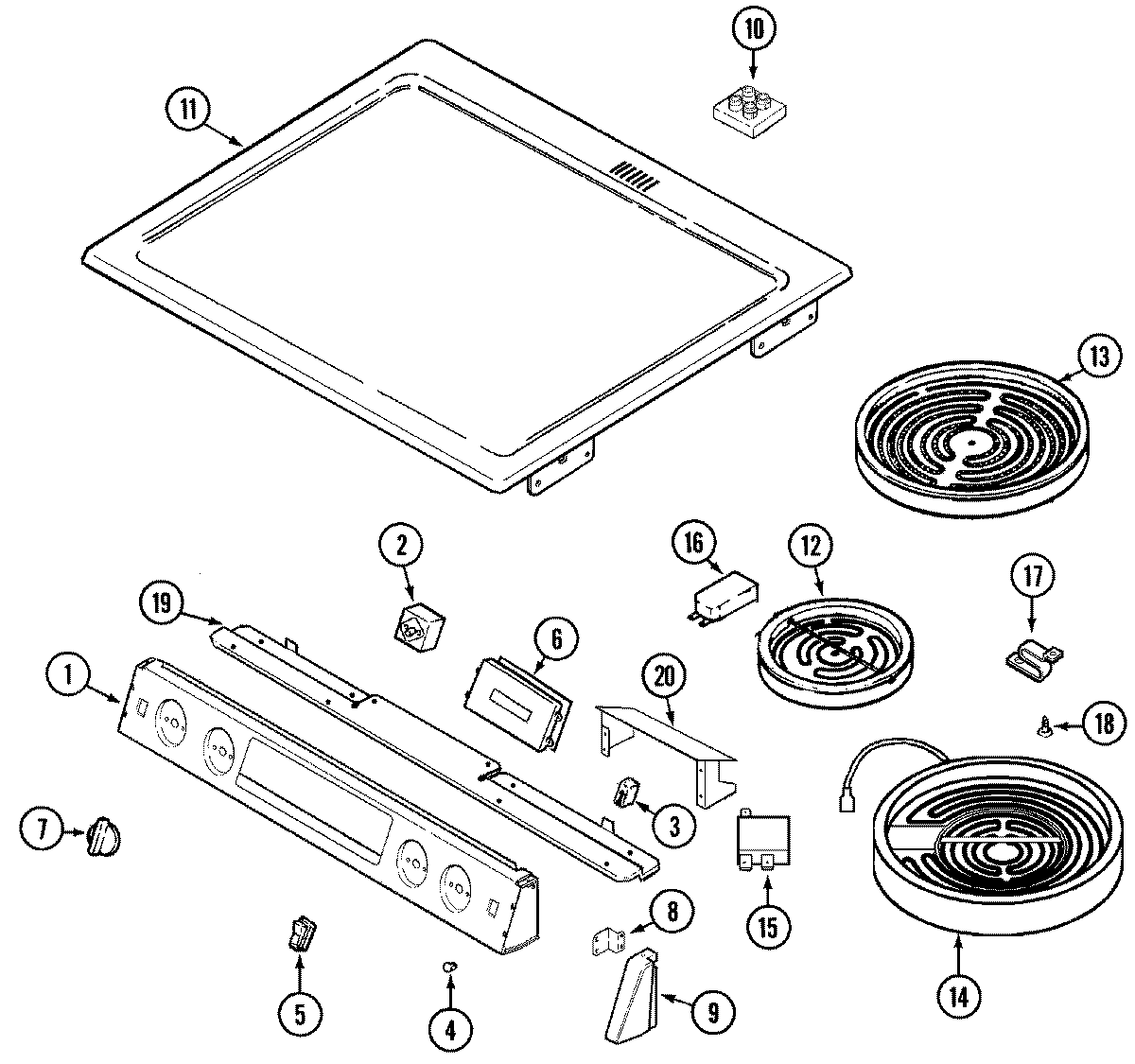

MES5770AAQ 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74005156
2	WP7403P239-60 Whirlpool Oven Switch
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 74005155
6	MAY 74007369
6	MAY 74009308
6	MAY 74005163
7	MAY 74005143
8	MAY 74004186
8	SCREW
8	MAY 74005671
9	MAY 74005013
9	MAY 74005014
10	MAY 74004181
10	MAY 74009458
11	MAY 74005159
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13	W10823697 Whirlpool Surface Element
13	W10823707 Whirlpool Range Radiant Surface Element 8"
13	MAY 74008569
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
20	MAY 74004316
