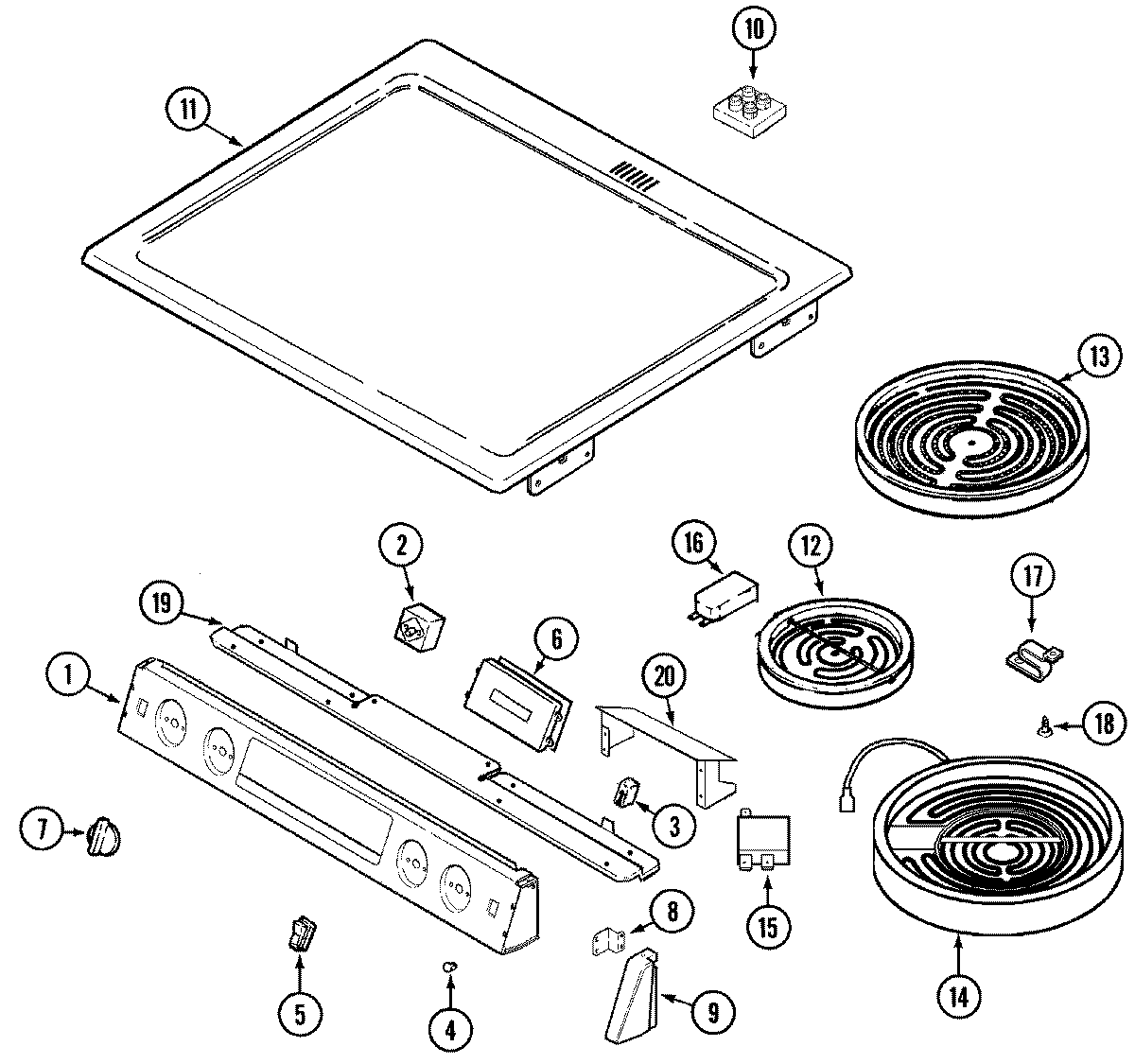

MES5770AAW 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74004328
2	SCREW
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 7403P200-60
6	MAY 74007369
6	MAY 74004329
6	MAY 74009307
7	WP74003611 Whirlpool Oven White Knob
8	MAY 74005671
8	SCREW
8	MAY 74004186
9	MAY 74004319
9	MAY 74004320
9	MAY 74004597
9	MAY 74004598
9	MAY 74004814
9	MAY 74004817
10	MAY 74009458
10	MAY 74004181
11	MAY 74004343
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
13	W10823697 Whirlpool Surface Element
13	MAY 74008569
13	W10823707 Whirlpool Range Radiant Surface Element 8"
14	W10823703 Whirlpool Surface Element
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
15	MAY 74002667
16	MAY 74002652
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
20	MAY 74004316
