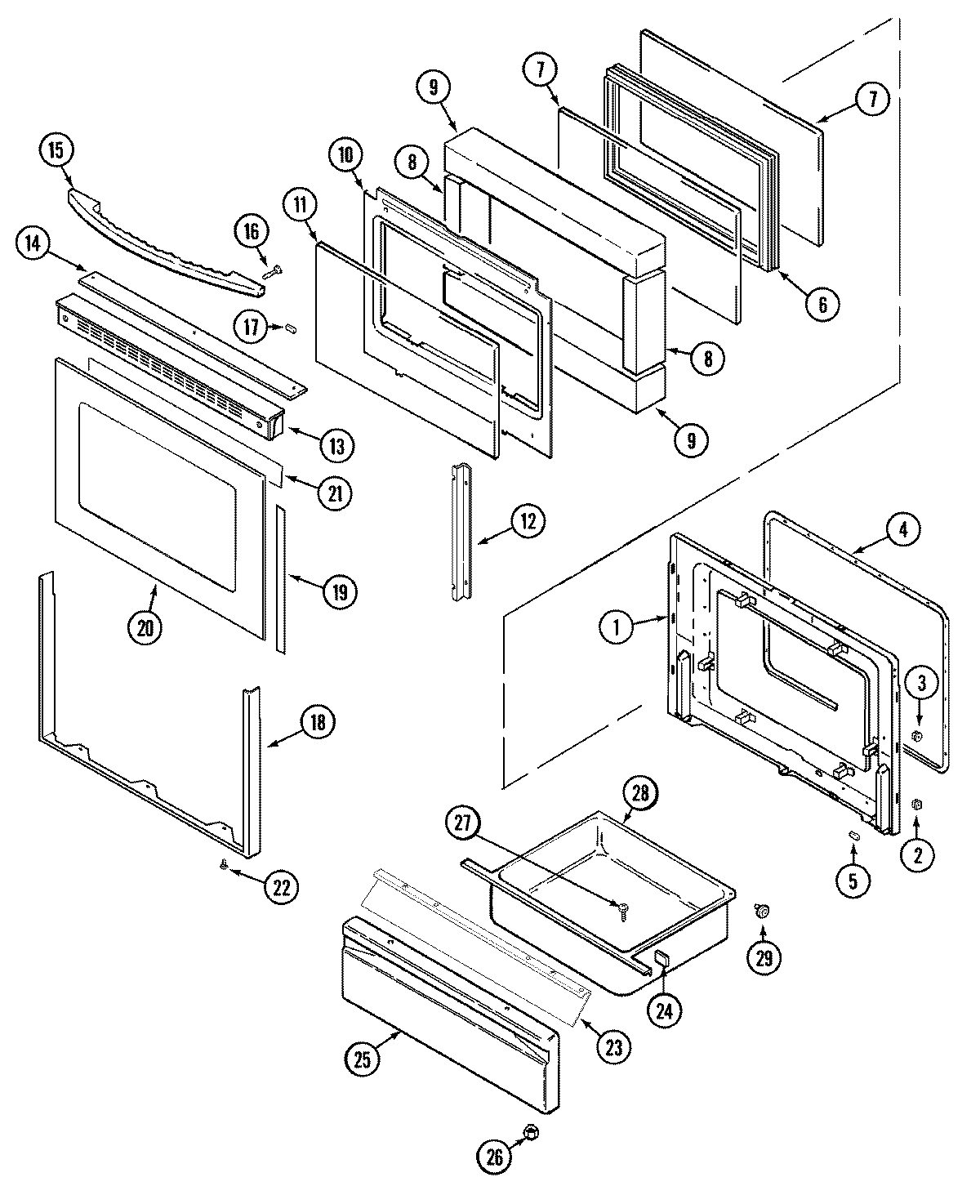

MES5770ACB 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	WP74003652 Whirlpool Door Trim
15	MAY 74003617
16	WP400021-1 Whirlpool Screw
17	MAY 71002092
18	MAY 74004324
18	WP98008545 Whirlpool Screw
19	MAY 74003660
20	MAY 74003662
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	LINING, DRAWER PANEL
24	MAY 8010P085-60
25	PANEL, DRAWER (BLK)
26	WPW10131078 Whirlpool Nut Assembly
27	WP7101P072-60 Whirlpool Screw
28	MAY 71003042
29	MAY 74004079
29	WP488130 Whirlpool Air Conditioner Nut
29	WP74004078 Whirlpool Door Roller
