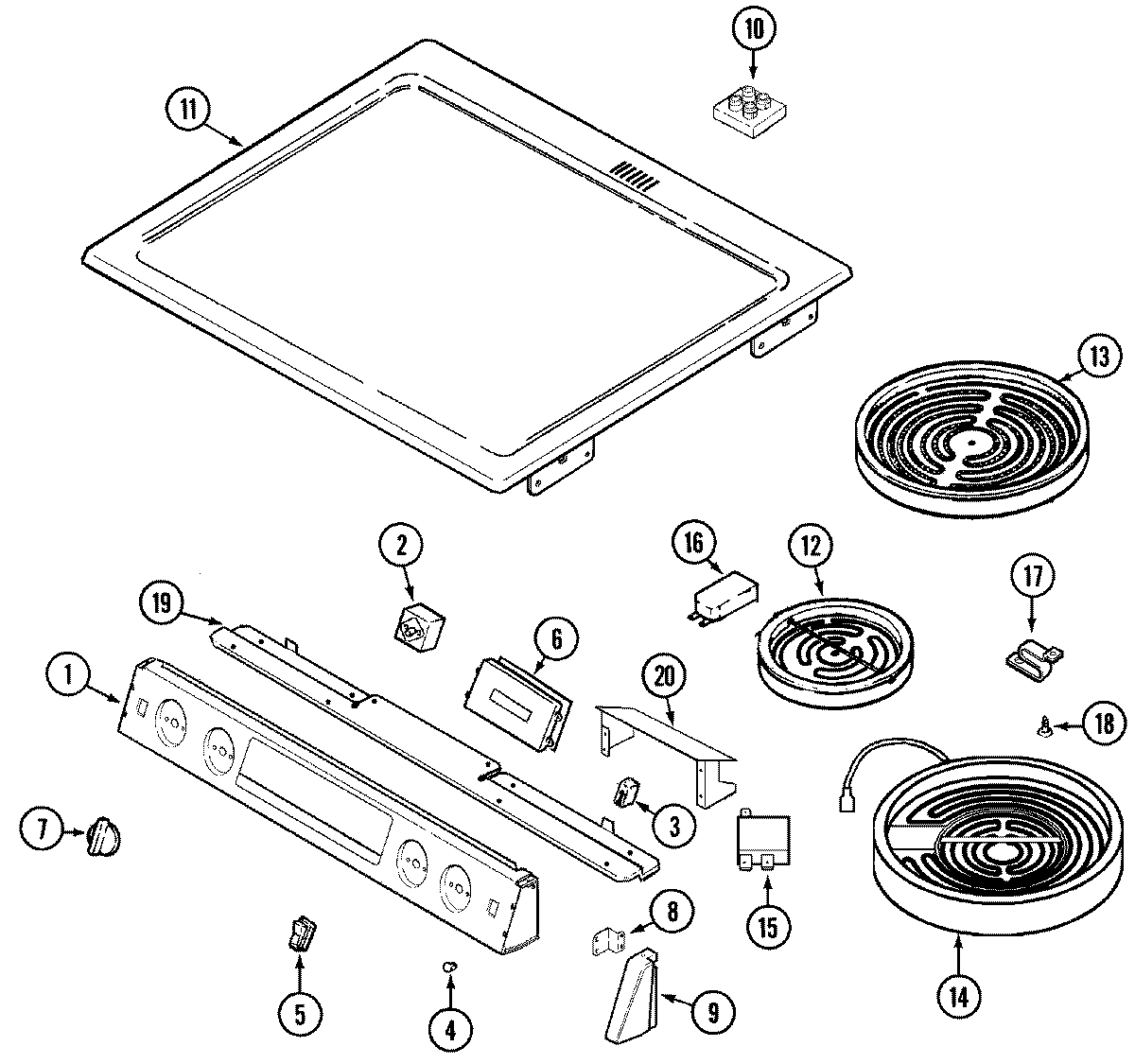

MES5770ACB 04 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74004336
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 7403P102-60
6	MAY 74004781
6	MAY 74007369
7	KNOB (BLK)
8	MAY 74004186
8	MAY 74005671
8	SCREW
9	MAY 74004595
9	MAY 74004814
9	MAY 74004596
9	MAY 74004813
10	MAY 74004181
10	MAY 74009458
11	MAY 74004342
11	WA906B Whirlpool Cooktop Glass Scraper
11	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
13	MAY 74008569
13	W10823707 Whirlpool Range Radiant Surface Element 8"
13	W10823697 Whirlpool Surface Element
14	W10823703 Whirlpool Surface Element
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
15	MAY 74002667
16	MAY 74004494
16	MAY 74002652
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	SCREW (8BX3/8-NI)
19	SUPPORT, MANIFOLD PANEL
20	MAY 74004316
21	MAY 74005674
21	MAY 74004786
21	MAY 74004335
21	MAY 12001323
22	MAY 74004346
22	MAY 74004787
22	MAY 71002782
22	MAY 15002766
