MES5775BAB19 05 – DRAWER AND RACK PARTS

MES5775BAB19 05 – DRAWER AND RACK PARTS

Written by

in

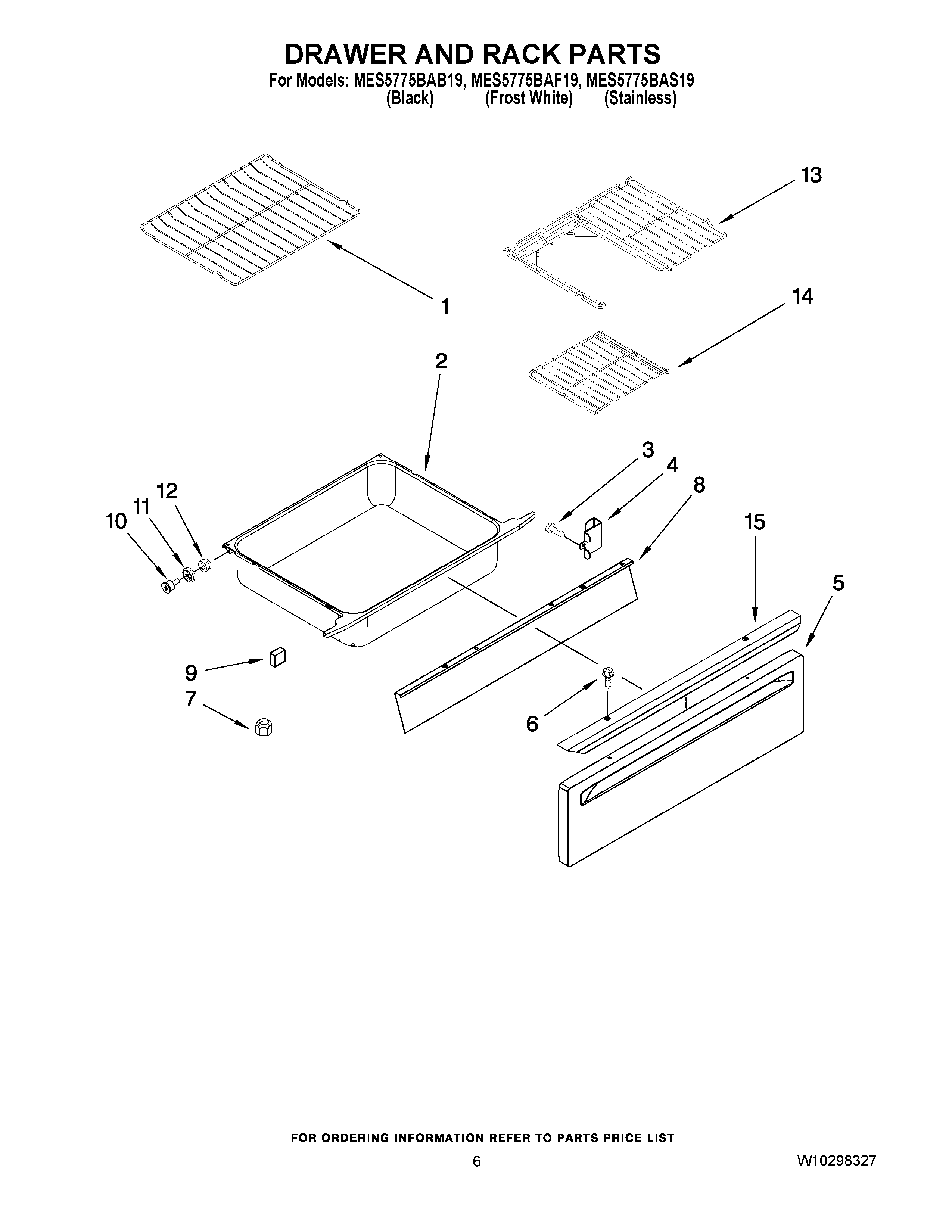

MES5775BAB19 05 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN (2)
2DRAWER, STORAGE
4MAY 3801F887-51
5PANEL, DRAWER (WHITE)
5PANEL, DRAWER (BLACK)
5PANEL, DRAWER (STAINLESS)
6WP7101P072-60 Whirlpool Screw
7WPW10131078 Whirlpool Nut Assembly
8LINING, DRAWER PANEL
9MAY 8010P130-60
10MAY W10272883
11MAY 7118P032-60
12WP488130 Whirlpool Air Conditioner Nut
13MAY W10273862
14RACK, OVEN HALF (INSERT)
15HANDLE, DRAWER
