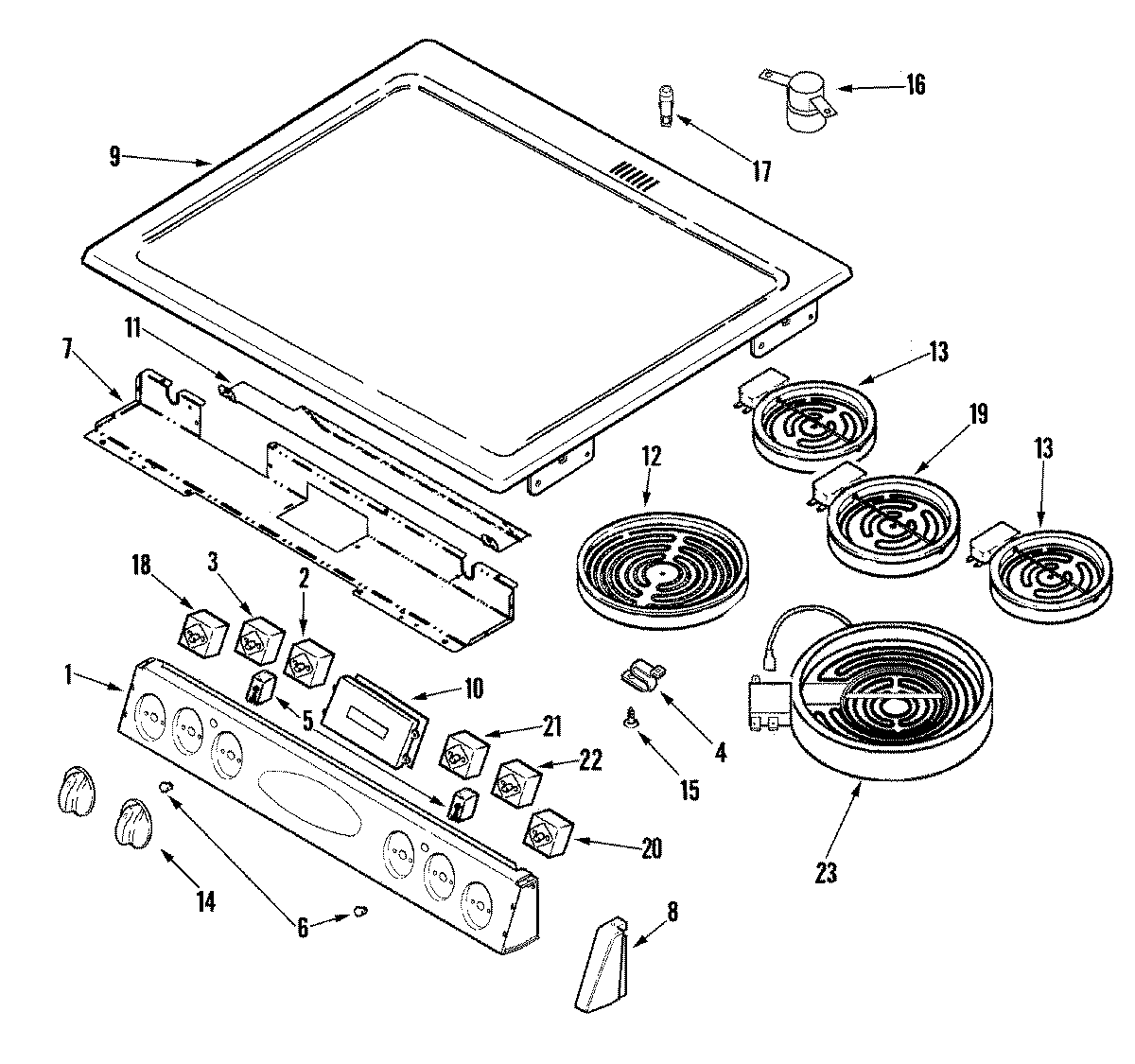

MES5775BAF 02 – CONTROL PANEL/TOP ASY

MES5775BAF 02 – CONTROL PANEL/TOP ASY

Written by

in

MES5775BAF 02 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74011076
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3SWITCH-ELMNT
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7MAY 74010826
8CAP, END (WHT-LT)
8CAP, END (WHT-RT)
9MAY 74010663
10MAY 74010676
11SHIELD, CONTROL
12W10823692 Whirlpool Dual Radiant Element
13W10823711 Whirlpool Surface Element Left Front and Right Rear
1474008950 Whirlpool Knob White/Chrome
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
177407P193-60 Whirlpool Light Indicator
18MAY 74010825
19MAY 74008898
20WP7403P255-60 Whirlpool Selector Switch
21WP74008940 Whirlpool Infinite Switch
2274011070 Whirlpool Infinite Switch
23W10823719 Whirlpool Radiant Surface Element
