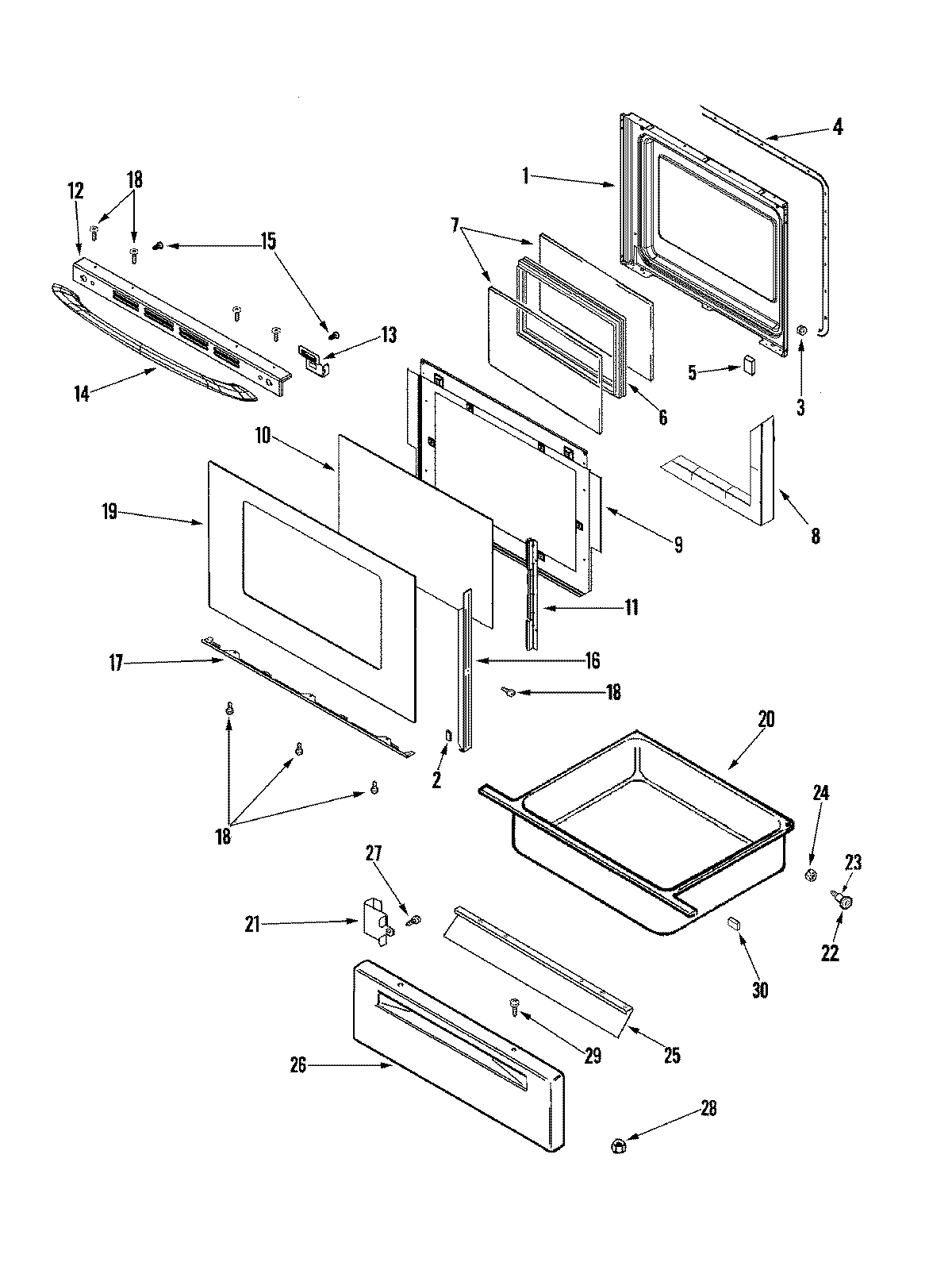

MES5775BAF 03 – DOOR/DRAWER

MES5775BAF 03 – DOOR/DRAWER

Written by

in

MES5775BAF 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2WP74004224 Whirlpool Tape
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74009502
10MAY 74004857
11MAY 74003650
12WP3608F141-71 Whirlpool Door Trim
133801F832-45 Whirlpool Bracket
133801F831-45 Whirlpool Bracket Assembly
14WP74011768 Whirlpool Door Handle
15WP74006515 Whirlpool Washer Screw
16MAY 12002358
17WP3807F708-71 Whirlpool Support
19MAY 12002396
20DRAWER, STORAGE
21MAY 74010896
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25LINING, DRAWER PANEL
26PANEL, DRAWER (WHT)
27SCREW
2874005230 Whirlpool Oven Lock Nut (8-32)
29WP98008544 Whirlpool Screw Assembly
30WP74005546 Whirlpool RU Spacer
