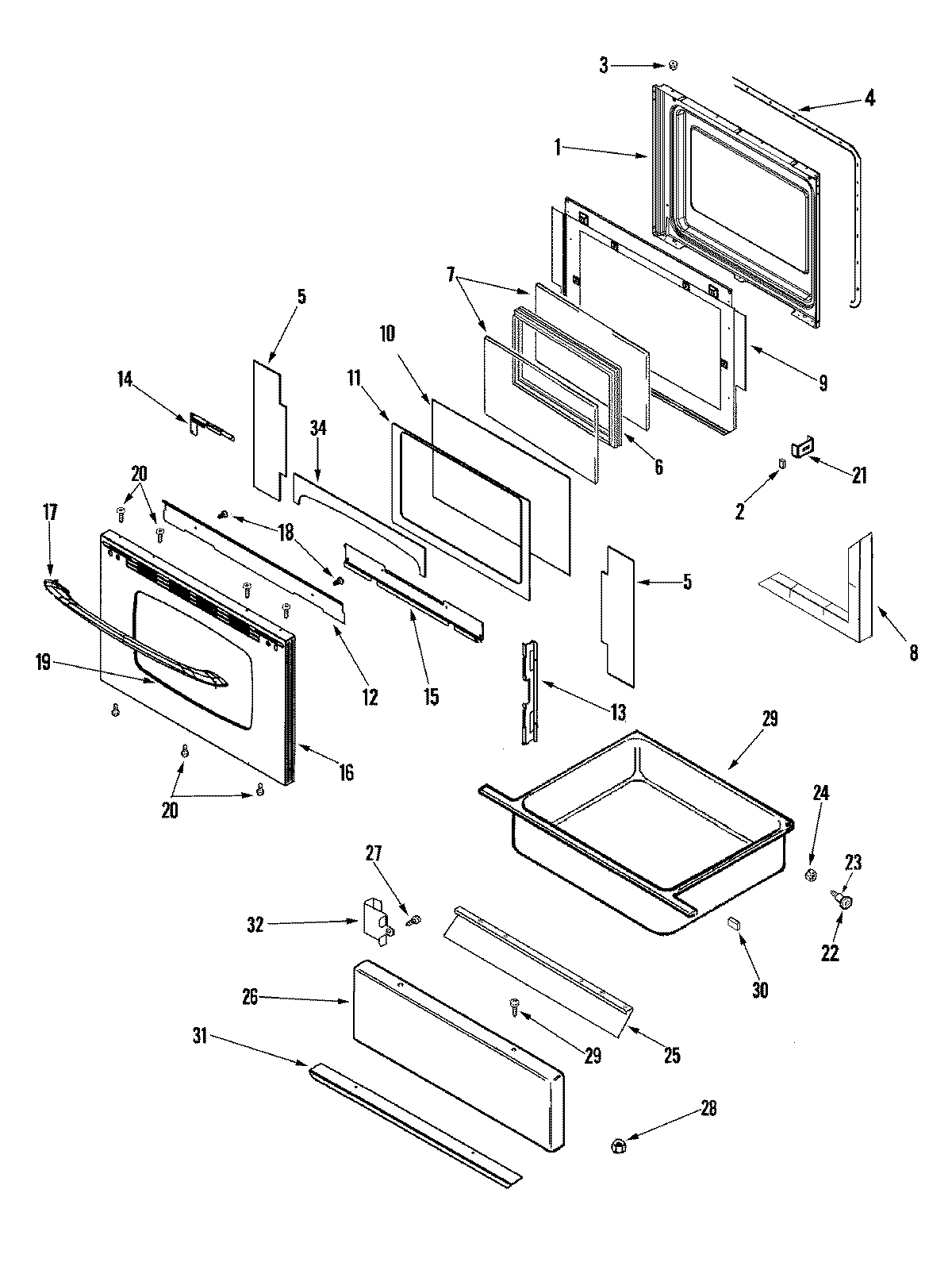

MES5775BAS 03 – DOOR/DRAWER (STL)admin2025-04-26T08:55:38+00:00MES5775BAS 03 – DOOR/DRAWER (STL)
Products
| Position | Product |
|---|
| 1 | MAY 74003642 |
| 2 | WP74004224 Whirlpool Tape |
| 3 | NUT, SNAP (ROUND-BLK) |
| 4 | GASKT-DOOR OVEN |
| 5 | INSULATION, FOIL |
| 6 | FRAME, GLASS |
| 7 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 8 | INSULATION, OVEN DOOR |
| 9 | MAY 74009502 |
| 10 | GLASS, DOOR (INNER/COATED) |
| 11 | MAY 74010042 |
| 12 | MAY 74011049 |
| 13 | RETAINER, GLASS SUPPORT |
| 14 | MAY 74011052 |
| 14 | MAY 74011051 |
| 15 | MAY 74007215 |
| 16 | MAY 74010232 |
| 17 | WP7701P526-60 Whirlpool Door Handle |
| 18 | WP74006515 Whirlpool Washer Screw |
| 19 | WP74009029 Whirlpool Door Gasket |
| 21 | CLIP, DOOR |
| 22 | WP74004078 Whirlpool Door Roller |
| 23 | SHAFT, STORAGE DRAWER ROLLER |
| 24 | WP488130 Whirlpool Air Conditioner Nut |
| 25 | LINING, DRAWER PANEL |
| 26 | MAY 74009840 |
| 27 | SCREW |
| 28 | WPW10131078 Whirlpool Nut Assembly |
| 29 | DRAWER, STORAGE |
| 30 | WP74005546 Whirlpool RU Spacer |
| 31 | HANDLE, DRAWER (STL) |
| 33 | MAY 74010896 |
| 34 | MAY 74008859 |
