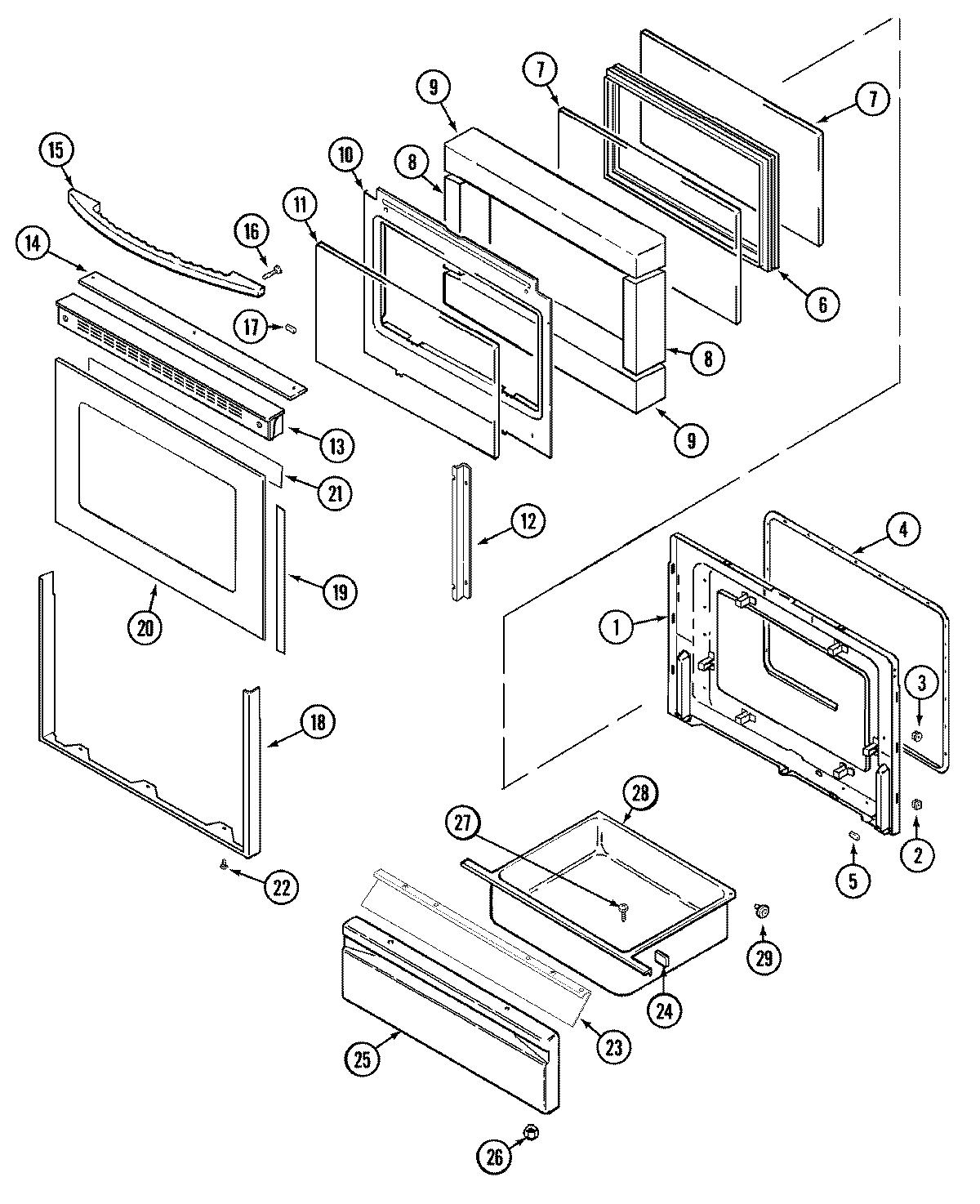

MES5870AAA 02 – DOOR/DRAWER

MES5870AAA 02 – DOOR/DRAWER

Written by

in

MES5870AAA 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74003651
14MAY 7728P095-60
14MAY 7101P370-60
15MAY 74003619
16WP400021-1 Whirlpool Screw
17MAY 71002092
18MAY 74004323
18WP74009541 Whirlpool Screw Assembly
19WP74004224 Whirlpool Tape
20MAY 74003672
21TAPE, FOIL 29“ X 2“
22SCREW
23LINING, DRAWER PANEL
24MAY 8010P085-60
25MAY 74003522
26WPW10131078 Whirlpool Nut Assembly
27WP7101P072-60 Whirlpool Screw
28MAY 71003042
29WP488130 Whirlpool Air Conditioner Nut
29MAY 74003566
