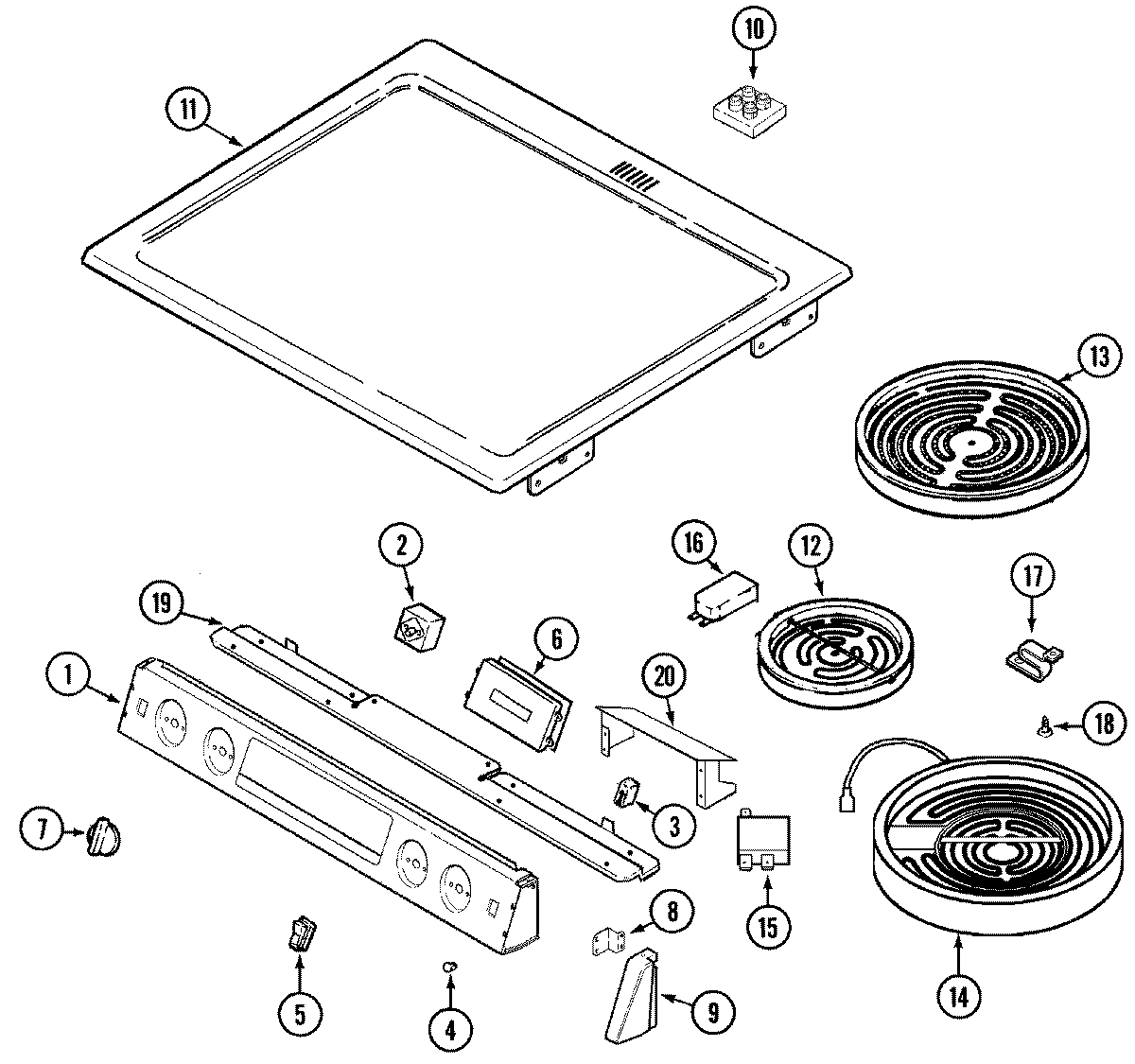

MES5870AAA 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74004339
2	SCREW
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 7403P358-60
6	MAY 74007369
6	MAY 74004350
7	MAY 74003613
8	MAY 74004186
8	SCREW
9	MAY 74004599
9	MAY 74004318
9	MAY 74004818
9	MAY 74004317
9	MAY 74004815
9	MAY 74004600
10	MAY 74004181
11	MAY 74004344
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13	W10823707 Whirlpool Range Radiant Surface Element 8"
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
14	W10823703 Whirlpool Surface Element
15	MAY 74002667
16	MAY 74004494
16	MAY 74002652
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
20	MAY 74004316
