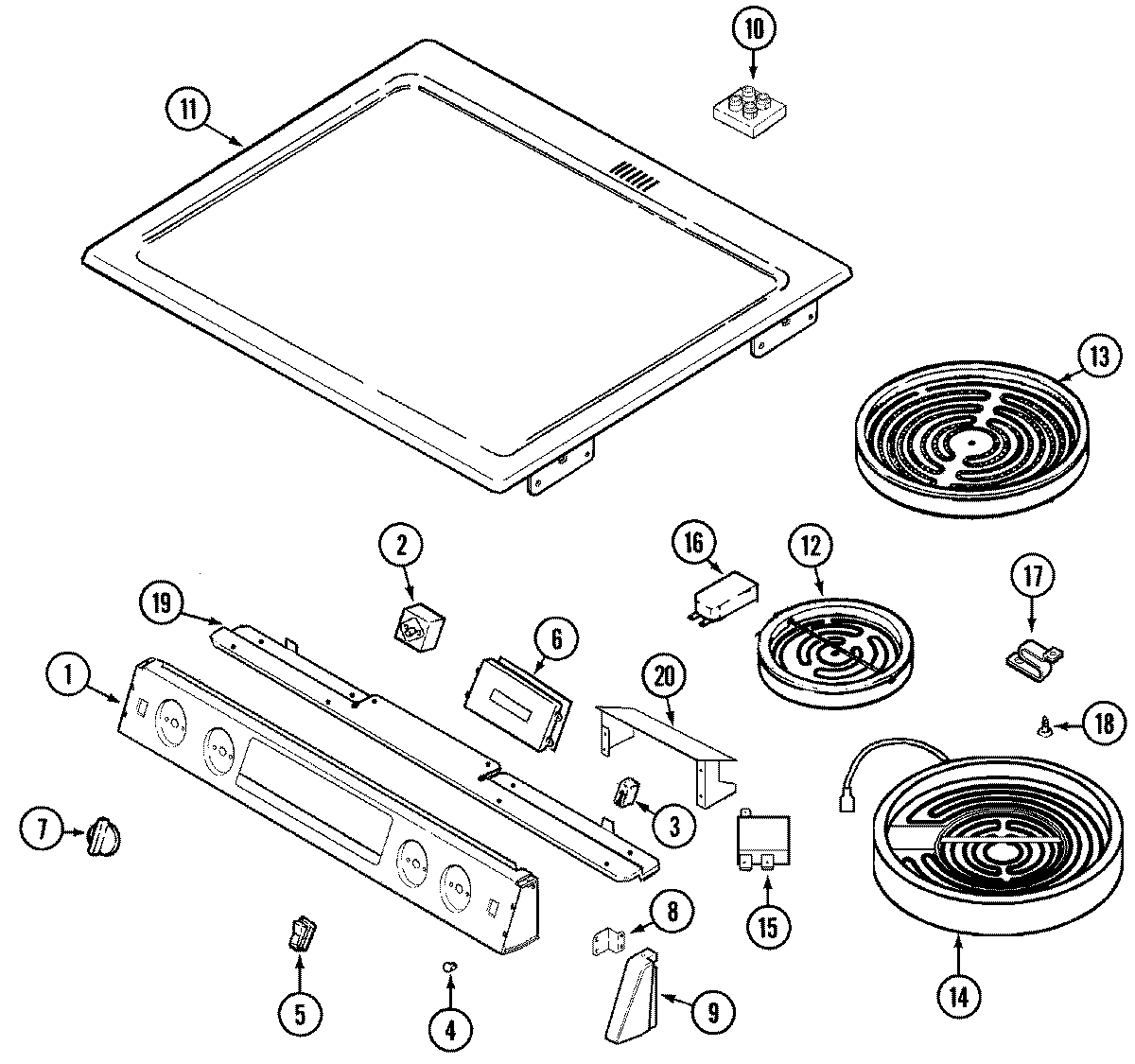

MES5870AAQ 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74005156
2WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2SCREW
2WP7403P239-60 Whirlpool Oven Switch
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP74004153 Whirlpool Indicator Light
4WP7730P011-60 Whirlpool Indicator Lens
5MAY 74005155
6MAY 74009312
6MAY 74007369
6MAY 74005158
7MAY 74005143
8MAY 74004186
8SCREW
8MAY 74005671
9MAY 74005014
9MAY 74005013
10MAY 74009458
10MAY 74004181
11MAY 74005159
11WA906B Whirlpool Cooktop Glass Scraper
12W10823711 Whirlpool Surface Element Left Front and Right Rear
12W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13W10823697 Whirlpool Surface Element
13W10823707 Whirlpool Range Radiant Surface Element 8"
14W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
16MAY 74004494
178004P093-60 Whirlpool Support C
18SCREW (6ABX.25-ZN)
19MAY 74004185
19SCREW (8BX3/8-NI)
20MAY 74004316
