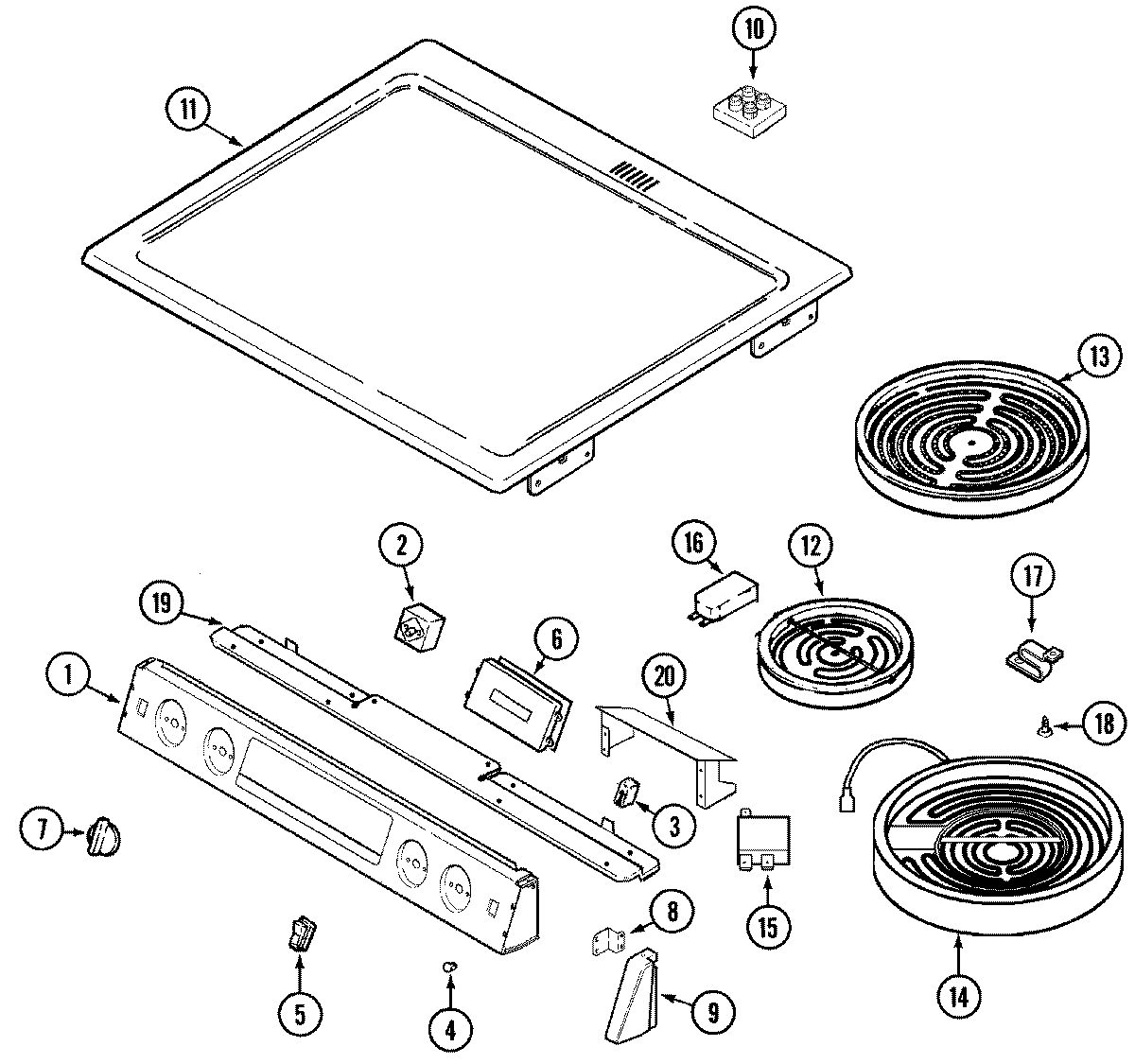

MES5870AAW 05 – TOP ASSEMBLY

MES5870AAW 05 – TOP ASSEMBLY

Written by

in

MES5870AAW 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74004328
2SCREW
2WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2WP7403P239-60 Whirlpool Oven Switch
3WP74004153 Whirlpool Indicator Light
4WP7730P011-60 Whirlpool Indicator Lens
5MAY 7403P200-60
6MAY 74007369
6MAY 74004353
6MAY 74009313
7WP74003611 Whirlpool Oven White Knob
8MAY 74005671
8SCREW
8MAY 74004186
9MAY 74004817
9MAY 74004814
9MAY 74004598
9MAY 74004319
9MAY 74004320
9MAY 74004597
10MAY 74009458
10MAY 74004181
11WA906B Whirlpool Cooktop Glass Scraper
11MAY 74004343
12W10823711 Whirlpool Surface Element Left Front and Right Rear
12W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13W10823697 Whirlpool Surface Element
13W10823707 Whirlpool Range Radiant Surface Element 8"
14W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
14W10823703 Whirlpool Surface Element
15MAY 74002667
16MAY 74002652
16MAY 74004494
178004P093-60 Whirlpool Support C
18SCREW (6ABX.25-ZN)
19MAY 74004185
19SCREW (8BX3/8-NI)
20MAY 74004316
