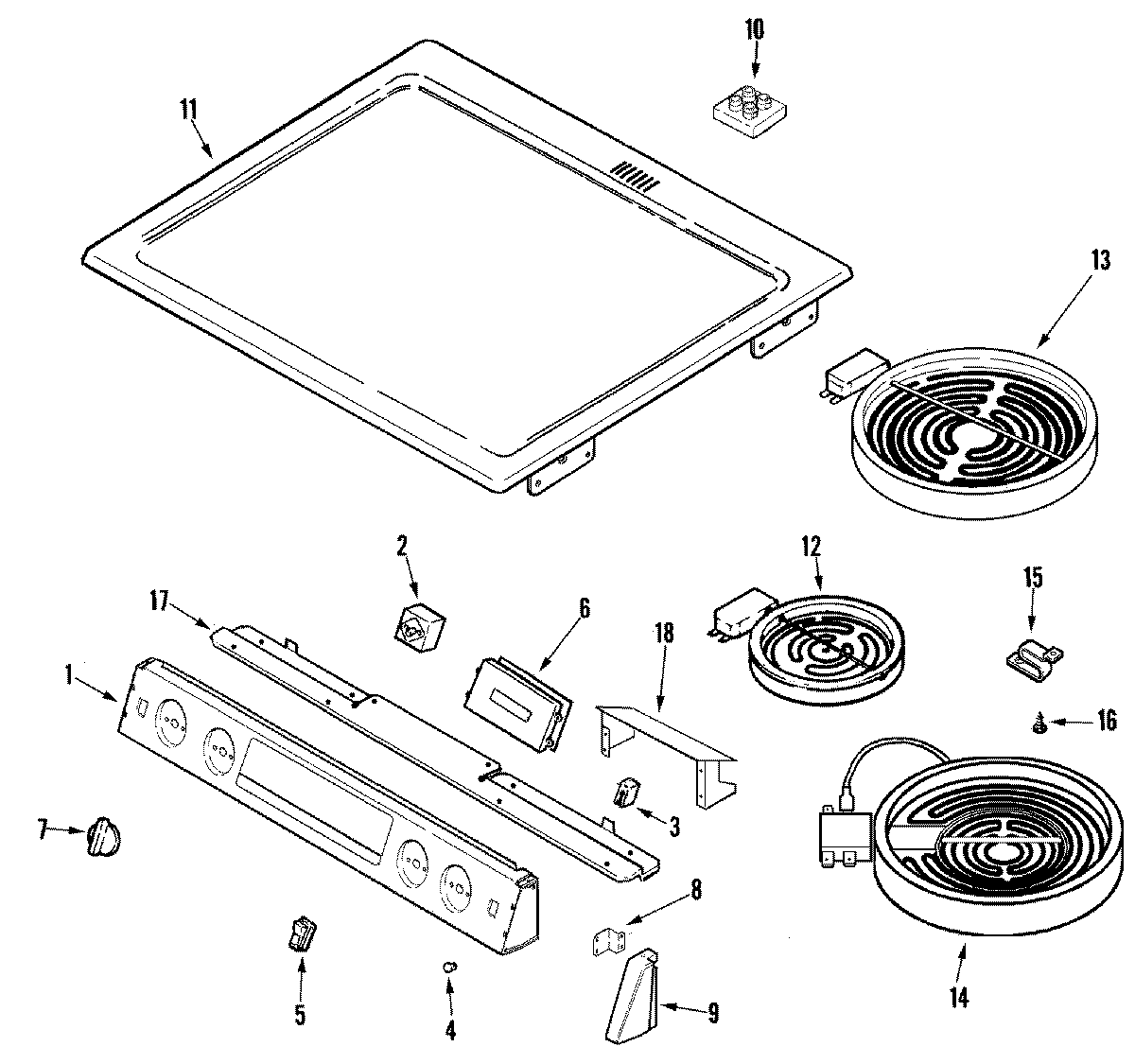

MES5870ACB 02 – CONTROL PANEL/TOP ASSEMBLY

MES5870ACB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MES5870ACB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74004336
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2WP7403P239-60 Whirlpool Oven Switch
2SCREW
2WP74003122 Whirlpool Infinite Switch Assembly (Dual)
3WP74004153 Whirlpool Indicator Light
4WP7730P011-60 Whirlpool Indicator Lens
5MAY 7403P102-60
6MAY 74007369
6MAY 74007497
7KNOB (BLK)
8MAY 74005671
9MAY 74004813
9MAY 74004816
9SCREW
10MAY 74004181
10MAY 74009458
11MAY 74004342
12W10823711 Whirlpool Surface Element Left Front and Right Rear
13W10823697 Whirlpool Surface Element
13MAY 74008569
14W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
158004P093-60 Whirlpool Support C
16SCREW (6ABX.25-ZN)
17SUPPORT, MANIFOLD PANEL
17SCREW (8BX3/8-NI)
18MAY 74004316
18MAY 7101P147-60
