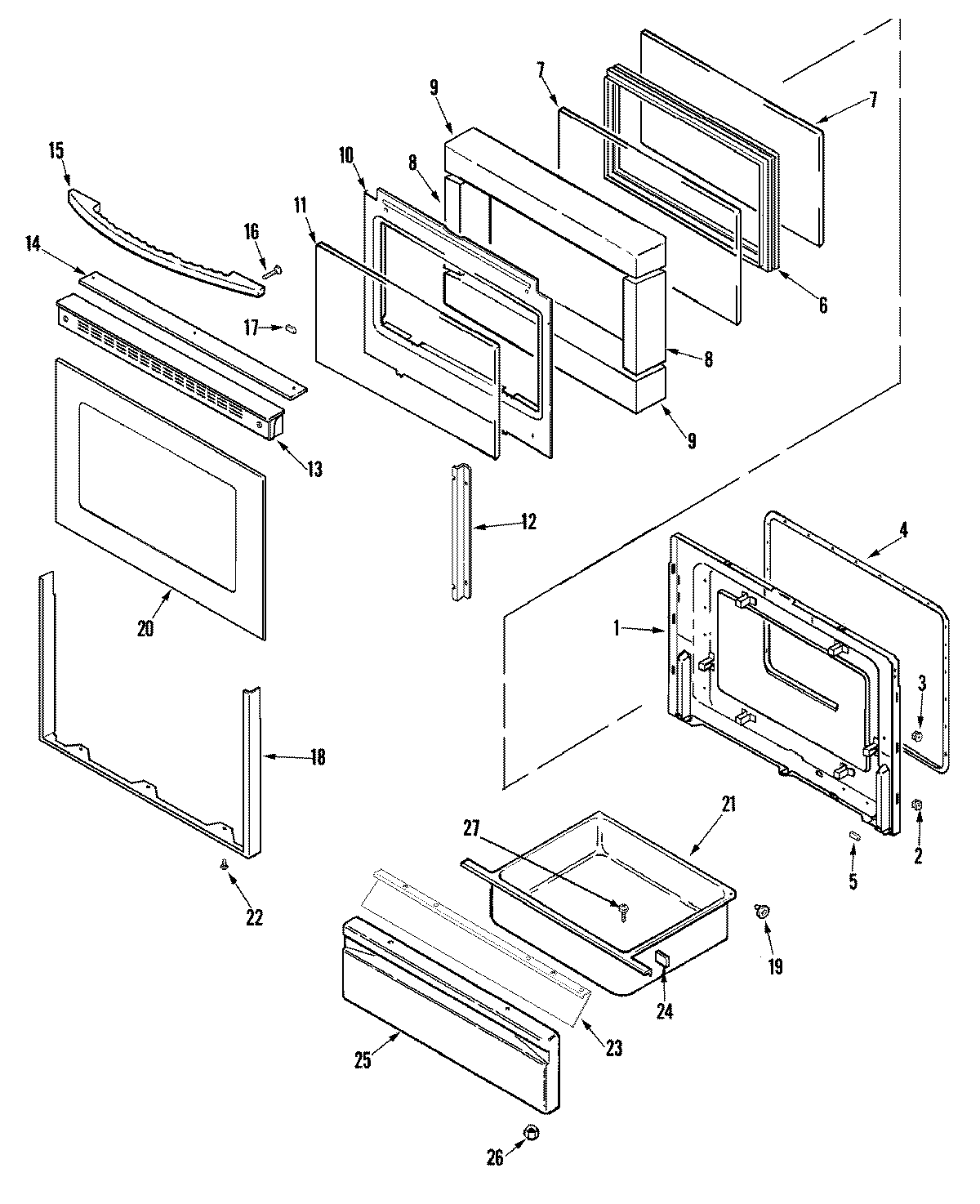

MES5870ACB 03 – DOOR/DRAWER

MES5870ACB 03 – DOOR/DRAWER

Written by

in

MES5870ACB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74004857
12MAY 74003650
13WP74003652 Whirlpool Door Trim
15MAY 74003617
16MAY 74006515
17MAY 71002092
18SCREW (8ABX1/2“-BLK)
18MAY 74004324
19MAY 74003566
19WP488130 Whirlpool Air Conditioner Nut
20MAY 74004852
21MAY 71003042
22SCREW
23LINING, DRAWER PANEL
24WP74005546 Whirlpool RU Spacer
25PANEL, DRAWER (BLK)
26WPW10131078 Whirlpool Nut Assembly
27WP7101P072-60 Whirlpool Screw
