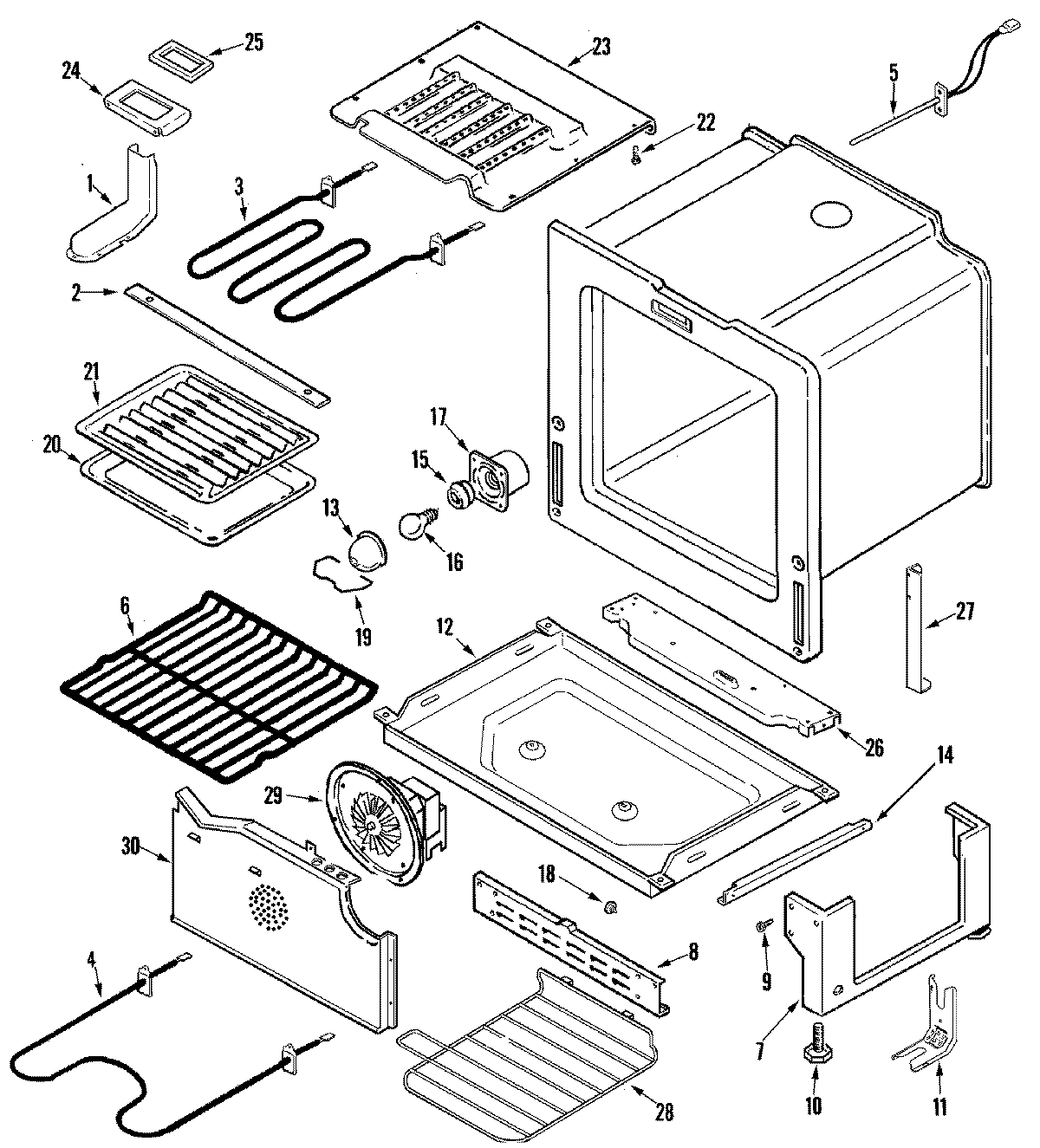

MES5870ACB 04 – OVEN/BASE

MES5870ACB 04 – OVEN/BASE

Written by

in

MES5870ACB 04 – OVEN/BASE

Products

PositionProduct
1MAY 74004170
2MAY 74003563
2WP400021-1 Whirlpool Screw
3WP7406P218-60 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74005772
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
13MAY 74003389
14RUNNER, DRAWER
15MAY 74003387
16RANGE ONLY 40W 120V APPL BULB
17MAY 74003388
1874005230 Whirlpool Oven Lock Nut (8-32)
18WP74004078 Whirlpool Door Roller
18SHAFT, STORAGE DRAWER ROLLER
19MAY 74003391
20MAY Y3401F02019
21MAY Y3413F01619
23MAY 3601F237-47
24MAY 74004178
25MAY 74004179
26SUPPORT, VALVE REGULATOR
27SCREW
27MAY 74004780
28MAY 74007263
29MAY 74005677
30COVER, CONVECT
