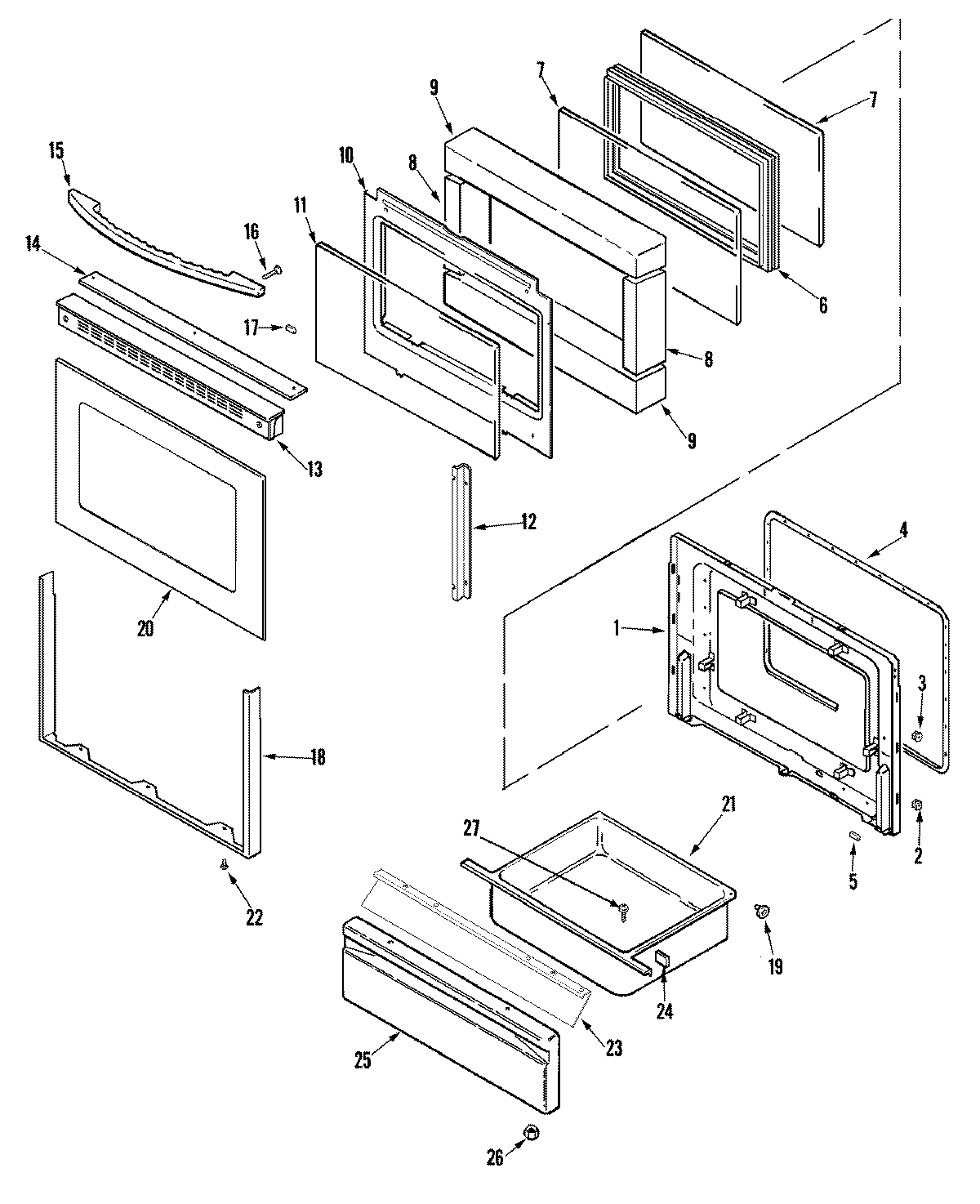

MES5870ACW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 8010P085-60
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	MAY 74004857
12	MAY 74003650
13	WP74003653 Whirlpool Door Trim
14	MAY 74001278
14	MAY 7728P094-60
15	MAY 74003620
16	MAY 74006515
17	MAY 71002092
18	WP98008544 Whirlpool Screw Assembly
18	MAY 74004325
19	MAY 74003566
19	WP488130 Whirlpool Air Conditioner Nut
20	MAY 74004855
21	MAY 71003042
22	SCREW
23	LINING, DRAWER PANEL
24	WP74005546 Whirlpool RU Spacer
25	PANEL, DRAWER (WHT)
26	WPW10131078 Whirlpool Nut Assembly
27	WP7101P072-60 Whirlpool Screw
