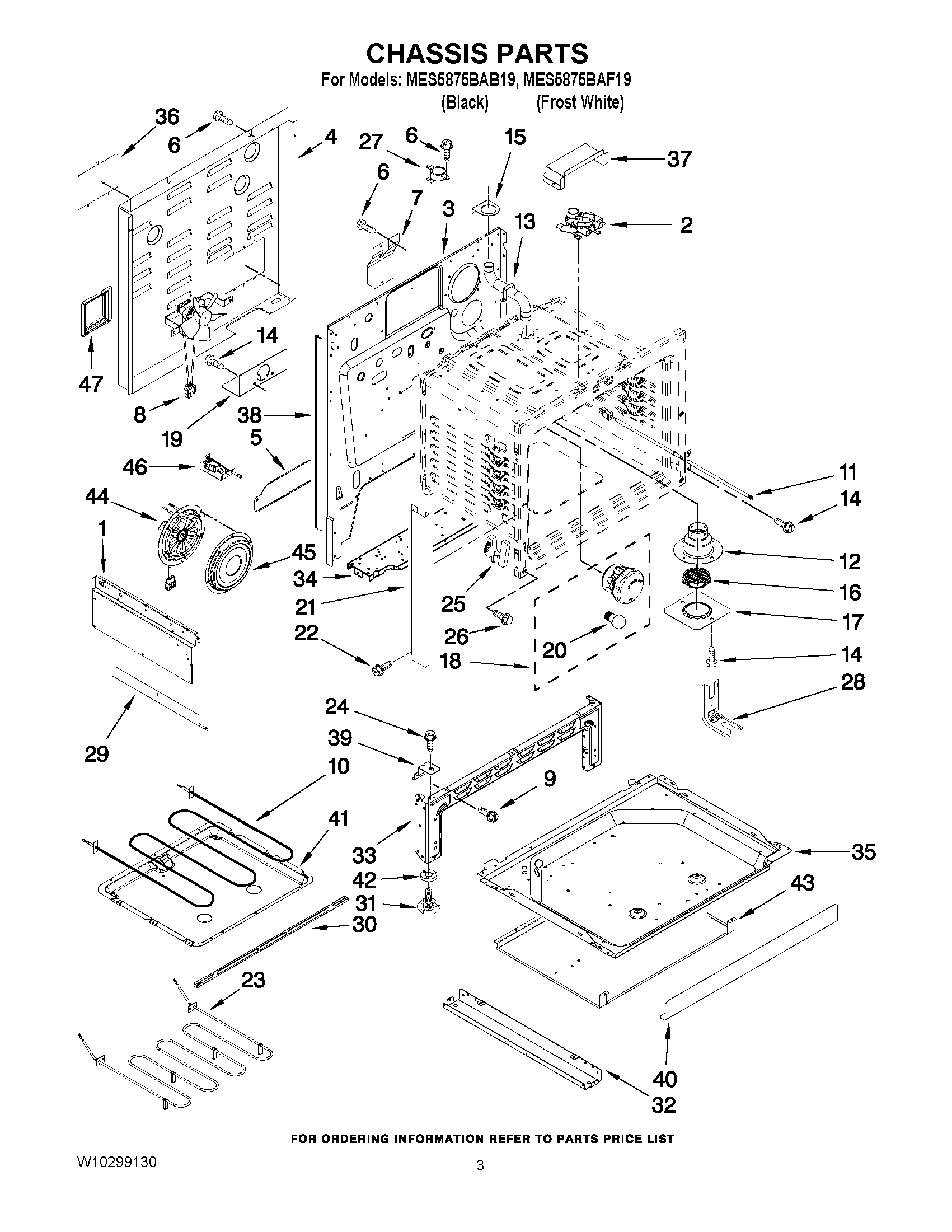

MES5875BAB19 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P445-60
NI	MAY 7002P471-60
NI	INSULATION, HIDDEN BAKE COVER
1	MAY 2618F206-51
1	MAY 2618F201-51
2	MAY 8002P089-60
3	BACK, MAIN
4	COVER, MAIN WIRE
5	MAY 3826F066-51
7	MAY 7003P101-60
8	MAY 7427P094-60
10	MAY W10314687
11	MAY 7430P042-60
12	MAY 8026P096-60
13	MAY W10233479
14	MAY 7101P426- 60
15	MAY 3605F345-51
16	SCREEN, SMOKE ELM.
17	MAY 3605F354-45
18	MAY 7407P182-60
19	BRACKET, POWER SUPPLY
20	RANGE ONLY 40W 120V APPL BULB
21	TRIM, SIDE (BLACK (2))
21	MAY 3608F138-71
23	MAY W10314699
24	MAY 7101P434-60
25	MAY 7106P141-60
26	MAY 7101P336-60
27	SWITCH, HI-LIMIT
28	BRACKET, ANTI-TIP
29	MAY 3826F064-51
30	MAY 3807F494-45
31	LEG, LEVELING
32	MAY 4020W035-80
33	PEDESTAL, FRONT
34	SUPPORT
35	MAY 3804F231-51
36	COVER, TERMINAL
37	COVER, DOOR LATCH
38	MAY 2205F060-19
39	SUPPORT, OVEN BTM.
40	MAY 4005F749-45
41	PAN, BAKE
42	NUT, LEVELING LEG
43	SHIELD, WARM. DWR.
44	FAN, CONVECTION
45	COVER, CONV. FAN
46	MAY 7450P108-60
47	INSULATION
