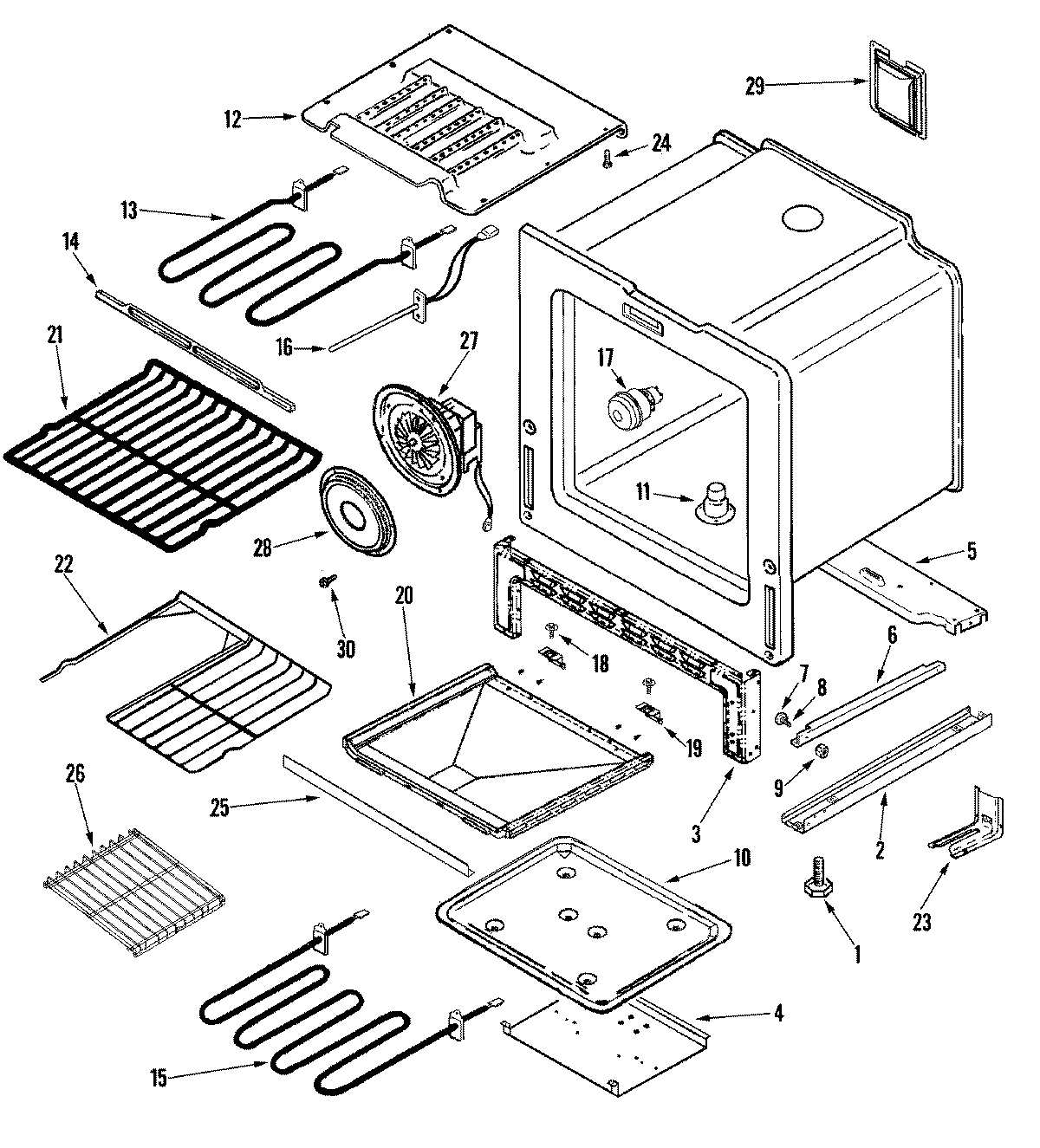

MES5875BCF 04 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	MAY 74006591
5	SUPPORT, VALVE REGULATOR
6	RUNNER, DRAWER
7	WP74004078 Whirlpool Door Roller
8	SHAFT, STORAGE DRAWER ROLLER
9	74005230 Whirlpool Oven Lock Nut (8-32)
10	MAY 74010806
11	PLATE, VENT COVER
11	MAY 74010808
12	MAY 74010810
13	WP7406P218-60 Whirlpool Broil Element
14	MAY 74003563
15	WP7406P411-60 Whirlpool Bake Element
16	12001656 Whirlpool Range Oven Temperature Sensor
17	LAMP ASSEMBLY
19	MAY 74010812
20	MAY 74010853
21	WPW10282492 Whirlpool Oven Rack
22	WPW10273862 Whirlpool Oven Rack
23	WP7101P485-60 Whirlpool Anchor Tip
23	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
24	MAY 74010505
25	MAY 74010807
26	INSERT, HALF RACK 30``
27	FAN ASSEMBLY, CONVECTION
28	COVER, CONVECT FAN
29	MAY 74010814
30	WP74003976 Whirlpool Screw
